User manual for the SmallHD 702 Bright 7" Daylight Viewable Full HD LCD MON-702

The user manual for the SmallHD 702 Bright 7" Daylight Viewable Full HD LCD MON-702 provides necessary instructions for the proper use of the product Professional Video - Monitors - On Camera Monitors.

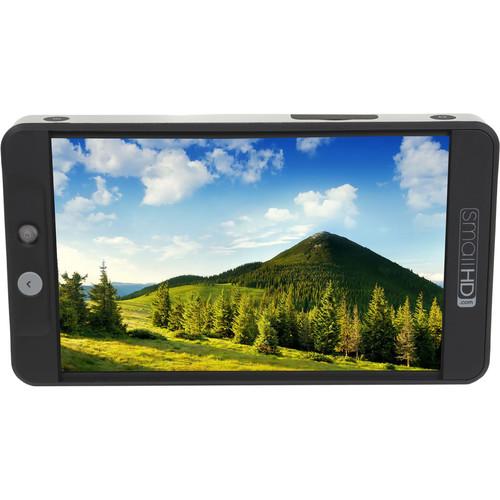

The 702 Bright 7" Daylight Viewable Full HD LCD Field Monitor from SmallHD enables critical focus, exposure, and color evaluation even in broad daylight. The 1000 nits brightness Full HD (1920 x 1080p) display features a pixel density of 323 ppi and a viewing angle of 179°. The monitor works on the Page Builder OS. Using Pages, software tools such as focus assist or exposure scopes can be grouped together for quick retrieval as needed. You can toggle between various Pages utilizing the monitor's joystick and back buttons.
If you own a SmallHD on camera monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the SmallHD 702 Bright 7" Daylight Viewable Full HD LCD MON-702 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the SmallHD 702 Bright 7" Daylight Viewable Full HD LCD MON-702:
Specifications
Display
Panel Type LCD
Diagonal Size 7.0" (17.8 cm)
Resolution 1920 x 1080
Pixel Density 323 ppi
Aspect Ratio 16:10 (native)
Active Area 7.0" (17.8 cm)
Brightness 1000 cd/m2
Contrast 1000:1
Color Gamut 85% NTSC (100% Rec. 709)
Color Depth 24 bit (8 bpc)
Viewing Angle 179°
Backlight Type LED
Input Signal Formats
HD-SDI RGB/YCC 4:2:2 and 4:4:4, 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p25, 1080p24, 1080p23.98, 1080pSF23.98, 1080pSF24, 1080pSF25, 1080pSF29.97, 720p60, 720p59.94, 720p50
HDMI Supports 8/10/12 bit color, 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p25, 1080p24, 1080p23.98, 1080pSF23.98, 1080pSF24, 1080pSF25, 1080pSF30, 720p60, 720p59.94 , 720p50
Audio HDMI and SDI
Output Signals Supported
HD-SDI RGB/YCC 4:2:2 and 4:4:4, 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p25, 1080p24, 1080p23.98, 1080pSF23.98, 1080pSF24, 1080pSF25, 1080pSF29.97, 720p60, 720p59.94, 720p50
HDMI Supports 8/10/12 bit color, 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p25, 1080p24, 1080p23.98, 1080pSF23.98, 1080pSF24, 1080pSF25, 1080pSF30, 720p60, 720p59.94 , 720p50
Audio 1/8" Mini Stereo out (headphones)
Interfaces
Video Input/Output 1 x SDI in
1 x SDI out
1 x HDMI in
1 x HDMI out
Audio 1/8" mini stereo headphone
Power Canon LP-E6 / Sony NPF flexible battery slots for LP-E6 or Sony L Series batteries
USB Micro-USB 5 V @ 0.5 A, for factory use and future user functionality
Storage SD card (full-size)
Controls
Main Controller Joystick + Back button
Record Record/Capture: Capture button
Customization Uses 'Pages' in conjunction with joystick control to provide any number of user-defined monitoring options
External Control Via RF wireless remote (not included)
Power
Voltage 6 to 8.4 VDC
Power Consumption 8 W
Recommended Power Supply: LP-E6 coupler with built-in 7.2 V, 2 A regulator (power supply/battery not included)
Compatible with Canon LP-E6 and/or Sony NPF L Series batteries
Environmental
Compliance CE, FCC, IC
Operating Temperature 30 to 90°F (-1 to 32°C)
Storage Temperature 0 to 120°F (-18 to 49°C)
Mechanical
Durable Screen Protection 1 mm acrylic (user replaceable)
Construction Aluminum frame with rubberized coating
Mounting Threads 4 x 1/4-20 threads (bottom, back & sides)
Dimensions (H x W x D) 4.23 x 7.56 x 0.95" (10.74 x 19.20 x 2.41 cm)
Weight 17 oz (482 g) without batteries
Packaging Info
Package Weight 1.85 lb
Box Dimensions (LxWxH) 9.0 x 6.2 x 2.0"
The user manual for the SmallHD 702 Bright 7" Daylight Viewable Full HD LCD MON-702 can be downloaded in .pdf format if it did not come with your new on camera monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other SmallHD users keep a unique electronic library for SmallHD on camera monitorss, where you can use our link to download the user manual for the SmallHD 702 Bright 7" Daylight Viewable Full HD LCD MON-702.

The user manual lists all of the functions of the SmallHD 702 Bright 7" Daylight Viewable Full HD LCD MON-702, all the basic and advanced features and tells you how to use the on camera monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from SmallHD service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the SmallHD 702 Bright 7" Daylight Viewable Full HD LCD MON-702. User manuals are also available on the SmallHD website under Professional Video - Monitors - On Camera Monitors.
