User manual for the SmallHD DP7-Pro High Bright On-Camera Field MON-DP7-PRO-LCD-HB-X

The user manual for the SmallHD DP7-Pro High Bright On-Camera Field MON-DP7-PRO-LCD-HB-X provides necessary instructions for the proper use of the product Professional Video - Monitors - On Camera Monitors.

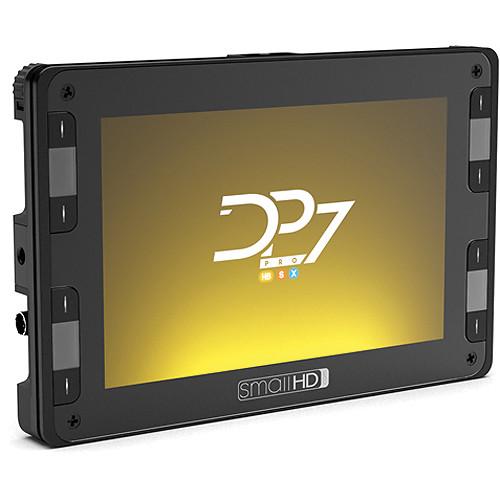

The SmallHD DP7-Pro High Bright is a daylight-viewable DP7-Pro model, featuring a 1500 nit brightness that allows outdoor monitoring even without a sunhood. Like the other DP7-Pro models, it offers highly flexible 3D LUT support and an extensive set of monitoring tools, including scopes, and is designed with a multi hot key interface that allows for an efficient workflow. It features a 7" IPS LCD display with a 1280 x 800 HD resolution, 8-bit color depth, and 800:1 contrast ratio.

Connections include HD-SDI and HDMI input and output, with the inputs simultaneously active, as well as a Hirose input that supports an optional SmallHD Component/Composite breakout cable. The SDI output can be doubled as an input so you can toggle between two live SDI signals. The input signal can be output via either of the outputs or both at the same time. This model also has a discreet SmallHD proprietary X-Port accessory slot on the rear that allows for bulk-free integration with accessories such as the SmallHD Wireless Dock for Paralinx receivers. The monitor is super-tough, made with a reinforced milled aluminum housing capable of withstanding the pressure of a 4x4 truck running over it, yet it weighs only 1.2 lb.

The DP7-Pro High Bright comes loaded with many preset LUTs and is capable of detecting and displaying nearly every type of LUT you upload. The LUTs upload via simple SD card transfer and can be organized into custom folders. The ability to monitor an image with a LUT applied lets you see what the image will look like when the LUT is permanently applied in post production, lets you analyze whether you're satisfied with the look and whether any lighting adjustments need to be made on set, and also allows you to show the look to a client or director on set for review.

The hot key interface consists of 24 hot keys that instantly appear on the screen when you run your hand over proximity sensors located near the front panel buttons. The hot keys are separated eight per desktop page, across three pages, and are controlled by the front panel buttons, of which there are also eight, each corresponding to a hot key. The hot keys are assignable with functions such as toggling LUTs on and off. The monitor also has a scroll wheel on each top corner that both navigates through all the features and hot keys as well as pushes-in to make selections, useful in case you attach a sunshade that blocks access to front panel buttons. The user interface is lockable via a physical switch to prevent interferences during production.

The DP7-Pro High Bright ships with a 1GB SD card for uploading LUTs, a power supply, and microfiber cloth. It supports V-Mount, Gold-Mount, and DV batteries via optional battery plate/bracket combinations. (To attach a battery, you'll need a DP7 Battery Adapter Plate and the battery bracket particular to the battery of your choice. The battery attaches to the battery bracket.)
If you own a SmallHD on camera monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the SmallHD DP7-Pro High Bright On-Camera Field MON-DP7-PRO-LCD-HB-X in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the SmallHD DP7-Pro High Bright On-Camera Field MON-DP7-PRO-LCD-HB-X:
Resolution 1280 x 800
Brightness 1500 nits
Display 7" (17.8 cm) diagonal IPS LCD
Color Gamut 50%
Contrast Ratio 800:1
Color Depth 8-bit
Viewing Angle 80° / 80° / 80° / 80°
Inputs 1x HD/SD-SDI on BNC
1x HDMI input (with lock)
1x 4-pin Hirose (supports optional SmallHD Hirose to BNC Composite/Component Breakout Cable)
1x mini-USB (for firmware updates)
1x locking 4-pin Hirose power input (10-24 VDC input voltage) (PSU included)
1x 4-pin Molex battery input (for battery plates)
1x stereo line in 4-pin Hirose (the hardware is present but not functional until a future firmware update)

*The Hirose inputs are specifically wired to support the appropriate cables mentioned above. They cannot be used for other inputs. )
Outputs 1x HD/SD-SDI on BNC (doubles as an input)
1x HDMI
1x 1/8" mini headphone output (the hardware is present but not functional until a future firmware update)
X-Port Accessory Slot Yes
Speakers 2x built-in speakers (the hardware is present but not functional until a future firmware update)
Storage 1x SD card slot
Signal Routing / Conversion Input >> Output:
HDMI >> HDMI
HDMI >> SDI
HDMI >> SDI, HDMI
SDI >> SDI
SDI >> HDMI
SDI >> SDI, HDMI
Interface 8x front panel buttons
2x ergonomic scroll wheels (one on each top corner)
4x proximity sensors next to the front panel buttons bring up hot keys, which can then be controlled with front panel buttons
Sensors 4x proximity sensors
1x accelerometer (Horizon indicator)
1x temperature sensor (to sense internal temperature of monitor to avoid potential damage in extreme situations)
Tally 2x tally indicators
Mounting Threads 5x robust 1/4"-20 threaded points on all sides
Power Consumption 24 W
Dimensions 7.9 x 5.1 x 1.2" (20 x 13 x 3 cm)
Weight < 1.2 lb (0.54 kg)
Packaging Info
Package Weight 2.6 lb
Box Dimensions (LxWxH) 11.2 x 8.1 x 3.4"
The user manual for the SmallHD DP7-Pro High Bright On-Camera Field MON-DP7-PRO-LCD-HB-X can be downloaded in .pdf format if it did not come with your new on camera monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other SmallHD users keep a unique electronic library for SmallHD on camera monitorss, where you can use our link to download the user manual for the SmallHD DP7-Pro High Bright On-Camera Field MON-DP7-PRO-LCD-HB-X.

The user manual lists all of the functions of the SmallHD DP7-Pro High Bright On-Camera Field MON-DP7-PRO-LCD-HB-X, all the basic and advanced features and tells you how to use the on camera monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from SmallHD service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the SmallHD DP7-Pro High Bright On-Camera Field MON-DP7-PRO-LCD-HB-X. User manuals are also available on the SmallHD website under Professional Video - Monitors - On Camera Monitors.
