User manual for the Smart-AVI MXC-HD08X16S 8 x 16 HDMI Matrix Switcher MXC-HD08X16S

The user manual for the Smart-AVI MXC-HD08X16S 8 x 16 HDMI Matrix Switcher MXC-HD08X16S provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Routers & Switchers.

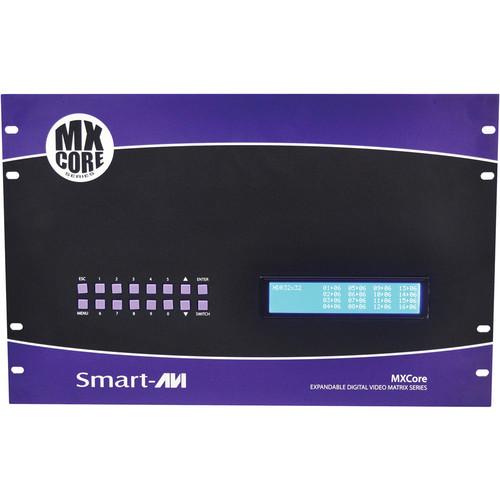

The MXC-HD08X16S 8 x 16 HDMI Matrix Switcher is part of the MXCORE-HD line of modular switchers from Smart AVI. It allows you to route up to 8 HDMI sources to any of 16 HDMI outputs. Each input can be assigned to a dedicated output or a single input can be mapped to multiple outputs. The switcher supports resolutions up to 1920 x 1200 and can pass DVI and HDMI 1.3b compliant signals as well as embedded audio. The inputs are equalized to help restore weak signals resulting from an extended cable runs.

The MXC-HD08X16S supports Smart AVI's SmartControl GUI software application. Through this applications you can adjust the switcher's settings using a Windows computer. This saves you the trouble of having to code your own RS-232 control software. Alternatively, an integrated web server combined with the Net-IP-Pro feature allows multiple users to operate the switcher from anywhere in the world using a web browser. The web server also supports Telnet for integration with third-party or custom control solutions.

The unit is designed for rackmount installation. A single power supply comes integrated and a second, redundant power supply can be added if required.
If you own a Smart-AVI routers & switchers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Smart-AVI MXC-HD08X16S 8 x 16 HDMI Matrix Switcher MXC-HD08X16S in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Smart-AVI MXC-HD08X16S 8 x 16 HDMI Matrix Switcher MXC-HD08X16S:
Specifications
    Video
    Video Bandwidth 340 MHz, 10.2 Gbp/s
    Input Video Signal Video (TMDS) 0.5 to 1.0 Vpp
    Input DDC Signal 5 V
    Supported Resolutions HDMI: 480, 720p, 1080i, 1080p
    DVI: Up to 1920 x 1200 at 60 Hz
    Supported Standards HDMI - DVI-D single-link 1.1 and HDPC 1.0 and 1.1 compliant
    Sampling: 4:2:2 and 4:4:4
    Word Length: RGB / YCBCR: 24, 30, or 36-bit; YCBCR: 8, 10, 12, 16, 20, or 24-bit
    Audio
    Audio Supported DTS-HD Master Audio, Dolby True-HD, and Dolby Digital Plus - embedded in HDMI signal
    Connectivity
    Input 8 x HDMI
    Output 16 x HDMI
    General
    Input Card Slots Supports up to 8 cards - 2 used
    Output Card Slots Supports up to 8 cards - 4 used
    Control IR Remote: 38 kHz RC5
    Front Panel: 2 x 8 keyboard with 4 x 40 LCD
    RS-232: 9600 bp/s on DB9 female connector
    TC/IP: Web Server, Telnet
    Power Consumption 300 W
    Power Requirements 100 to 230 VAC at 50 or 60 Hz
    Operating Temperature 32 to 131°F / 0 to 55°C
    Humidity 10 to 90%
    Dimensions 17.1 x 12 x 12" / 435 x 305 x 305 mm
    Weight 20 lb / 9.1 kg
    Item Demo
    The user manual for the Smart-AVI MXC-HD08X16S 8 x 16 HDMI Matrix Switcher MXC-HD08X16S can be downloaded in .pdf format if it did not come with your new routers & switchers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Smart-AVI users keep a unique electronic library for Smart-AVI routers & switcherss, where you can use our link to download the user manual for the Smart-AVI MXC-HD08X16S 8 x 16 HDMI Matrix Switcher MXC-HD08X16S.

    The user manual lists all of the functions of the Smart-AVI MXC-HD08X16S 8 x 16 HDMI Matrix Switcher MXC-HD08X16S, all the basic and advanced features and tells you how to use the routers & switchers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Smart-AVI service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Smart-AVI MXC-HD08X16S 8 x 16 HDMI Matrix Switcher MXC-HD08X16S. User manuals are also available on the Smart-AVI website under Professional Video - Signal Processing & Distribution - Routers & Switchers.
