User manual for the Smart-AVI MXC-HD32X08S 32 x 08 HDMI Matrix Switcher MXC-HD32X08S

The user manual for the Smart-AVI MXC-HD32X08S 32 x 08 HDMI Matrix Switcher MXC-HD32X08S provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Routers & Switchers.

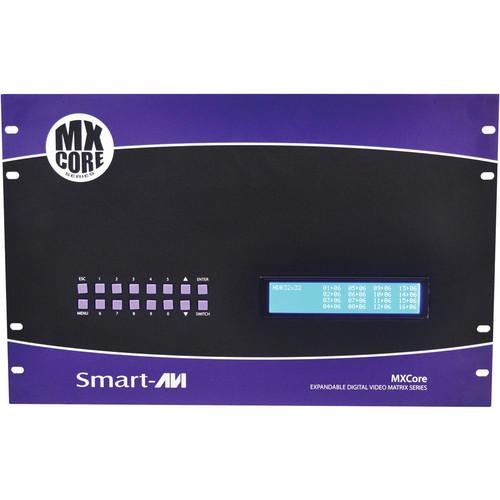

The MXC-HD32X08S 32 x 08 HDMI Matrix Switcher is part of the MXCORE-HD line of modular switchers from Smart AVI. It allows you to route up to 32 HDMI sources to any of 08 HDMI outputs. Each input can be assigned to a dedicated output or a single input can be mapped to multiple outputs. The switcher supports resolutions up to 1920 x 1200 and can pass DVI and HDMI 1.3b compliant signals as well as embedded audio. The inputs are equalized to help restore weak signals resulting from an extended cable runs.

The MXC-HD32X08S supports Smart AVI's SmartControl GUI software application. Through this applications you can adjust the switcher's settings using a Windows computer. This saves you the trouble of having to code your own RS-232 control software. Alternatively, an integrated web server combined with the Net-IP-Pro feature allows multiple users to operate the switcher from anywhere in the world using a web browser. The web server also supports Telnet for integration with third-party or custom control solutions.

The unit is designed for rackmount installation. A single power supply comes integrated and a second, redundant power supply can be added if required.
If you own a Smart-AVI routers & switchers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Smart-AVI MXC-HD32X08S 32 x 08 HDMI Matrix Switcher MXC-HD32X08S in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Smart-AVI MXC-HD32X08S 32 x 08 HDMI Matrix Switcher MXC-HD32X08S:
Video
Video Bandwidth 340 MHz, 10.2 Gbp/s
Input Video Signal Video (TMDS) 0.5 to 1.0 Vpp
Input DDC Signal 5 V
Supported Resolutions HDMI: 480, 720p, 1080i, 1080p
DVI: Up to 1920 x 1200 at 60 Hz
Supported Standards HDMI - DVI-D single-link 1.1 and HDPC 1.0 and 1.1 compliant
Sampling: 4:2:2 and 4:4:4
Word Length: RGB / YCBCR: 24, 30, or 36-bit; YCBCR: 8, 10, 12, 16, 20, or 24-bit
Audio
Audio Supported DTS-HD Master Audio, Dolby True-HD, and Dolby Digital Plus - embedded in HDMI signal
Connectivity
Input 32 x HDMI
Output 08 x HDMI
General
Input Card Slots Supports up to 8 cards - 8 used
Output Card Slots Supports up to 8 cards - 2 used
Control IR Remote: 38 kHz RC5
Front Panel: 2 x 8 keyboard with 4 x 40 LCD
RS-232: 9600 bp/s on DB9 female connector
TC/IP: Web Server, Telnet
Power Consumption 300 W
Power Requirements 100 to 230 VAC at 50 or 60 Hz
Operating Temperature 32 to 131°F / 0 to 55°C
Humidity 10 to 90%
Dimensions 17.1 x 12 x 12" / 435 x 305 x 305 mm
Weight 20 lb / 9.1 kg
The user manual for the Smart-AVI MXC-HD32X08S 32 x 08 HDMI Matrix Switcher MXC-HD32X08S can be downloaded in .pdf format if it did not come with your new routers & switchers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Smart-AVI users keep a unique electronic library for Smart-AVI routers & switcherss, where you can use our link to download the user manual for the Smart-AVI MXC-HD32X08S 32 x 08 HDMI Matrix Switcher MXC-HD32X08S.
