User manual Solid State Logic XLogic Alpha Channel Microphone Preamp

Operating instructions and pdf manual for use - Solid State Logic XLogic Alpha Channel Microphone Preamp User manual, User manual Solid State Logic XLogic Alpha Channel Microphone Preamp, Solid, State, Logic, XLogic, Alpha, Channel, Microphone, Pre


User manual for Solid State Logic XLogic Alpha Channel Microphone Preamp

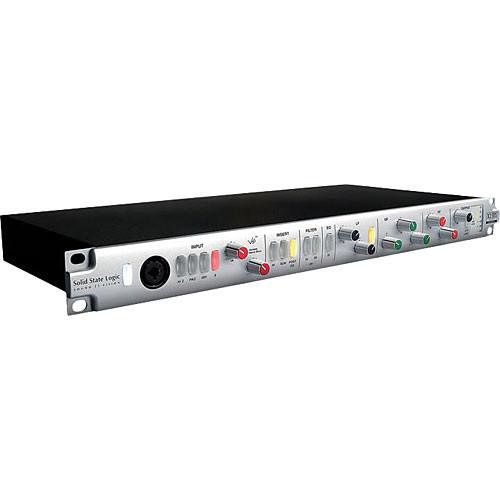

Solid State Logic XLogic Alpha Channel Microphone Preamp
  • Manufacturer: Solid State Logic
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Channel Strips
  • Safety instructions
  • Startup and operation of the channel strips
  • Tips for setting up your Solid State Logic
  • Settings and expert assistance
  • Contact Solid State Logic service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Solid State Logic XLogic Alpha Channel Microphone Preamp, which address similar problems with connecting and setting up Channel Strips Solid State Logic.



User manual for the Solid State Logic XLogic Alpha Channel Microphone Preamp

The user manual for the Solid State Logic XLogic Alpha Channel Microphone Preamp provides necessary instructions for the proper use of the product Pro Audio - Recording - Channel Strips.

XLogic Alpha Channel from Solid State Logic is a single channel microphone preamp with EQ, limiting and analog to digital conversion. The unit represents the perfect front-end for digital audio workstation and brings SSL's sonic legacy to the professional studio or desktop recording environment.
If you own a Solid State Logic channel strips and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Solid State Logic XLogic Alpha Channel Microphone Preamp in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Solid State Logic XLogic Alpha Channel Microphone Preamp:
Number of Channels Single
Inputs 1 x XLR-1/4" TS Combi (front)
1 x 1/4" TRS phone Insert Return (rear)
1 x RCA coaxial S/PDIF (rear)
1 x RCA phono Lite Limit Link
Outputs 1 x 1/4" TRS phone
1 x 1/4" TRS phone Insert Send
1 x RCA coaxial S/PDIF
1 x RCA phono Lite Limit Link
Frequency Response Not specified by manufacturer
Noise Not specified by manufacturer
Preamp
Gain Range +20dB to +75dB
Maximum Output +24dBu
Input Impedance Mic: 1kΩ
Line: 10kΩ
Phantom Power +48V
Compressor
Threshold Range Not applicable
Ratio Not applicable
Attack Time Not applicable
Release Time Not applicable
Slope Not applicable
Sidechain Not applicable
Equalizer
Filter Type Low: Switchable shelving or bell curves
Mid: Parametric with adjustable frequency and Q
High: Fixed 'shelving' curve
Frequency Bands Low: 40Hz to 600Hz
Mid: 300Hz to 5kHz
High: 1.5kHz to 22kHz
Bandwidth Not specified by manufacturer
Range (Boost/Cut) +/-16dB
Light Indication
Threshold Range Program dependent
Ratio Program dependent
Attack Time Program dependent
De-Esser
Threshold Range Not applicable
Frequency Range Not applicable
Gate
Gate Threshold Not applicable
Gate Rate Not applicable
Physical
Dimensions (WxDxH) 19 x 9 x 1.75" (483 x 230 x 45mm)
Weight 7 lbs (3 kg)
Specialties Variable Harmonic Drive adds level dependent coloration, using 2nd order and then increasingly 3rd order harmonics
Packaging Info
Package Weight 8.55 lb
Box Dimensions (LxWxH) 21.4 x 12.4 x 3.3"
The user manual for the Solid State Logic XLogic Alpha Channel Microphone Preamp can be downloaded in .pdf format if it did not come with your new channel strips, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Solid State Logic users keep a unique electronic library for Solid State Logic channel stripss, where you can use our link to download the user manual for the Solid State Logic XLogic Alpha Channel Microphone Preamp.

The user manual lists all of the functions of the Solid State Logic XLogic Alpha Channel Microphone Preamp, all the basic and advanced features and tells you how to use the channel strips. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Solid State Logic service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Solid State Logic XLogic Alpha Channel Microphone Preamp. User manuals are also available on the Solid State Logic website under Pro Audio - Recording - Channel Strips.
