Sonnet Echo 15 Pro  Thunderbolt 2 Dock ECHO-DK-PRO-0TB
  • Manufacturer: Sonnet
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Notebook Accessories - Docking Stations & Port Replicators
  • Safety instructions
  • Startup and operation of the docking stations & port replicators
  • Tips for setting up your Sonnet
  • Settings and expert assistance
  • Contact Sonnet service
  • Troubleshooting
  • Warranty information
  • Price: 599 USD

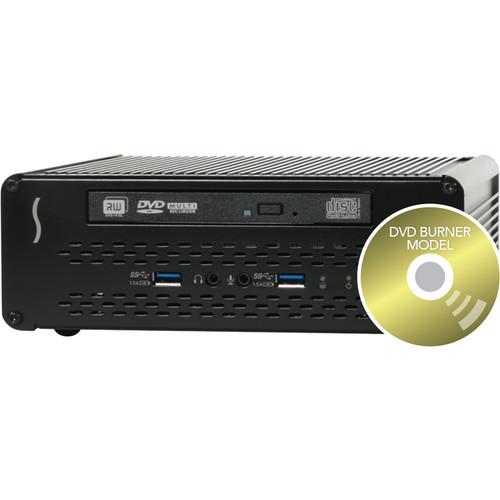

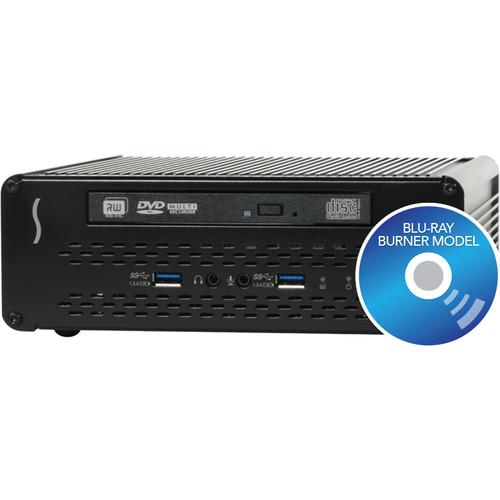

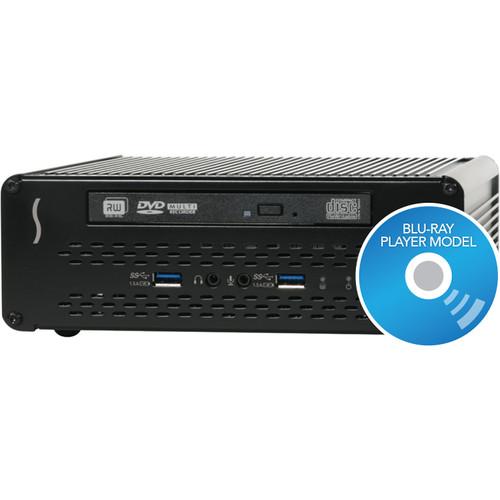

Sonnet Echo 15 Pro  Thunderbolt 2 Dock ECHO-DK-PRO-0TB Sonnet Echo 15 Pro  Thunderbolt 2 Dock ECHO-DK-PRO-0TB Sonnet Echo 15 Pro  Thunderbolt 2 Dock ECHO-DK-PRO-0TB
Click to enlarge image

We recommend checking out our discussion threads on the Sonnet Echo 15 Pro Thunderbolt 2 Dock ECHO-DK-PRO-0TB, which address similar problems with connecting and setting up Docking Stations & Port Replicators Sonnet.



User manual for the Sonnet Echo 15 Pro Thunderbolt 2 Dock ECHO-DK-PRO-0TB

The user manual for the Sonnet Echo 15 Pro Thunderbolt 2 Dock ECHO-DK-PRO-0TB provides necessary instructions for the proper use of the product Computers & Solutions - Notebook Accessories - Docking Stations & Port Replicators.

The Echo 15 Pro+ Thunderbolt Dock with Blu-ray Burner from Sonnet enables you to connect any Mac with a Thunderbolt port to any computer peripherals through a single Thunderbolt cable. Simply plug in your printer, keyboard, mouse, cable modem, external hard drive, headphones, speakers, microphone, as well as iPad, iPhone, or iPod, and other handheld devices to the Echo dock with their supplied cables, and connect your computer to the dock with a Thunderbolt cable. By just unplugging the Thunderbolt cable, you can disconnect your computer. The docking station comes with multiple interfaces such as USB 3.0, eSATA, FireWire 800, Gigabit Ethernet, 3.5mm audio input, 3.5mm audio output, and Thunderbolt 2.
If you own a Sonnet docking stations & port replicators and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sonnet Echo 15 Pro Thunderbolt 2 Dock ECHO-DK-PRO-0TB in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sonnet Echo 15 Pro Thunderbolt 2 Dock ECHO-DK-PRO-0TB:
Connectors
External 2 x Thunderbolt 2
2 x eSATA
1 x FireWire 800
1 x RJ-45 (Gigabit Ethernet)
4 x USB 3.0
2 x audio input
2 x audio output
1 x power
Internal 2 x SATA power
2 x 6 Gb/s SATA data
1 x 3 Gb/s SATA power/data

Reserved for Blu-ray burner

Microphone 1 x 3.5 mm monaural analog microphone jack in front
Headphone 1 x 3.5 mm stereo headphone jack in front; supports stereo optical digital audio out

Mini TOSLINK cable required

Line-in 1 x 3.5 mm stereo line level line in jack in rear
Speakers 1 x 3.5 mm stereo speaker jack in rear for powered speakers
Priority Front I/O jacks have priority over rear I/O jacks
Thunderbolt Characteristics
Cables Supported Standard Thunderbolt (20-pin) male cable
Standard mini DisplayPort (20-pin) male cable (for connecting display only)
Peripherals Supported Supports all industry standard Thunderbolt devices
Daisy Chain Up to six devices
Hot Plug Supports hot pluggable device connection
USB
Ports Front: 2
Rear: 2
Cables Supported Standard male USB 3.0 A or USB 2.0 A connector
Peripherals Supported USB 3.0, 2.0, and 1.1 devices
Data Transfer Rate 5 Gb/s (USB 3.0)
Number of Devices Supported Up to 30
Hot Plug Supports hot pluggable device connection
Charging 3 x ports with 5 W capacity to charge iPhone, iPod, or iPad mini
1 x port with 12 W capacity to quick charge iPads

iPad quick charge requires 10W and is only supported on one specific USB 3.0 port.

Wake on USB Supported
FireWire Support
Standard IEEE 1394b compliant
Chipset LSI 643E
Hot Plug Supports hot pluggable and hot swappable device connections
Number of Devices Supported Up to 63 (data only)
Cable Support 9-pin male FireWire 800 cables
Peripherals Supported FireWire 800 and FireWire 400 devices

FireWire 400 support through FireWire 800 ports requires Sonnet FireWire 400-to-800 adapter or adapter cable.

Data Transfer Rate 800/400/200/100 Mb/s
Boot Support OS X booting supported
Blu-ray Burner
Blu-ray Drive Internal: Blu-ray disc burner (4x BD-R/8x DVD ±RW drive)

Software for Blu-ray disc burning and movie playback required are sold separately.

Boot Support OS X from DVD
CD/DVD Support Read/Write
Ethernet
Port RJ-45
Network Speed 1000 Mb/s, 100 Mb/s, and 10 Mb/s
Auto-MDI/MDI-X
Standard Compliant with 10/100/1000 IEEE 802.2 specification
Network Gigabit Ethernet (1000BaseT, 100BaseTX, 10BaseT)
Packets Maximum Packet Size: 9000 bytes (jumbo packets)
Wake-on-LAN & Netboot Supported
Indicators
Power Front Panel: Power LED indicator
SATA Activity Activity LED indicator for internal and/or external SATA hard drive or solid state drive
Internal SATA Drives Supported
2 x 2.5" solid state drives or
1 x 3.5" hard drive

SATA Speed
Up to 6 Gb/s

Data Transfer Speed
Up to 700 MB/s (2 x solid state drives RAID 0)

Boot Support
OS X booting supported
External SATA Devices Supported
Any storage device with a SATA interface

SATA Speed
6 Gb/s

Data Transfer Rate
Up to 350 MB/s per port

Boot Support
OS X booting supported

Port Multiplier Support
Yes
Video
Thunderbolt Display Native support
Mini DisplayPort Native support
HDMI: With mini DisplayPort to HDMI adapter
Dual Link DVI: With mini DisplayPort to Dual Link DVI adapter
DVI: With mini DisplayPort to DVI adapter
VGA: With mini DisplayPort to VGA adapter
Resolution Dependent on computer video controller specification
General
Power Adapter Input: 100-240 VAC 1.6 A, 50-60 Hz
Output: 12 V @ 7.0 A (80 W)
Operating Temperature 0 to 35°C (32 to 95°F)
Compatibility Mac with a Thunderbolt port
OS X 10.8.5, 10.9.2+
OS X Server 10.8.5, 10.9.2+
Compliance RoHS
Dimensions (W x H x D) 7.87 x 3.30 x 8.86" (19.98 x 8.38 x 22.50 cm)
Packaging Info
Package Weight 5.9 lb
Box Dimensions (LxWxH) 12.6 x 10.7 x 6.2"
