User manual Sony Alpha a5000 Mirrorless Digital Camera ILCE5000L/S

Operating instructions and pdf manual for use - Sony Alpha a5000 Mirrorless Digital Camera ILCE5000L/S User manual, User manual Sony Alpha a5000 Mirrorless Digital Camera ILCE5000L/S, Sony, Alpha, a5000, Mirrorless, Digital, Camera, ILCE5000L/S,


User manual for Sony Alpha a5000 Mirrorless Digital Camera ILCE5000L/S

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Sony Alpha a5000 Mirrorless Digital Camera ILCE5000L/S
  • Manufacturer: Sony
  • Basic description and contents of package
  • Product classification: Photography - Digital Cameras - Mirrorless System Cameras
  • Safety instructions
  • Startup and operation of the mirrorless system cameras
  • Tips for setting up your Sony
  • Settings and expert assistance
  • Contact Sony service
  • Troubleshooting
  • Warranty information
  • Price: 448 USD
Sony Alpha a5000 Mirrorless Digital Camera ILCE5000L/S Sony Alpha a5000 Mirrorless Digital Camera ILCE5000L/S Sony Alpha a5000 Mirrorless Digital Camera ILCE5000L/S
Click to enlarge image

We recommend checking out our discussion threads on the Sony Alpha a5000 Mirrorless Digital Camera ILCE5000L/S, which address similar problems with connecting and setting up Mirrorless System Cameras Sony.



User manual for the Sony Alpha a5000 Mirrorless Digital Camera ILCE5000L/S

The user manual for the Sony Alpha a5000 Mirrorless Digital Camera ILCE5000L/S provides necessary instructions for the proper use of the product Photography - Digital Cameras - Mirrorless System Cameras.

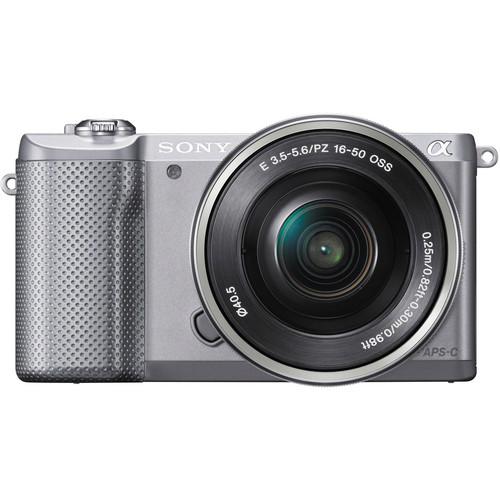

The silver Sony Alpha a5000 Mirrorless Digital Camera is a versatile and compact mirrorless camera that features a 20.1 megapixel APS-C-sized Exmor APS HD CMOS sensor and BIONZ X image processor to produce high-resolution still images and full HD movies with marked low-light quality and sensitivity to ISO 16000. The image processor contributes greatly to minimizing overall noise levels and also affords a wealth of speed throughout the camera for recording up to 3.5 fps in Speed Priority Continuous mode.

To support live view monitoring, image playback, and menu navigation, a 3.0" 460.8k-dot LCD monitor is integrated into the a5000 and utilizes a 180° tilting design to better serve working from low viewing angles as well as in front of the camera. The large screen and intuitive menu interface helps to easily access a host of camera features, including Picture Effects, Auto HDR mode, Auto Object Framing, and for connecting to mobile devices using built-in wireless and NFC connectivity.

Included with the camera body is a Sony E-mount 16-50mm f/3.5-5.6 OSS Retractable Zoom Lens, which provides a 35mm-equivalent focal length range of 24-75mm. This range of perspectives is well-suited to everyday shooting and is further enhanced through the inclusion of Optical SteadyShot image stabilization for minimizing the appearance of camera shake. Power Zoom technology allows for electronic control over the zoom position and the inclusion of one extra-low dispersion element and four aspherical elements helps to reduce chromatic aberrations throughout the zoom range as well as contribute to high overall sharpness.
If you own a Sony mirrorless system cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sony Alpha a5000 Mirrorless Digital Camera ILCE5000L/S in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Sony Alpha a5000 Mirrorless Digital Camera ILCE5000L/SDownload user manual for Sony Alpha a5000 Mirrorless Digital Camera ILCE5000L/S
(PDF file, 2.51 MB)
Additional parameters of the Sony Alpha a5000 Mirrorless Digital Camera ILCE5000L/S:
Specifications
    Imaging
    Lens Mount Sony E-Mount
    Camera Format APS-C (1.5x Crop Factor)
    Pixels Actual: 20.4 Megapixel
    Effective: 20.1 Megapixel
    Max Resolution 20 MP: 5456 x 3632
    Sensor Type / Size CMOS, 23.2 x 15.4 mm
    File Formats Still Images: JPEG, RAW
    Movies: MP4, MPEG-4 AVC/H.264
    Audio: AAC LC, AC3, Dolby Digital 2ch
    Bit Depth 14-bit
    Dust Reduction System Yes
    Memory Card Type Memory Stick Pro Duo
    Memory Stick PRO HG-Duo
    Memory Stick XC-HG Duo
    SD
    SDHC
    SDXC
    AV Recording
    Video Recording Yes, NTSC
    Resolution 1920 x 1080: 60 fps, 24 fps
    1440 x 1080: 30 fps
    640 x 480: 30 fps
    Video Format High Definition
    AVCHD
    1920 x 1080i / 60 fps (24 Mbps)
    1920 x 1080i / 60 fps (17 Mbps)
    High Definition
    AVCHD
    1920 x 1080p / 24 fps (24 Mbps)
    1920 x 1080p / 24 fps (17 Mbps)
    High Definition
    MP4
    1440 x 1080p / 30 fps (12 Mbps)
    Standard Definition
    MP4
    640 x 480p / 30 fps (3 Mbps)
    Aspect Ratio 4:3, 16:9
    Video Clip Length Up to 29 Min
    Audio Recording Built-in Mic: With Video, Stereo
    Focus Control
    Focus Type Auto & Manual
    Focus Mode Continuous-servo AF (C), Manual Focus (M), Single-servo AF (S)
    Autofocus Points Contrast Detection: 25
    Viewfinder/Display
    Display Screen 3" Rear Screen Tilting  LCD (460,800)
    Exposure Control
    ISO Sensitivity Auto, 100-16000
    Shutter Type: Electronic & Mechanical
    Speed: 30 - 1/4000 ,  Bulb Mode
    Metering Method Center-weighted average metering, Multi-zone metering, Spot metering
    Exposure Modes Modes: Aperture Priority, Intelligent Auto, Manual, Movie, Programmed Auto, Scene Selection, Shutter Priority, Superior Auto, Sweep Panorama
    Metering Range: EV 0.0 - EV 20.0
    Compensation: -3 EV to +3 EV (in 1/3 EV steps)
    White Balance Modes Auto, Cloudy, Color Temperature, Color Temperature Filter, Custom, Daylight, Flash, Fluorescent (Cool White), Fluorescent (Day White), Fluorescent (Daylight), Fluorescent (Warm White), Incandescent, Shade, Underwater
    Burst Rate Up to 3.5 fps at 20.1 MP for up to 15 frames
    Up to 2.5 fps at 20.1 MP for up to 27 frames
    Flash
    Flash Modes Auto
    Fill-in
    Off
    Rear Sync
    Red-eye Reduction
    Slow Sync
    Built-in Flash Yes
    Guide No. 13.12' (4 m) ISO100
    Max Sync Speed 1 / 160 seconds
    Flash Compensation -2 EV to +2 EV (in 1/3 EV steps)
    Performance
    Continuous Shooting Up to 3.5 fps
    Self Timer 10 seconds, 2 seconds
    Number of Shots: 3-5
    Connectivity HDMI D (Micro), Micro-USB, USB 2.0
    Wi-Fi Capable Yes
    Software System Requirements Windows: 7 (SP1), 8
    Mac: OS X 10.6 or later
    Power
    Battery 1x NP-FW50 Rechargeable Lithium-ion Battery Pack, 7.7 VDC, 1080 mAh
    AC Power Adapter AC-PW20 (Optional)
    Physical
    Dimensions (WxHxD) 4.3 x 2.5 x 1.4" / 109.6 x 62.8 x 35.7 mm excluding protrusions
    Weight 9.49 oz / 269 g with battery and memory card
    Kit Lens
    Focal Length 16 - 50mm
    Comparable 35mm Focal Length: 24 - 75 mm
    Aperture Maximum: f/3.5 - 5.6
    Minimum: f/22 - 36
    Angle of View 83° - 32°
    Minimum Focus Distance 9.84" (25 cm)
    Magnification 0.215x
    Elements/Groups 9/8
    Diaphragm Blades 7
    Autofocus Yes
    Image Stabilization Yes
    Filter Thread Front:40.5 mm
    Dimensions (DxL) Approx. 2.63 x 1.19" (66.7 x 30.2 mm)
    Weight 4.09 oz (116 g)
    Packaging Info
    Package Weight 1.6 lb
    Box Dimensions (LxWxH) 6.5 x 5.5 x 5.3"
    Sony a5000 Demo
    The user manual for the Sony Alpha a5000 Mirrorless Digital Camera ILCE5000L/S can be downloaded in .pdf format if it did not come with your new mirrorless system cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sony users keep a unique electronic library for Sony mirrorless system camerass, where you can use our link to download the user manual for the Sony Alpha a5000 Mirrorless Digital Camera ILCE5000L/S.

    The user manual lists all of the functions of the Sony Alpha a5000 Mirrorless Digital Camera ILCE5000L/S, all the basic and advanced features and tells you how to use the mirrorless system cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sony service.
