User manual for the Sony DXC-C33 Compact Color Camera DXCC33
The user manual for the Sony DXC-C33 Compact Color Camera DXCC33 provides
necessary instructions for the proper use of the product Professional Video - Industrial & Multi-Purpose Cameras.

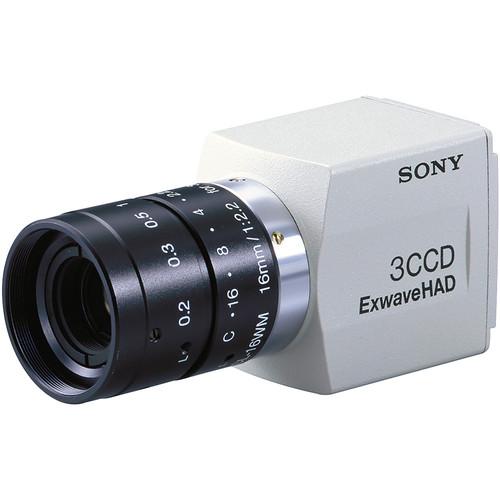

The Sony DXC-C33 is a 3-chip color video camera with Firewire connectivity for limited space applications. It uses 3x 1/3-inch CCDs that output an amazing 850 lines of resolution and are sensitive for f/8 at 2000 lux. A powerful digital signal processor allows great image quality with DynaLatitude and Partial Enhance, special features usually found on high-end broadcast gear. The camera is made up of 2 pieces: the camera head that takes C-mount lenses, and the camera control unit, a control box that gives access to the various video parameters the DSP governs and the on-screen menu system. The 2 pieces are connected by a flexible cable (sold separately) that can be as long as about 90 feet (30 meters).
If you own a Sony industrial & multi-purpose cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Sony DXC-C33 Compact Color Camera DXCC33 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sony DXC-C33 Compact Color Camera DXCC33:
| Application || Medical, Microscopy |
| Signal System || NTSC |
| Image Sensor || 1/3-Inch CCD x 3 |
| Lens Mount || C-Mount |
| Number of Pixels || 379,000 |
768 horizontal x 494 Vertical
| Horizontal Resolution || 850 TV Lines Horizontal Resolution |
| Minimum Illumination || 4.0 Lux with f/2.0 and Hyper Gain |
| Signal-to-Noise Ratio || 62 dB |
| Signal Connectors || Composite Video- BNC (x 1 output) |
iLINK- 6-Pin (x 1 input)
S-Video- 4-Pin (x 1 output)
RGB- 9-Pin (x 1 output)
Sync- BNC (x 1)
| Power Requirements || 100 to 240 Volts AC, 50 or 60 Hz |
| Power Consumption || 18 Watts |
| Operating Temperature || 23 to 113 degrees F |
-5 to 45 degrees C
| Dimensions (WxHxD) || Camera Head |
1.26 x 1.5 x 1.58 inches
32 x 38 x 40 mm
7.9 x 3.5 x 9.5 inches
200 x 88 x 242 mm
| Weight || Camera Head |
Camera Control Unit
| Package Weight || 9.5 lb |
| Box Dimensions (LxWxH) || 18.6 x 11.1 x 7.8" |
