User manual for the Sony HSC-100RF Optical Fiber Broadcast Camera HSC-100RF

The user manual for the Sony HSC-100RF Optical Fiber Broadcast Camera HSC-100RF provides necessary instructions for the proper use of the product Professional Video - Studio & EFP Cameras.

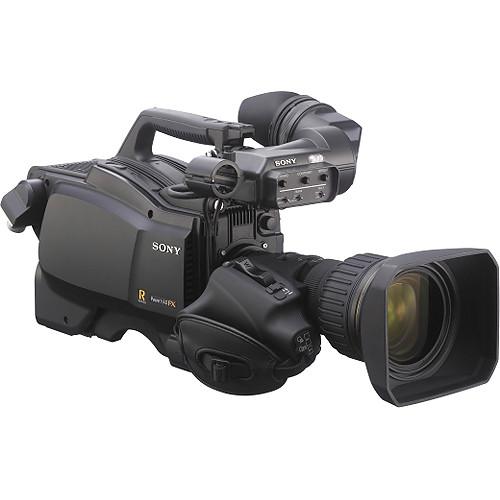

The Sony HSC-100RF Optical Fiber Broadcast Camera is an HD/SD camera with an optical fiber CCU input that supports cable runs up to 6,562 ft to an optional CCU. The camera features a 2/3" type CCD sensor offering F10 sensitivity for 1080i59.94 and F11 for 1080i50, with -60dB signal-to-noise ratio. It also records in 720p and 1080PsF and down-converts to high-quality SD. An optional HZC-PSF3 software is required for 1080/29.97PsF/25PsF. The lens mount is Sony Bayonet. Inputs/outputs include XLR audio, XLR mic, HD/SD-SDI output, VF signal, return signal, SDI prompter output/genlock input/return input, and XLR intercom. An electronic color correction filter and four ND filters are built in.

A 16-bit A/D converter processes images with very high color precision. A Digital Extender function expands an image by a factor of two in the center of the sensor's captured image without any decrease in sensitivity. Auto Lens Aberration Compensation 2 automatically reduces chromatic aberration by horizontal and vertical compensation when using lenses that support this function. Seven standard-gamma and four hyper-gamma tables are available for use in adjusting contrast. A Multi-Matrix function applies color adjustments over a user-specified color range, and Adaptive-Matrix enables color conversion even when shooting under excessively strong ambient light. Master White Gain allows step-less gain level adjustments. Two types of focus assist are available -- Viewfinder Detail adds dedicated edge signals to the viewfinder, allowing easy recognition of a focusing point, and Focus Assist Indicator displays an indicator for adjustment at the bottom or elsewhere within the viewfinder frame.

The main chassis is made of durable magnesium-alloy casting. An integrated shoulder pad is adjustable back and forth without any tools. A protrusion on the front of the carrying handle allows added stability while shooting, and a non-slip structure on the handle's lower surface provides better grasp. Assignable switches are available on the side and rear panels and assignable buttons on the handle.
If you own a Sony studio & efp cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sony HSC-100RF Optical Fiber Broadcast Camera HSC-100RF in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sony HSC-100RF Optical Fiber Broadcast Camera HSC-100RF:
Specifications
    Sensor 3-chip 2/3" type CCD
    Effective Picture Elements 1920 x 1080
    Signal Format 1080/59.94i/50i, 720/59.94p/50p, 1080/29.97PsF/25PsF (optional HZC-PSF3 software required for 1080/29.97PsF/25PsF)
    Spectrum System F1.4 prism system
    Lens Mount Sony bayonet mount
    Built-In Filters Electronic color correction; ND Clear, 1/4 ND, 1/16 ND, 1/64 ND
    Sensitivity F10 (59.94 Hz) / F11 (50 Hz) at 2000 lx, 3200 K, 89.9% reflectance
    Signal-to-Noise Ratio (Typical) HD: -60 dB (1080i)
    Horizontal Resolution HD: 1,000 TV lines
    SD: 900 TV lines
    Shutter Speed Range 1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000 (s) (59.94i mode)
    1/60, 1/125, 1/250, 1/500, 1/1000, 1/2000 (s) (50i mode)
    Modulation Depth HD: 45% at 27.5 MHz (1080i)
    SD: 90% at 5 MHz
    Input / Output Audio input (Ch 1, Ch 2):
    1x XLR 3-pin, female per channel
    For Mic: -60 dBu (may be selected to -20 dBu by menu or HSCU operations), balanced
    For Line: 0 dBu, balanced

    Mic 1 input:
    1x XLR 3-pin, female

    Return control input:
    1x 6-pin

    Prompter output/Genlock input/Return input:
    1x SDI, 1 Vp-p, 75 Ω

    DC input:
    1x XLR 4-pin, DC 10.5 V - 17 V

    DC output:
    1x 4-pin, DC 10.5 V - 17 V, 0.5 A (max.)
    1x 2-pin, DC 10.5 V - 17 V, 2.5 A (max.)

    Test output:
    1x BNC

    SDI output:
    1x BNC

    Earphone output:
    1x stereo mini jack

    CCU connection:
    1x Fiber optic

    Tracker:
    1x 10-pin

    Intercom:
    1x XLR 5-pin, female

    Remote:
    1x 8-pin

    Lens:
    1x 12-pin

    Viewfinder:
    1x 20-pin
    Power Requirements DC 180 V, 1.0 A (max.), DC 12 V, 7 A (max.)
    Operating Temperature -4 to 113°F (-20 to 45°C)
    Storage Temperature -4 to 113°F (-20 to 45°C)
    Weight 9 lb 10 oz(4.1 kg)
    The user manual for the Sony HSC-100RF Optical Fiber Broadcast Camera HSC-100RF can be downloaded in .pdf format if it did not come with your new studio & efp cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sony users keep a unique electronic library for Sony studio & efp camerass, where you can use our link to download the user manual for the Sony HSC-100RF Optical Fiber Broadcast Camera HSC-100RF.

    The user manual lists all of the functions of the Sony HSC-100RF Optical Fiber Broadcast Camera HSC-100RF, all the basic and advanced features and tells you how to use the studio & efp cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sony service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sony HSC-100RF Optical Fiber Broadcast Camera HSC-100RF. User manuals are also available on the Sony website under Professional Video - Studio & EFP Cameras.
