User manual Sony MVS-3016APAC HD/SD Multi-format Switcher MVS3016APAC

Operating instructions and pdf manual for use - Sony MVS-3016APAC HD/SD Multi-format Switcher MVS3016APAC User manual, User manual Sony MVS-3016APAC HD/SD Multi-format Switcher MVS3016APAC, Sony, MVS-3016APAC, HD/SD, Multi-format, Switcher, MVS3016


User manual for Sony MVS-3016APAC HD/SD Multi-format Switcher MVS3016APAC

Sony MVS-3016APAC HD/SD Multi-format Switcher MVS3016APAC
  • Manufacturer: Sony
  • Basic description and contents of package
  • Product classification: Professional Video - Studio & EFP Equipment - Production Switchers
  • Safety instructions
  • Startup and operation of the production switchers
  • Tips for setting up your Sony
  • Settings and expert assistance
  • Contact Sony service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Sony MVS-3016APAC HD/SD Multi-format Switcher MVS3016APAC, which address similar problems with connecting and setting up Production Switchers Sony.



User manual for the Sony MVS-3016APAC HD/SD Multi-format Switcher MVS3016APAC

The user manual for the Sony MVS-3016APAC HD/SD Multi-format Switcher MVS3016APAC provides necessary instructions for the proper use of the product Professional Video - Studio & EFP Equipment - Production Switchers.

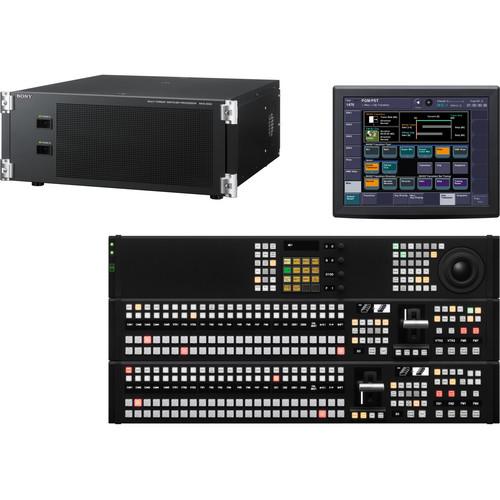

The Sony MVS-3016APAC HD/SD Multi-format Switcher with 16-Button Control Panel is ideally suited for production studios, stadiums, houses of worship, and OB vehicles requiring multiple inputs in a limited space. It comes with two mix effects (M/Es), four keyers per M/E (each with chroma key), 2.5D resizers, color correction, and more.

With the standard multi-viewer output, you save space on additional monitoring. The MVS-3000APAC includes the ICP-3016 sixteen button control panel, which incorporates an attractive black design and OLED mnemonic displays for optimal visibility. The self-contained 4RU processor offers simple configuration and is ideal for small production facilities that have limited installation space.
If you own a Sony production switchers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sony MVS-3016APAC HD/SD Multi-format Switcher MVS3016APAC in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sony MVS-3016APAC HD/SD Multi-format Switcher MVS3016APAC:
Specifications
    Editor 1 to 4 2x D-sub 9-pin, RS-422A
    FM Data 1x RJ-45, 1000BASE-T
    FM Device USB 2.0
    GPI 4x D-sub 25-pin, 18x TTL level inputs, 48x open collector outputs
    Network 1x RJ-45, 1000BASE-T
    Reference 2x BNC 75 Ω with loop-through output
    HDTV systems: HD tri-level sync/SDTV analog sync/analog black burst
    SDTV systems: Analog black burst/analog sync
    Video Inputs/Outputs 12x assignable outputs
    4x selectable outputs for Multiviewer, Format Converter, or Duplicate outputs
    32x primary inputs
    SD video outputs: up to 2 with the MKS-6550 format converter option
    Supported Formats 1080/59.94i, 1080/50i, 1080/23.978PsF, 720/59.94p, 720/50p, 480/59.94i, 576/50i
    Frame Size 2 M/E
    Power Consumption AC 100 to 240 V, ±10%, 50/60 Hz
    4 A to 1.7 A (fully loaded)
    Operating Temperature 41 to 104°F (5 to 40°C)
    Dimensions 32.37 x 4.75 x 15.62" (82 x 12 x 39.6 cm)
    Weight Approx. 46 lb fully loaded (21 kg)
    The user manual for the Sony MVS-3016APAC HD/SD Multi-format Switcher MVS3016APAC can be downloaded in .pdf format if it did not come with your new production switchers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sony users keep a unique electronic library for Sony production switcherss, where you can use our link to download the user manual for the Sony MVS-3016APAC HD/SD Multi-format Switcher MVS3016APAC.

    The user manual lists all of the functions of the Sony MVS-3016APAC HD/SD Multi-format Switcher MVS3016APAC, all the basic and advanced features and tells you how to use the production switchers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sony service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sony MVS-3016APAC HD/SD Multi-format Switcher MVS3016APAC. User manuals are also available on the Sony website under Professional Video - Studio & EFP Equipment - Production Switchers.
