User manual Sony PDW-530 XDCAM Camcorder PDW530

Operating instructions and pdf manual for use - Sony PDW-530 XDCAM Camcorder PDW530 User manual, User manual Sony PDW-530 XDCAM Camcorder PDW530, Sony, PDW-530, XDCAM, Camcorder, PDW530, Video


User manual for Sony PDW-530 XDCAM Camcorder PDW530

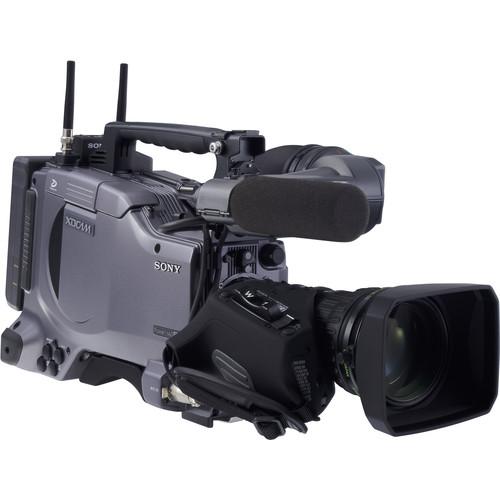

Sony  PDW-530 XDCAM Camcorder PDW530
  • Manufacturer: Sony
  • Basic description and contents of package
  • Product classification: Professional Video - Professional Camcorders - Camcorders
  • Safety instructions
  • Startup and operation of the camcorders
  • Tips for setting up your Sony
  • Settings and expert assistance
  • Contact Sony service
  • Troubleshooting
  • Warranty information
  • Price: 32 USD
We recommend checking out our discussion threads on the Sony PDW-530 XDCAM Camcorder PDW530, which address similar problems with connecting and setting up Camcorders Sony.



User manual for the Sony PDW-530 XDCAM Camcorder PDW530

The user manual for the Sony PDW-530 XDCAM Camcorder PDW530 provides necessary instructions for the proper use of the product Professional Video - Professional Camcorders - Camcorders.

The Sony PDW-530 XDCAM Camcorder provides the durability and reliability professionals have become accustomed to with their full line of ENG camcorders. The PDW-530 provides excellent image quality, using the same imaging technology as the highly regarded MSW-900. The XDCAM takes recording to the next level, utilizing non-linear optical Blue Laser technology. Less time logging, capturing and digitizing footage allows videographers to move seamlessly between acquisition and post-production. This increase in efficiency will result in shorter production times leading to higher profitability.
If you own a Sony camcorders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sony PDW-530 XDCAM Camcorder PDW530 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sony PDW-530 XDCAM Camcorder PDW530:
Image Device 2/3" Power HAD EX 3CCD, 16:9/4:3 Switchable
Lens Mount 2/3" 48 Bayonet Mount
Signal-to-Noise Ratio 65 dB
Resolution 980 Lines 4:3 Mode
980 Lines 16:9 Mode
Sensitivity f/11 @ 2000 Lux with 3200K
Minimum Illumination 0.13 Lux with F1.4, +48 dB Gain
Signal System DVCAM: NTSC
MPEG IMX: MPEG-2
Vertical Smear -140 dB
Built-in Filters CC Filter
A: Cross Filter
B: 3200K
C: 4300K
d: 6300K

ND Filter
1: Clear
2: 1/4 ND
3: 1/16 ND
4: 1/64 ND
LCD Monitor 2.5" (6.3 cm)
Speaker Yes
Viewfinder 2" Monochrome, quick start type
4:3 Mode: 600 TV Lines (at Screen Center)
16:9 Mode: 450 TV Lines (at Screen Center)
Microphone Yes
Scan Matching Yes
Memory Card Slot Yes, Memory Stick
Shutter Speed Scan Mode: I (interlaced)
1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000 (sec.)

Scan Mode: PsF (progressive)
1/40, 1/60, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/2000 (sec.)

Scan Mode: 24P
1/32, 1/48, 1/96, 1/125, 1/250, 1/500, 1/1000, 1/2000 (sec.)
Gain Selection -3, 0, 3, 6, 9, 12, 18, 24, 30, 36, 42, 48 dB
Format DVCAM, MPEG IMX
Maximum Recording Time DVCAM: 85 min
MPEG IMX: 45/55/68 min (50/40/30 Mbps)
Audio Dynamic Range 85 dB min.
Audio Signal Format DVCAM: 16 bits, 48 kHz
MPEG IMX: 16/24 bits, 48 kHz, 4 Channels
Audio Frequency Response 20 Hz to 20 kHz-1.0 dB
Signal to Noise Ratio Not Specified by Manufacturer
Input and Output Connectors Audio In CH1/CH2- XLR, 3-pin, female
Time Code- BNC (x 1 input, 1 output)
Genlock- BNC (x 1 input)
Sync- BNC (x 1 output)
Mic Audio- XLR (x 2 input)
Line Audio- RCA (x 2 output)
Headphone- Mini Stereo (x 1)
DC Power- XLR, 4-pin, male (x1 input, x1 output Lens- 12-pin
Remote- 8-pin
Light- 2-pin
i.LINK- 6-pin
Power Requirements 12 VDC
Power Consumption 36 Watts
Operating Temperature 32° to 104° F
0° to 40° C
Dimensions (WxHxD) 13.13 x 10.63 x 5"
33.2 x 26.9 x 12.4 cm
Weight 9 lb
4.1 kg
Packaging Info
Package Weight 17.85 lb
The user manual for the Sony PDW-530 XDCAM Camcorder PDW530 can be downloaded in .pdf format if it did not come with your new camcorders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sony users keep a unique electronic library for Sony camcorderss, where you can use our link to download the user manual for the Sony PDW-530 XDCAM Camcorder PDW530.

The user manual lists all of the functions of the Sony PDW-530 XDCAM Camcorder PDW530, all the basic and advanced features and tells you how to use the camcorders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sony service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sony PDW-530 XDCAM Camcorder PDW530. User manuals are also available on the Sony website under Professional Video - Professional Camcorders - Camcorders.
