User manual for the Sony UNIOPL7T2 7" Pressurized Outdoor Dome UNI-OPL7T2

The user manual for the Sony UNIOPL7T2 7" Pressurized Outdoor Dome UNI-OPL7T2 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Mounts & Housings - Housings.

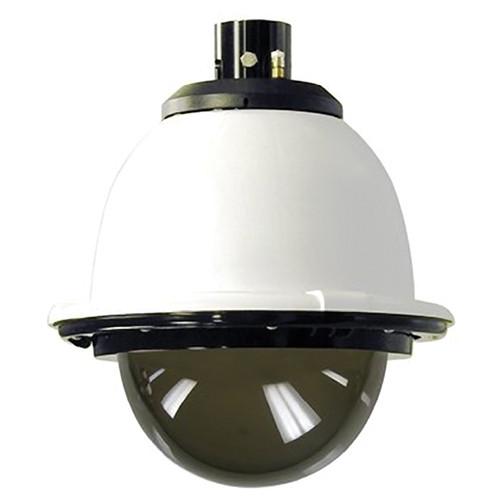

The Sony UNIOPL7T2 7" Pressurized Outdoor Dome Housing (Tinted Bubble) offers excellent protection to the SNC series cameras from rain, snow, wind, dust, pollution, and insects.

For maximum protection from the elements, this outdoor housing uses internal pressure produced by dry nitrogen to seal off even the smallest openings. The Schrader valve of the housing maintains the pressure in the housing, while the pressure relief valve helps release excess pressure. In addition, an integrated heater and blower system shields the camera in low temperatures and prevents the lower bubble from fogging up in high humidity.

Made of durable engineered plastic, the top body of the housing is flame-retardant and UV protected, making it an excellent choice for installation in outdoor and high-risk locations. Designed for discreet surveillance, the housing is equipped with a tinted lower dome that helps conceal the direction of the camera without interfering with the camera's view.
If you own a Sony housings and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sony UNIOPL7T2 7" Pressurized Outdoor Dome UNI-OPL7T2 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sony UNIOPL7T2 7" Pressurized Outdoor Dome UNI-OPL7T2:
Specifications
    General Attributes
    Body High-impact engineered plastic, UV protected, with a UL flame rating of 94-5V
    Viewing dome construction Polycarbonate
    Camera included No
    Environment Outdoor
    Housing Style Standard
    Style Pressurized pendant
    RoHS Yes
    IP Rating 67
    NEMA Rating 4x
    UL Yes
    CUL Yes
    CE Yes
    Environmental
    Heater Activates At 60°F (16°C)
    Heater Deactivates At 80°F (26°C)
    Effective Projected Area (EPA) Approximately 0.12 m²
    Operating Humidity Up to 100%
    Operating Temperature -50 to 120°F (-45 to 49°C)
    Electrical
    Heater Yes
    Blower Yes
    Power Input 24 VAC
    Power (VA) 52
    Power 80 W (52 W for heater/blower)
    Operating Temperature -40 to 120°F (-40.0 to 48.9°C)
    Mechanical
    Construction 0.125" (3 mm) engineered plastic
    Wall Mount Bracket Cast aluminum
    Schrader valve Nitrogen input (Pressurized models)
    Pressure Relief Valve 5 psi
    Power Connector 10 pin hermetically sealed
    Size (HxWxD) 14.4 x 11.2 x 11.2" (365.76 x 284.48 x 284.48 mm)
    Weight 11 lb (5 kg)
    The user manual for the Sony UNIOPL7T2 7" Pressurized Outdoor Dome UNI-OPL7T2 can be downloaded in .pdf format if it did not come with your new housings, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sony users keep a unique electronic library for Sony housingss, where you can use our link to download the user manual for the Sony UNIOPL7T2 7" Pressurized Outdoor Dome UNI-OPL7T2.

    The user manual lists all of the functions of the Sony UNIOPL7T2 7" Pressurized Outdoor Dome UNI-OPL7T2, all the basic and advanced features and tells you how to use the housings. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sony service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sony UNIOPL7T2 7" Pressurized Outdoor Dome UNI-OPL7T2. User manuals are also available on the Sony website under Surveillance - Surveillance Video - Mounts & Housings - Housings.
