User manual for the Sony VPL-SX630 Ultra Short Throw XGA Projector VPL-SX630

The user manual for the Sony VPL-SX630 Ultra Short Throw XGA Projector VPL-SX630 provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

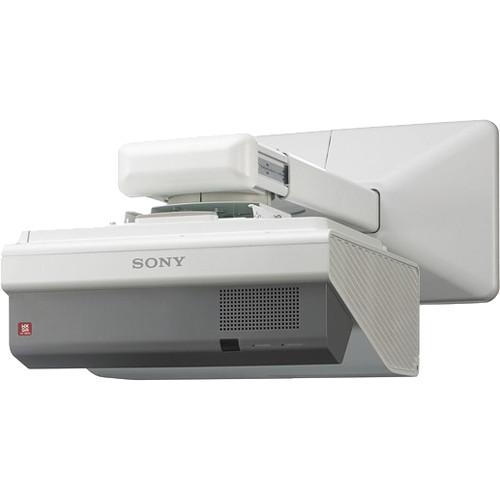

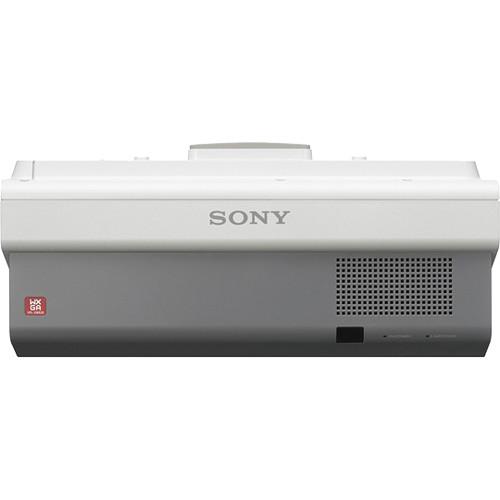

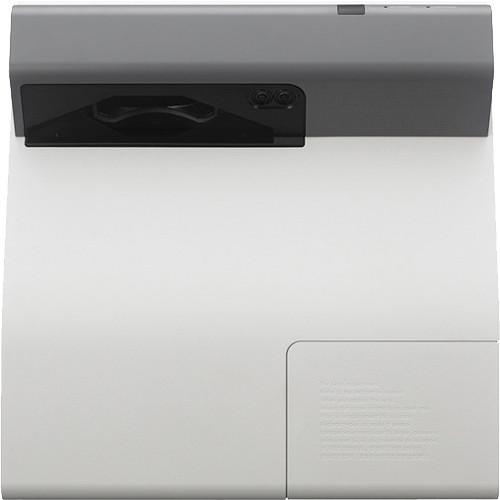

With a 0.27 to 0.29:1 throw ratio, the VPL-SX630 Ultra Short Throw XGA Projector from Sony is optimized for classrooms and other installations where the projector will be mounted just inches from the screen. A single lamp provides 3200 ANSI lumens of brightness in Bright mode, and a three-chip LCD imaging device renders a 1024 x 768 (XGA) resolution, 4:3 aspect ratio image. Through scaling the projector can also support a range of non-native resolutions, up to Full HD (1920 x 1080) for video and UXGA (1600 x 1200) for computer sources.

Multiple ports allow the VPL-SX630 to receive video and audio from a variety of sources, including computers, Blu-ray Disc and DVD players, document cameras, HDTV devices, and more. It features two VGA ports, an HDMI port, an S-video port, and a composite port. A VGA output mirrors the selected VGA input so that you can connect a computer monitor or pass the video along to a second downstream device without needing a distribution amplifier. There are also three analog audio inputs, two on 3.5mm mini jack connectors paired with the VGA inputs and one on stereo RCA that can service either the S-video or composite input. Audio can be output to amplified speakers or a sound system using a variable 3.5mm mini jack, or directly using the projector's built-in 16-watt mono speaker.

For giving "PC Free" presentations, there is a USB type A male port that accepts FAT32-formatted media and supports a variety of still image formats. This port also allows you to install the optional IFU-WLM3 Wi-Fi module (available separately), enabling wireless presentation from a computer or mobile device. A USB type B female port gives you another way of connecting the projector to computer - especially helpful when an HDMI or VGA output is unavailable or tied up by a monitor.
