User manual Sony WCS-999 Wireless System WCS999

Operating instructions and pdf manual for use - Sony WCS-999 Wireless System WCS999 User manual, User manual Sony WCS-999 Wireless System WCS999, Sony, WCS-999, Wireless, System, WCS999, Video


User manual for Sony WCS-999 Wireless System WCS999

Overall rating 3.5
Overall Rating: 3.5

70% of respondents would recommend this to a friend.
Sony  WCS-999 Wireless System WCS999
  • Manufacturer: Sony
  • Basic description and contents of package
  • Product classification: Pro Audio - Location Sound - Wireless Systems
  • Safety instructions
  • Startup and operation of the wireless systems
  • Tips for setting up your Sony
  • Settings and expert assistance
  • Contact Sony service
  • Troubleshooting
  • Warranty information
  • Price: 116 USD
We recommend checking out our discussion threads on the Sony WCS-999 Wireless System WCS999, which address similar problems with connecting and setting up Wireless Systems Sony.



User manual for the Sony WCS-999 Wireless System WCS999

The user manual for the Sony WCS-999 Wireless System WCS999 provides necessary instructions for the proper use of the product Pro Audio - Location Sound - Wireless Systems.

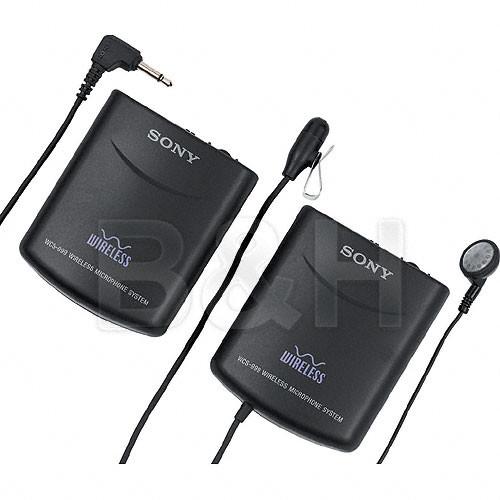

The Sony WCS-999 provides an affordable wireless solution for video interviews, conferences, lectures, meetings etc. The package provides a portable camera-mount receiver, body-pack transmitter and lavalier microphone. The system operates via the 900 MHz FM band for resulting in high RF performance and extended range of up to 150 feet in ideal conditions. The omni-directional microphone offers a generous pick up at the off-axis sections of the microphone. A single ear piece headphone is provided and attach's to the receiver for accurate monitoring of incoming audio signal. The "Mic Mixing" feature allows a second wired microphone to attach directly to the receiver, the signals are mixed to the output of the receiver.
If you own a Sony wireless systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sony WCS-999 Wireless System WCS999 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sony WCS-999 Wireless System WCS999:
System
Type of System Camera Mountable Lavalier 900 MHz Wireless
RF Carrier Frequency Range 912 MHz- 915 MHz
Working Range Up to 150' (Under Ideal Conditions)
Overall Frequency Response 100 Hz - 15 kHz (+/-3 dB)
Signal-to-Noise Ratio Not Specified by Manufacturer
Dynamic Range: Greater than 78dB
# Of Channels 3 (Channel 1: 912.900MHz; Channel 2: 913.800MHz; Channel 3: 914.400 MHz)
# Of Simultaneous Systems Up to 3
Receiver
Type of Receiver 900MHz FM Wireless Camera Mountable Receiver
Type of Outputs Earphone Jack: Monaural Mini Plug
Mic Mixing Jack: Monaural Mini Plug
Output Plug: Monaural Mini Plug
Headphone Monitoring Yes
Power Requirements DC 1.5V
Battery Type/Approx. Life AA, 20 Hours
Display Not Specified by Manufacturer
Mounting Options Camera/Belt Mountable
Antenna Type Integral
Dimensions 2.375 x 2.75 x .875" (60 x 70 x 22.5mm) HxWxD
Weight 3.1 oz. (88 g)
Transmitter
Type of Transmitter Camera Mountable FM (900 MHz)
Type of Input Connector Stereo Mini-Jack with Plug-In Power
Type of Microphone Lavalier (Model # Not Specified by Manufacturer)
Maximum Sound Pressure Level: Greater than 114dB SPL
Microphone Cord Length: Approximately 39" (1 meter)
Polar Pattern Omni-directional
Interchangeable Mic Heads Yes, the Sony ECM-T145 Electret Condenser Lavalier Microphone, for example, may be Added for Microphone Mixing
Battery Type/Approx. Life AA, 20 Hours
Mute Switch Not Specified by Manufacturer
Level Control Auto Gain Compressor
Antenna Type Integral
Display Not Specified by Manufacturer
Dimensions 2.375 x 2.75 x .875" (60 x 70 x 22.5mm) HxWxD
Weight 3.1 oz. (88 g) Including Batteries
Packaging Info
Package Weight 0.5 lb
Box Dimensions (LxWxH) 10.0 x 7.0 x 2.0"
The user manual for the Sony WCS-999 Wireless System WCS999 can be downloaded in .pdf format if it did not come with your new wireless systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sony users keep a unique electronic library for Sony wireless systemss, where you can use our link to download the user manual for the Sony WCS-999 Wireless System WCS999.

The user manual lists all of the functions of the Sony WCS-999 Wireless System WCS999, all the basic and advanced features and tells you how to use the wireless systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sony service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sony WCS-999 Wireless System WCS999. User manuals are also available on the Sony website under Pro Audio - Location Sound - Wireless Systems.
