User manual Sony XDS1000 Professional Media Station XDS-1000

Operating instructions and pdf manual for use - Sony XDS1000 Professional Media Station XDS-1000 User manual, User manual Sony XDS1000 Professional Media Station XDS-1000, Sony, XDS1000, Professional, Media, Station, XDS-1000, Video


User manual for Sony XDS1000 Professional Media Station XDS-1000

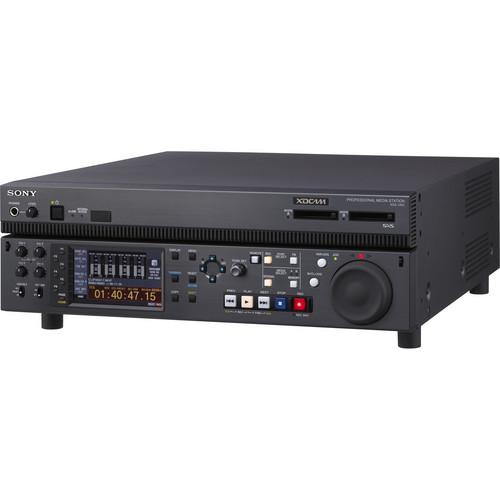

Sony  XDS1000 Professional Media Station XDS-1000
  • Manufacturer: Sony
  • Basic description and contents of package
  • Product classification: Professional Video - Recorders & Duplication - P2 & XDCAM Players/Recorders
  • Safety instructions
  • Startup and operation of the p2 & xdcam players/recorders
  • Tips for setting up your Sony
  • Settings and expert assistance
  • Contact Sony service
  • Troubleshooting
  • Warranty information
  • Price: 13 USD
We recommend checking out our discussion threads on the Sony XDS1000 Professional Media Station XDS-1000, which address similar problems with connecting and setting up P2 & XDCAM Players/Recorders Sony.



User manual for the Sony XDS1000 Professional Media Station XDS-1000

The user manual for the Sony XDS1000 Professional Media Station XDS-1000 provides necessary instructions for the proper use of the product Professional Video - Recorders & Duplication - P2 & XDCAM Players/Recorders.

The Sony XDS-1000 Professional Media Station with 1 TB internal hard disk drive (HDD) storage offers approximately 30 hours of recording with 50 Mbps clips. It provides up to up to 200 Mbps of bandwidth for file transfers and base band I/O operations. The unit also supports up to 50 GB optical disc (professional disc media) for backup.

Using HD422 50 Mbps recording, the XDS-1000 Professional Media Station supports 1920 x 1080 and 1280 x 720 resolutions, and uncompressed 8-channel 24-bit /48 kHz linear PCM audio. It also supports all XDCAM and XDCAM EX file formats, codecs and metadata and protocols such as VDCP, FTP and CIFS. The media station is compatible with HD and SD signals, and offers up/down and cross-conversion system for operational flexibility

Offering up to 4 clients for file transfer and 4 clients for network control, the XDS-1000 Professional Media Station ensures high-speed file transfers and multiple file access over the network. The unit allows you to access a newly created file while it is being recorded. In addition, it allows you to edit the file and transfer it to other servers.

You can copy the data from a Professional Disc media or SxS card to the internal memory without affecting REC/PLAY operation. Non-linear editors (NLEs) can directly access the internal storage content through the GigE network. In live recording, the user can access the updated file and transfer it to other servers (Stream Chase). With RAID-4 system, the XDS-1000 Professional Media Station offers uninterrupted operation even when the HDD fails.

The front panel buttons allow you to individually control the Professional Disc drive, SxS memory card slots and internal storage. In case of network problems, you can play out a video program from the Professional Disc media directly, via front panel operation in local mode. A Jog/Shuttle dial ensures smooth motion picture. Equipped with a traditional VTR-like user interface, the XDS-1000 Professional Media Station is easy to use, configure and integrate into the overall workflow.

The XDCAM Professional Media Station offers fast start-up and safe shut-down. You can remotely control the unit via Ethernet using the XDCAM Browser. The media station has low power consumption (170 W) and a silent operation. It is ideal for use in OB vans, sports/live production office and studios.
If you own a Sony p2 & xdcam players/recorders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sony XDS1000 Professional Media Station XDS-1000 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sony XDS1000 Professional Media Station XDS-1000:
General Specifications
Power Requirements AC 100 V to 240 V, 50/60 Hz
Power Consumption 170 W
Operating Temperature +5 to +40°C (+41 to +104°F)
Storage Temperature -20 to +60°C (-4 to +140°F)
Humidity 25 to 90% (relative humidity)
Mass 15.5 kg (34 lb 2 oz)
Dimensions (W x H x D) 16.75 x 5.25 x 18.125" / 424 x 132 x 460 mm
Search Speed Range Jog mode: -1 to +1 times normal speed
Variable mode: -2 to +2 times normal speed
Shuttle mode: -20 to +20 times normal speed:
F.Fwd/Rev: -35 to +35 times normal speed
Inputs & Outputs
Reference Input BNC x 2 (including loop through), HD/SD HD Tri-level sync (0.6 Vp-p/75 Ω/negative), HD/SD or SD blackburst/composite sync (0.286 Vp-p/75 Ω/negative), HD/SD
SDI Input BNC x 1, HD (HD/SD switchable)
SMPTE 292M (w/embedded audio), HD
SMPTE 259M (w/embedded audio), HD
Analog Audio Input XLR 3-pin (female) x 2 (channel selectable)
+4/0/-3/-6 dBu (selectable)
10 kΩ, balanced
Digital Audio Input BNC (x4) - 8 channels total (2 ch each) AES-3id-2001
Composite Output BNC (x1) - 1.0 Vp-p/75 Ω/negative, SMPTE 170M
SDI Output BNC (x 2), HD 1: SMPTE 292M (w/embedded audio), HD
2: SMPTE 292M (w/embedded audio), character On/Off, HD
BNC (x 2), SD
1: SMPTE 259M (w/embedded audio), SD
2: SMPTE 259M (w/embedded audio), character On/Off, SD
Analog Audio Output XLR 3-pin (male) x 2 (channel selectable)
+4/0/-3/-6 dBu (selectable), 600 Ω, Lo-Z, balanced
Digital Audio Output BNC (x4) - 8 channels total (2 ch each) AES-3id-2001
Headphone Output JM-60 Stereo phone jack x 1
-13 dBu, 8 Ω, unbalanced
Time Code BNC x 1, SMPTE time code, 1.0 Vp-p/75 Ω/unbalanced
Video Control D-sub 9-pin (female) x 1, EIA RS-423
Ethernet RJ-45 x 1
1000Base-T: IEEE802.3ab
100Base-TX: IEEE802.3u
10Base-T: IEEE802.3
USB Hi-Speed USB 2.0 (Front: x1, Rear: x4)
Remote Input D-sub, 9-pin (female) (x2), RS-422A
Sony 9-pin VTR protocol (player commands only)
VDCP (play and record commands)
AC Input x 1, 100 to 240 V, 50/60 Hz
GPIO D-sub, 15-pin (female) (x1), Input: TTL Level, Output: open collector
Audio Performance Specifications
Sampling Frequency 48 kHz
Quantization 24 bits
Frequency Response 20 Hz to 20 kHz +0.5/-1.0 dB (0 dB at 1 kHz)
Dynamic Range More than 90 dB
Distortion Less than 0.05% (at 1kHz)
Headroom 20/18/16/12 dB (selectable)
Built-In Display Specifications
Display 4.3" type color LCD monitor
Packaging Info
Package Weight 43.45 lb
Box Dimensions (LxWxH) 24.0 x 13.0 x 11.0"
The user manual for the Sony XDS1000 Professional Media Station XDS-1000 can be downloaded in .pdf format if it did not come with your new p2 & xdcam players/recorders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sony users keep a unique electronic library for Sony p2 & xdcam players/recorderss, where you can use our link to download the user manual for the Sony XDS1000 Professional Media Station XDS-1000.

The user manual lists all of the functions of the Sony XDS1000 Professional Media Station XDS-1000, all the basic and advanced features and tells you how to use the p2 & xdcam players/recorders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sony service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sony XDS1000 Professional Media Station XDS-1000. User manuals are also available on the Sony website under Professional Video - Recorders & Duplication - P2 & XDCAM Players/Recorders.
