User manual Sound Devices 302 Portable 3 Channel Field Mixer 302

Operating instructions and pdf manual for use - Sound Devices 302 Portable 3 Channel Field Mixer 302 User manual, User manual Sound Devices 302 Portable 3 Channel Field Mixer 302, Sound, Devices, 302, Portable, 3, Channel, Field, Mixer, 302,


User manual for Sound Devices 302 Portable 3 Channel Field Mixer 302

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

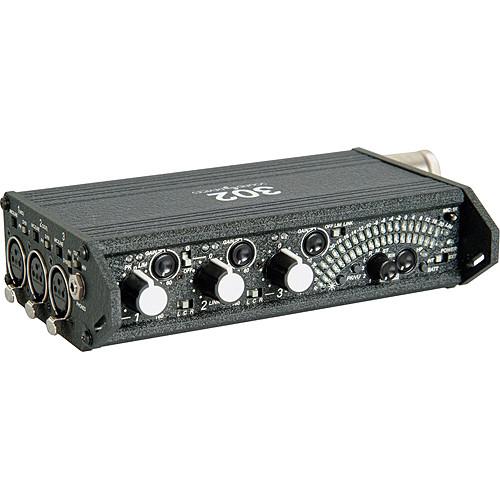

Sound Devices 302 Portable 3 Channel Field Mixer 302
  • Manufacturer: Sound Devices
  • Basic description and contents of package
  • Product classification: Pro Audio - Location Sound - Field Mixers
  • Safety instructions
  • Startup and operation of the field mixers
  • Tips for setting up your Sound Devices
  • Settings and expert assistance
  • Contact Sound Devices service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Sound Devices 302 Portable 3 Channel Field Mixer 302, which address similar problems with connecting and setting up Field Mixers Sound Devices.



User manual for the Sound Devices 302 Portable 3 Channel Field Mixer 302

The user manual for the Sound Devices 302 Portable 3 Channel Field Mixer 302 provides necessary instructions for the proper use of the product Pro Audio - Location Sound - Field Mixers.

The Sound Devices 302 is a professional, compact 3 channel audio mixer designed to meet the demands of professional film, ENG / EFP and broadcast applications. Its compact design, extensive feature set and superior audio quality justify the mixer's popularity among industry professionals. The 302 features 3 balanced XLR inputs that are capable of accepting mic or line-level signal (user switchable). The output stage features stereo (L/R) balanced XLR outputs that are also mic or line level switchable (factory set to line, refer to manual for mic level set up).
If you own a Sound Devices field mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sound Devices 302 Portable 3 Channel Field Mixer 302 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Sound Devices 302 Portable 3 Channel Field Mixer 302Download user manual for Sound Devices 302 Portable 3 Channel Field Mixer 302
(PDF file, 1.32 MB)
Additional parameters of the Sound Devices 302 Portable 3 Channel Field Mixer 302:
Inputs 3 - 3-pin LR female: microphone / line level level
Output 2 - 3-pin LR male: microphone / line level refer to manual for set up
Monitor/Headphone Out PHONES: 1/8" (3.5mm) mini stereo output jack
ALT I/O RN: 1/8" (3.5mm) mini stereo output jack - monitor input / alternate ch. 4&5 inputs refer to manual for set up
TAPE OUT/MIX OUT: TA3-type unbalanced
Link Input/Output Above TAPE OUT / MIX OUT is also used to link to the Mix In of a 442 or 302
Impedance Inputs:
2.5k ohms (actual), XLR, mic setting, < 500 ohm Mics
16k ohms (actual), XLR, line setting, < 2k ohm outputs
Outputs:
150 ohms (actual), XLR factory Line setting, > = 600 ohm mics
150 ohms (actual), mic (lowest) setting, < 2k ohm outputs
Gain XLR Inputs:
75dB, mic / 35dB, line - XLR output @ factory (line) setting
0-16dB 2dB steps, mic / 40-56dB 2dB steps, line - XLR output attenuated
Hum & Noise EIN: -126dBu (-128 BV) max (22Hz - 22kHz bandwidth , flat filter, trim control fully up)
Frequency Response 20Hz - 30kHz, +0.2, -0.5dB, -1dB @ 5Hz and 50kHz typical
Distortion THD + Noise: 0.007% typical (1kHz, +4dBu at Line Out) 0.009 max (50Hz to 20kHz, +18dBu at Line out, fader fully up)
Metering Stereo (L/R) 20 segment, sunlight viewable LED meters
Control Voltage Out No
Phantom Power 12V, 12V-T & 48V
Operating Temperature Operating: -20 degrees to 60 degrees Celsius, 0 to 95% relative humidity (non-condensing)
Storage: -40 degrees to 85 degrees Celsius
Power 130mA @ 4.5V, internal batteries, idle, no phantom
55mA @ 12V external DC, idle, no phantom
Dimensions 1.8 x 8.4 x 4.5" (47 x 214 x 114mm) (HxWxD)
Weight 1.8 lbs (0.85kg) unpackaged with three alkaline AA batteries
Packaging Info
Package Weight 3.0 lb
Box Dimensions (LxWxH) 10.8 x 7.4 x 4.9"
The user manual for the Sound Devices 302 Portable 3 Channel Field Mixer 302 can be downloaded in .pdf format if it did not come with your new field mixers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sound Devices users keep a unique electronic library for Sound Devices field mixerss, where you can use our link to download the user manual for the Sound Devices 302 Portable 3 Channel Field Mixer 302.

The user manual lists all of the functions of the Sound Devices 302 Portable 3 Channel Field Mixer 302, all the basic and advanced features and tells you how to use the field mixers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sound Devices service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sound Devices 302 Portable 3 Channel Field Mixer 302. User manuals are also available on the Sound Devices website under Pro Audio - Location Sound - Field Mixers.
