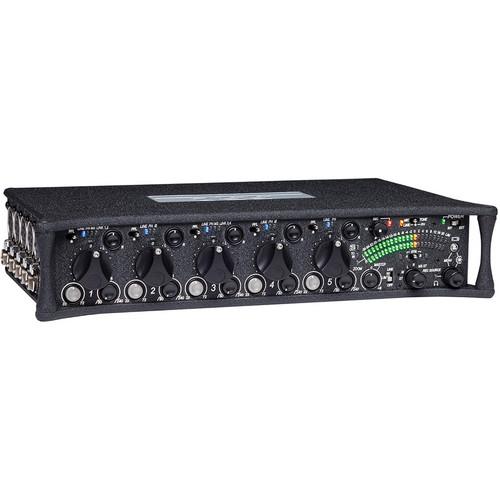

The Sound Devices 552 Production Mixer combines professional-quality analog and digital technologies in a robust metal housing to provide a compact and lightweight mixing and recording solution for a variety of applications. The unit features 5 transformer-balanced XLR mic inputs, each with its own limiter and sweepable high-pass filter. Each of the inputs also has its own pre-or-post-fader direct output. It also features 3 sets of master outputs and several unbalanced outputs, allowing you to connect to a variety of recorders, cameras, and more. The master XLR outputs can be set for analog or digital operation, and are capable of sending 4 channels of 24-bit AES/EBU signals.
The 552 also features an internal stereo recorder, which can capture WAV or MP3 files at either 16-bit or 24-bit; with sample rates from 44.1kHz all the way up to 96kHz. The unit accepts SD and SDHC flash memory cards, which are widely-available and feature no moving parts for exceptional reliability. A simple joystick control on the 552's front panel lets you take command of recording functions.
All of this technology is packed into a compact unit that weighs less than 5 pounds. The top and bottom chassis panels are constructed from molded, metalized carbon fiber for exceptional durability. The front panel is gasketed for excellent moisture resistance. The unit can operate on a set of 4 AA batteries, or an external 10-18VDC power supply.
If you own a Sound Devices field mixers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Sound Devices 552 Portable 5-Channel Production Mixer and 552 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sound Devices 552 Portable 5-Channel Production Mixer and 552:
| Inputs || 5 x Balanced XLR Inputs |
1 x DC Power Input
| Recording Media || Accepts SD / SDHC / SDXC cards, high-speed class 10 cards are recommended - please see manufacturer's site for list of approved cards |
| Outputs || 5 x TA3 Direct Outputs |
2 x Analog/Digital XLR Outputs
1 x 10-Pin Hirose Mic/Line "Return A" Output
1 x 3.5mm "Return B" Output
1 x 3.5mm Tape Output
1 x 3.5mm Mono Mic Output
1 x TA3 "Return B"/Time Code In Connector
1 x TA3 Balanced Stereo Output (2 Jacks, L/R)
1 x TA3 Tape Output
1 x TA5 Output
1 x 3.5mm Headphone Output
1 x 1/4" Headphone Output
| Impedance || Input: |
XLR Mic: 2 kOhms
XLR Line: 16 kOhms
Return A/B: 20 kOhms
XLR Line: 85 Ohms
XLR -10 Setting: 3.2 kOhms
XLR Mic: 150 Ohms
10-Pin Hirose Line: 85 Ohms
10-Pin Hirose -10 Setting: 3.2 kOhms
10-Pin Hirose Mic: 150 Ohms
TA3 Mic/Line: 1 kOhms
TA3 Direct Outs: 1 kOhms
Tape Outs: 1.8 kOhms
Mono Mic Out: 150 Ohms
Headphones: 50 Ohms
| Gain || 93dB (Mic In to Line Out) |
53dB (Mic In to Mic Out)
79dB (Mic In to Tape Out)
107dB (Mic In to Headphone Out)
| THD & Noise || 0.09% Max (50Hz - 20kHz, +18dBu at Line Out, Fader Fully Up) |
| Frequency Response || 20Hz - 30kHz (+0.2, -0.5dB) |
| Metering || LED Meters |
| Control Voltage Out || Not Specified by Manufacturer |
| Phantom Power || 12V and 48V Phantom (Each Mic Selectable) |
| Operating Temperature || -20°C to 60°C, 0 to 90% Relative Humidity |
| Power || Internal ±16V (Bi-Polar) Regulated Audio Rails |
3.2-8V Range Internal Batteries
Isolated (Floating) External DC Input Jack, 5-18V
| Dimensions (HxWxD) || 2.1 x 11 x 6.6" (53 x 279 x 168mm) |
| Weight || 4.4 lbs (2kg) (Without Batteries) |
| Package Weight || 6.45 lb |
| Box Dimensions (LxWxH) || 16.1 x 11.0 x 5.1" |
