User manual Soundcraft FX16ii 16-Channel Mixer with Lexicon Effects RW5757US

Operating instructions and pdf manual for use - Soundcraft FX16ii 16-Channel Mixer with Lexicon Effects RW5757US User manual, User manual Soundcraft FX16ii 16-Channel Mixer with Lexicon Effects RW5757US, Soundcraft, FX16ii, 16-Channel, Mixer, with,


User manual for Soundcraft FX16ii 16-Channel Mixer with Lexicon Effects RW5757US

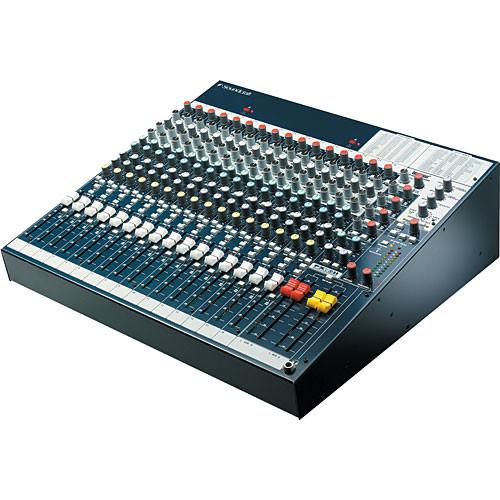

Soundcraft FX16ii 16-Channel Mixer with Lexicon Effects RW5757US
  • Manufacturer: Soundcraft
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Analog Recording Mixers
  • Safety instructions
  • Startup and operation of the analog recording mixers
  • Tips for setting up your Soundcraft
  • Settings and expert assistance
  • Contact Soundcraft service
  • Troubleshooting
  • Warranty information
  • Price: 749 USD
We recommend checking out our discussion threads on the Soundcraft FX16ii 16-Channel Mixer with Lexicon Effects RW5757US, which address similar problems with connecting and setting up Analog Recording Mixers Soundcraft.



User manual for the Soundcraft FX16ii 16-Channel Mixer with Lexicon Effects RW5757US

The user manual for the Soundcraft FX16ii 16-Channel Mixer with Lexicon Effects RW5757US provides necessary instructions for the proper use of the product Pro Audio - Recording - Analog Recording Mixers.

The Soundcraft / Spirit FX16ii Mixer provides 16-channels of powerful mixing and flexible routing in recording, sound reinforcement and monitor mixing applications. A total of 16 input channels are provided and feature 16 direct outputs that are capable of pre or post fader signal routing to a multitrack recorder, additional mixer, monitors etc.
If you own a Soundcraft analog recording mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Soundcraft FX16ii 16-Channel Mixer with Lexicon Effects RW5757US in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Soundcraft FX16ii 16-Channel Mixer with Lexicon Effects RW5757USDownload user manual for Soundcraft FX16ii 16-Channel Mixer with Lexicon Effects RW5757US
(PDF file, 4.89 MB)
Additional parameters of the Soundcraft FX16ii 16-Channel Mixer with Lexicon Effects RW5757US:
Total # Of Inputs 16
Mic/Line Inputs 16 1/4" TRS Phone
16 XLR Microphone
Stereo Line Inputs No
In-Line Inputs/Returns No
AUX Sends 3 - Stereo 1/4" TRS Phone
AUX Returns 4 - 1/4"TRS Paired Phone
Inserts TRS 1/4" Phone All Input Channels and Mix Output
BUS (Group) Outputs 16 - 1/4" TRS Phone Direct Outputs
2 Trk Master I/O No
ALT I/O Sub Outputs - 1/4" TRS Phone x2
Sub Inputs - 1/4" TRS Phone x2
Monitor Outputs Mix Outputs: 3-pin XLR x2
Monitor Outputs: L/R 1/4" TRS Phone
EQ Section Hi Frequency - 12kHz +/- 15dB
Mid Frequency Swept - 150Hz to 3.5kHz +/- 15dB
Low Frequency - 80Hz +/- 15dB
Solo/Mute Mute, Dir/Pre, Sub, Mix and Solo
Channel Level Control 100mm Fader
Trim/Gain Control Rotary Control
Phantom Power +48V
Metering 10 Segment Stereo LEDs
Frequency Response 20Hz to 20kHz +/-1dB
Dynamic Range Not Specified By Manufacturer
Signal-to-Noise Ratio Mic Input E.I.N. (maximum gain) 127dBu (150 Ohm Source)
Total Harmonic Distortion (THD) < 0.09% @ 1kHz
Power Supply Less than 40W
Dimensions (WxHxD) 17.46 x 5.83 x 17.42 (443.6 x 148 x 442.5mm)
Weight Not Specified By Manufacturer
Packaging Info
Package Weight 26.32 lb
Box Dimensions (LxWxH) 22.6 x 21.1 x 10.5"
The user manual for the Soundcraft FX16ii 16-Channel Mixer with Lexicon Effects RW5757US can be downloaded in .pdf format if it did not come with your new analog recording mixers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Soundcraft users keep a unique electronic library for Soundcraft analog recording mixerss, where you can use our link to download the user manual for the Soundcraft FX16ii 16-Channel Mixer with Lexicon Effects RW5757US.

The user manual lists all of the functions of the Soundcraft FX16ii 16-Channel Mixer with Lexicon Effects RW5757US, all the basic and advanced features and tells you how to use the analog recording mixers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Soundcraft service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Soundcraft FX16ii 16-Channel Mixer with Lexicon Effects RW5757US. User manuals are also available on the Soundcraft website under Pro Audio - Recording - Analog Recording Mixers.
