User manual for the Soundcraft GB8 - Live Sound / Recording Console RW5696SM

The user manual for the Soundcraft GB8 - Live Sound / Recording Console RW5696SM provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Sound Reinforcement Mixers.

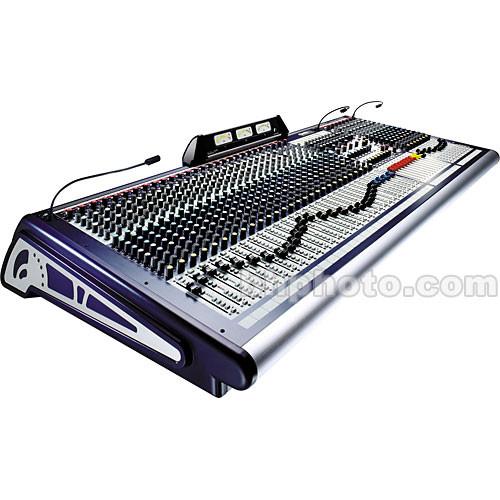

The Soundcraft GB8 live console series is designed to deliver the audio fidelity and mixing capabilities necessary in front-of-house (FOH) or monitor mixing applications in large or small venues. The GB8 is available in 16, 24, 32, 40 and 48 channel frames to suite specific needs in live sound mixing.
If you own a Soundcraft sound reinforcement mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Soundcraft GB8 - Live Sound / Recording Console RW5696SM in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Soundcraft GB8 - Live Sound / Recording Console RW5696SM:
Total # Of Inputs 32 Total
Mic/Line Inputs 32 Line: 1/4" TRS Phone
32 Microphone: 3-pin XLR
Stereo Line Inputs 4 Stereo: L/R Paired 1/4" Phone Line & 3-pin XLR Microphone
In-Line Inputs/Returns No
AUX Sends 8 Aux Sends
AUX Returns 4 Stereo Returns
Inserts 1/4" TRS Phone - Mono Inputs, Main Output and Subgroup Outputs
BUS (Group) Outputs 8 Subgroups: Balanced 3-pin XLR
2 Trk Master I/O Mix L/R: Stereo Paired 3-pin XLR Balanced
ALT I/O ALT Stereo: L/R Stereo Paired 1/4" Output
Monitor Outputs Monitor: L/R Stereo Paired 1/4" TRS Phone
EQ Section High Filter: 13kHz, +/- 15dB, 2nd order shelving
Hi-Mid: 550Hz - 13khz, +/- 15dB, Q=1.5
Lo-Mid: 80Hz - 1.9kHz, +/- 15dB, Q=1.5
Low Filter: 80Hz, +/- 15dB, 2nd order shelving
Solo/Mute All Input Channels
Channel Level Control 100mm Faders
Trim/Gain Control Rotary Potentiometers
Phantom Power +48V Phantom individually switched
Metering Input Channels: Single tri-color 4-segment LED bargraph
Outputs: 11 tri-color 12-segment LED bargraphs, + Meterpod with 3 VU meters (L/R/C)
Frequency Response 20Hz to 20kHz <1dB
Dynamic Range not specified by manufacturer
Signal-to-Noise Ratio Measured RMS, 22Hz to 22kHz Bandwidth
-128dBu Mic E.I.N. @ unity gain, 150 ohms souce impedance
<-82dBu Mix Output, 40 inputs routed to mix
<-83dBu Group & Center Outputs
<-80dBu Aux Outputs
<-89dBu Matrix Outputs
Total Harmonic Distortion (THD) <0.006%Mic sens. -30dBu, +20dBu at all outputs @ 1kHz
Power Supply Internal AC PSU - 85V, 270V AC, 50/60Hz universal input
Power Consumption
Less than 150W
Dimensions 77.2 lbs. (35 kg)
Weight 56.77 x 9.23 x 25.83" (1442 x 235 x 656mm) (WxHxD)
Packaging Info
Package Weight 80.0 lb
Box Dimensions (LxWxH) 63.0 x 31.0 x 12.0"
The user manual for the Soundcraft GB8 - Live Sound / Recording Console RW5696SM can be downloaded in .pdf format if it did not come with your new sound reinforcement mixers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Soundcraft users keep a unique electronic library for Soundcraft sound reinforcement mixerss, where you can use our link to download the user manual for the Soundcraft GB8 - Live Sound / Recording Console RW5696SM.
