User manual Soundcraft LX7 II - 16 Channel Recording Mixer RW5674

Operating instructions and pdf manual for use - Soundcraft LX7 II - 16 Channel Recording Mixer RW5674 User manual, User manual Soundcraft LX7 II - 16 Channel Recording Mixer RW5674, Soundcraft, LX7, II, 16, Channel, Recording, Mixer, RW5674,

User manual for Soundcraft LX7 II - 16 Channel Recording Mixer RW5674

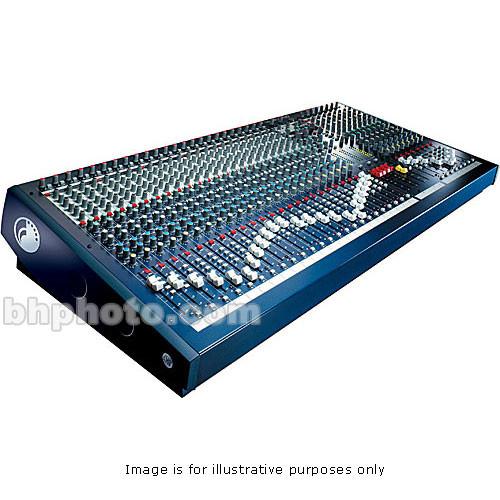

Soundcraft LX7 II - 16 Channel Recording Mixer RW5674
  • Manufacturer: Soundcraft
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Sound Reinforcement Mixers
  • Safety instructions
  • Startup and operation of the sound reinforcement mixers
  • Tips for setting up your Soundcraft
  • Settings and expert assistance
  • Contact Soundcraft service
  • Troubleshooting
  • Warranty information
  • Price: 899 USD
We recommend checking out our discussion threads on the Soundcraft LX7 II - 16 Channel Recording Mixer RW5674, which address similar problems with connecting and setting up Sound Reinforcement Mixers Soundcraft.


User manual for the Soundcraft LX7 II - 16 Channel Recording Mixer RW5674

The user manual for the Soundcraft LX7 II - 16 Channel Recording Mixer RW5674 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Sound Reinforcement Mixers.

The Soundcraft LX7 II series of professional analog consoles improves upon an impressive feature set, suited to meet the demands of professional recording and live sound engineers. The LX7 II series is available in 16, 24 and 32 input configurations. Every input features balanced 1/4" phone line level inputs, direct outputs are featured on the first 16 channels for recording and monitoring applications.
If you own a Soundcraft sound reinforcement mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Soundcraft LX7 II - 16 Channel Recording Mixer RW5674 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Soundcraft LX7 II - 16 Channel Recording Mixer RW5674:
Specifications
    Total # Of Inputs 16 - Total Line Inputs
    Mic/Line Inputs 16 - Balanced 1/4" TRS Phone Inputs
    16 - Balanced XLR Mic Inputs
    Stereo Line Inputs 2 - L/R Stereo Paired 1/4" TRS Phone
    In-Line Inputs/Returns No
    AUX Sends 6 - 1/4" TRS Phone
    AUX Returns 2 - L/R Stereo Paired 1/4" TRS Phone )
    Inserts No
    BUS (Group) Outputs AUX Outputs: 6 - 1/4" TRS Phone
    2 Trk Master I/O Main Outputs: L/R Balanced 3-pin XLR male
    ALT I/O Monitor Output: L/R 1/4" TRS Phone
    2 Trk Input: L/R RCA Phono jacks
    Monitor Outputs Monitor Output: L/R 1/4" TRS Phone
    EQ Section 100Hz, 18dB per octave
    HF: 12kHz, +/-15dB, 2nd order shelving
    Hi-Mid: 550Hz-13kHz, +/-15dB, Q=1
    Lo-Mid: 80Hz-1.9kHz, +/-15dB, Q=1
    LF: 80Hz, +/-15dB 2nd order shelving
    Solo/Mute Mute & Solo on all channels
    Channel Level Control 100mm Faders
    Trim/Gain Control Sealed Rotary Potentiometers
    Phantom Power +48 Volt
    Metering 12-segment multicolored LED: Group Masters, L/R Master sections
    AFL/PFL LED indicator
    Frequency Response XLR input to any output:
    20Hz to 20kHz, +0/-1dB
    Dynamic Range not specified by manufacturer
    Signal-to-Noise Ratio < -128dBu (150 Ohm source)
    22Hz - 22kHz bandwidth, unweighted
    Total Harmonic Distortion (THD) All measurements at +10dBu output 30dB gain
    XLR Input to Direct Output: <0.007% @ 1kHz
    XLR Input to Mix Output: <0.008% @ 1kHz
    Power Supply Universal Mains input 85V-270V AC, 50Hz/60Hz
    Power Consumption - less than 50W
    Dimensions 25.7 x 6.5 x 19.8" (653 x 164 x 503mm) (WxHxD)
    Weight 40lbs (18.2kg)
    Packaging Info
    Package Weight 37.0 lb
    Box Dimensions (LxWxH) 30.0 x 25.0 x 12.0"
    The user manual for the Soundcraft LX7 II - 16 Channel Recording Mixer RW5674 can be downloaded in .pdf format if it did not come with your new sound reinforcement mixers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Soundcraft users keep a unique electronic library for Soundcraft sound reinforcement mixerss, where you can use our link to download the user manual for the Soundcraft LX7 II - 16 Channel Recording Mixer RW5674.

    The user manual lists all of the functions of the Soundcraft LX7 II - 16 Channel Recording Mixer RW5674, all the basic and advanced features and tells you how to use the sound reinforcement mixers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Soundcraft service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Soundcraft LX7 II - 16 Channel Recording Mixer RW5674. User manuals are also available on the Soundcraft website under Pro Audio - Live Sound - Sound Reinforcement Mixers.
