User manual Soundcraft MH2 48 Channel Console - 48 Mono, 4 Stereo, RW5717SM

Operating instructions and pdf manual for use - Soundcraft MH2 48 Channel Console - 48 Mono, 4 Stereo, RW5717SM User manual, User manual Soundcraft MH2 48 Channel Console - 48 Mono, 4 Stereo, RW5717SM, Soundcraft, MH2, 48, Channel, Console, 48, Mon


User manual for Soundcraft MH2 48 Channel Console - 48 Mono, 4 Stereo, RW5717SM

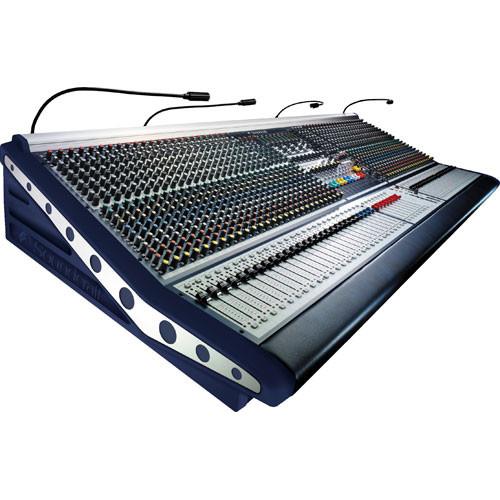

Soundcraft MH2 48 Channel Console - 48 Mono, 4 Stereo, RW5717SM
  • Manufacturer: Soundcraft
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Sound Reinforcement Mixers
  • Safety instructions
  • Startup and operation of the sound reinforcement mixers
  • Tips for setting up your Soundcraft
  • Settings and expert assistance
  • Contact Soundcraft service
  • Troubleshooting
  • Warranty information
  • Price: 14 USD
We recommend checking out our discussion threads on the Soundcraft MH2 48 Channel Console - 48 Mono, 4 Stereo, RW5717SM, which address similar problems with connecting and setting up Sound Reinforcement Mixers Soundcraft.



User manual for the Soundcraft MH2 48 Channel Console - 48 Mono, 4 Stereo, RW5717SM

The user manual for the Soundcraft MH2 48 Channel Console - 48 Mono, 4 Stereo, RW5717SM provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Sound Reinforcement Mixers.

The MH2 from Soundcraft was designed to give engineers and venues total flexibility and world-class sound quality at a very reasonable price tag. The MH2 is truly a dual-purpose mixer. It's been designed to be used as a front of house console, and as fully capable monitor mixer.
If you own a Soundcraft sound reinforcement mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Soundcraft MH2 48 Channel Console - 48 Mono, 4 Stereo, RW5717SM in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Soundcraft MH2 48 Channel Console - 48 Mono, 4 Stereo, RW5717SM:
Mic/Line Inputs 48
Stereo Line Inputs 4
AUX Sends 10 (9 & 10 can be switched to a stereo pair for an in-ear monitor send)
AUX Returns 10
Inserts TRS inserts on all 48 mono channels, all 10 aux, 4 stereo groups, and 3 on the master outputs (left, right, and center). All inserts are balanced 1/4" TRS.
2 Trk Master I/O XLR outputs for left, right, and center
Monitor Outputs 2 x XLR
1 x 1/4" headphone
50 to 600 Ohm headphones recommended
EQ Section 4-Band EQ with shelving sweep high and low frequency sections
Sweepable high-mid and low-mid bands
Low frequency range is 30Hz - 500Hz
Low mid frequency range is 75Hz - 1.3kHz
High mid frequency range is 750Hz - 13kHz
High frequency range is 1.2kHz - 20kHz
+/- 15dB of cut or boost at any frequency
The Q on the two mid bands is fixed at 1.5
Effects None
Solo/Mute Solo and Mute buttons on every channel
Solo buttons can be activated remotely when assigned to a VCA group
Intercancel or additive soloing is available with or without input priority
Channel Level Control High-quality long-throw 100mm faders
Trim/Gain Control High headroom preamps with an excellent common-mode rejection ratio
XLR inputs have a gain range of +15dBu to +60dBu and handle signals up to +26dBu
A -20dB pad is provided on every channel
Peak LED's indicate signals over +18dBu for both the preamp and EQ output sections
Oscillator 63Hz to 10kHz, variable level
High-Pass Filter 30-400Hz, 12dB per octave
Phantom Power +48V button on every channel
Metering 12-segment LED bargraph metering for all inputs
12-segment LED bargraph metering for 8 fader controlled group outputs
12-segment LED bargraph metering for left, right, and center
Aux 9 + 10 metered via left and right meters
Frequency Response +0/-1dB, 20Hz - 20kHz
Signal-to-Noise Ratio Mic Input E.I.N. -128dBu (150 Ohm source)
Mix output, no inputs routed, mix fader at 0dB = -90dBu
Total Harmonic Distortion (THD) XLR in to mix out, all measurements at 0bBu
<0.03% at 1kHz
<0.03% at 10kHz
Power Consumption 300W max
Dimensions 77 x 10.2 x 30.1" (1956 x 256 x 753 mm)
Weight 227 lbs (103 kg)
The user manual for the Soundcraft MH2 48 Channel Console - 48 Mono, 4 Stereo, RW5717SM can be downloaded in .pdf format if it did not come with your new sound reinforcement mixers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Soundcraft users keep a unique electronic library for Soundcraft sound reinforcement mixerss, where you can use our link to download the user manual for the Soundcraft MH2 48 Channel Console - 48 Mono, 4 Stereo, RW5717SM.

The user manual lists all of the functions of the Soundcraft MH2 48 Channel Console - 48 Mono, 4 Stereo, RW5717SM, all the basic and advanced features and tells you how to use the sound reinforcement mixers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Soundcraft service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Soundcraft MH2 48 Channel Console - 48 Mono, 4 Stereo, RW5717SM. User manuals are also available on the Soundcraft website under Pro Audio - Live Sound - Sound Reinforcement Mixers.
