User manual Speco Technologies RMX4CD 4-Channel Color Duplex RMX4CD

Operating instructions and pdf manual for use - Speco Technologies RMX4CD 4-Channel Color Duplex RMX4CD User manual, User manual Speco Technologies RMX4CD 4-Channel Color Duplex RMX4CD, Speco, Technologies, RMX4CD, 4-Channel, Color, Duplex, RMX4CD,


User manual for Speco Technologies RMX4CD 4-Channel Color Duplex RMX4CD

Speco Technologies RMX4CD 4-Channel Color Duplex RMX4CD
  • Manufacturer: Speco Technologies
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Matrix Solutions - Multiplexers/Quads
  • Safety instructions
  • Startup and operation of the multiplexers/quads
  • Tips for setting up your Speco Technologies
  • Settings and expert assistance
  • Contact Speco Technologies service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Speco Technologies RMX4CD 4-Channel Color Duplex RMX4CD, which address similar problems with connecting and setting up Multiplexers/Quads Speco Technologies.



User manual for the Speco Technologies RMX4CD 4-Channel Color Duplex RMX4CD

The user manual for the Speco Technologies RMX4CD 4-Channel Color Duplex RMX4CD provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Matrix Solutions - Multiplexers/Quads.

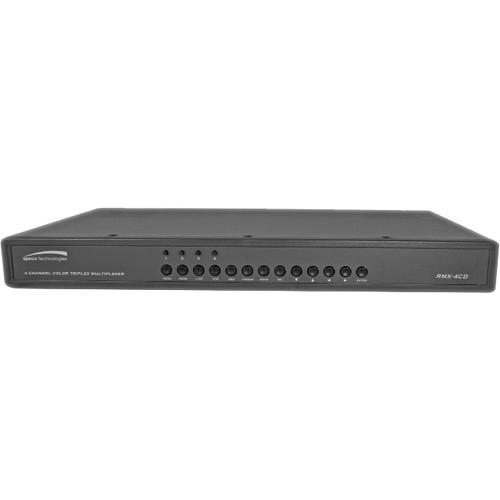

The RMX4CD 4-Channel Color Duplex Multiplexer from Speco Technologies lets you view up to 4 image sources on one screen while simultaneously recording full-screen images on a DVR or VCR. The multiplexer can be programmed for recording between 2 to 999 hours. The built-in time/date generator keeps track of the timestamp details. The multiplexer is compatible with all standard time lapse VCRs and most DVRs.
If you own a Speco Technologies multiplexers/quads and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Speco Technologies RMX4CD 4-Channel Color Duplex RMX4CD in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Speco Technologies RMX4CD 4-Channel Color Duplex RMX4CD:
Camera Input 4 x BNC, Composite video, 1 Vpp, 75 Ω
Adjustable Parameters 2 to 999 hours program recording, accepts trigger pulses from VCRs & DVRs
Alarm Function Video loss alert and alarm detection with up to 100 records
Alarm Inputs 4 (TTL level)
Alarm Output 1, normally open or closed (relay output)
Compatibility Compatible with all standard and time lapse VCRs and most DVRs
Looping Outputs (BNC) 4 x BNC, Composite video, 1 Vpp, 75 Ω
Sources 4 on one screen
Monitor Output 3 x BNC, Composite video, 1 Vpp, 75 Ω
Other Features Built-in time and date generator with 8-character camera title function
Playback 1 x BNC, Composite video, 1 Vpp, 75 Ω
Power Consumption Maximum 9 W
Power Source 12 VDC, 1.2 A (included)
Recovery 1 (TTL active low)
RS-232 Interface D-Sub 25-pin female connector
Switch 1 x BNC (TTL level)
VCR Interface 1 x BNC, Composite video, 1 Vpp, 75 Ω
Viewing Options Full screen, multi-screen, or sequential switching with adjustable dwell time
Dimensions (H x W x D) 1.8 x 17.0 x 9.8" (4.3 x 43.1 x 24.6 cm)
Weight 5.5 lb (2.5 kg)
Packaging Info
Package Weight 5.5 lb
Box Dimensions (LxWxH) 22.12 x 12.0 x 4.13"
The user manual for the Speco Technologies RMX4CD 4-Channel Color Duplex RMX4CD can be downloaded in .pdf format if it did not come with your new multiplexers/quads, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Speco Technologies users keep a unique electronic library for Speco Technologies multiplexers/quadss, where you can use our link to download the user manual for the Speco Technologies RMX4CD 4-Channel Color Duplex RMX4CD.

The user manual lists all of the functions of the Speco Technologies RMX4CD 4-Channel Color Duplex RMX4CD, all the basic and advanced features and tells you how to use the multiplexers/quads. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Speco Technologies service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Speco Technologies RMX4CD 4-Channel Color Duplex RMX4CD. User manuals are also available on the Speco Technologies website under Surveillance - Surveillance Video - Matrix Solutions - Multiplexers/Quads.
