User manual for the Spectra Cine Candela SC-810 PhoRad IIIR Luminance SC-810
The user manual for the Spectra Cine Candela SC-810 PhoRad IIIR Luminance SC-810 provides
necessary instructions for the proper use of the product Photography - Photo Accessories - Light Meters.

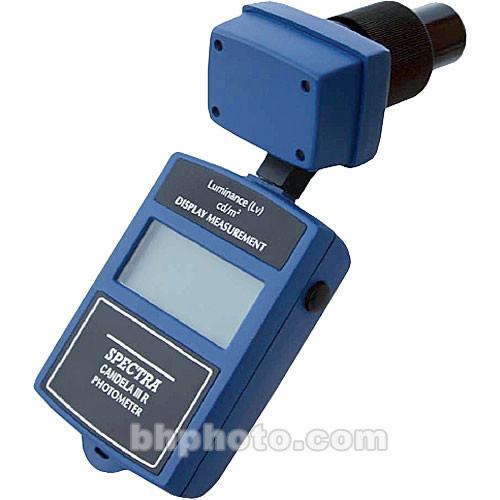

The Spectra-Cine Candela IIIR PhoRad Luminance Photometer accurately and consistently measures the light output of radiological equipment (viewing boxes, image workstation monitors, image intensifier monitors) to ensure that user is in compliance with recommended light levels.
If you own a Spectra Cine light meters and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Spectra Cine Candela SC-810 PhoRad IIIR Luminance SC-810 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Spectra Cine Candela SC-810 PhoRad IIIR Luminance SC-810:
| Measuring System || Hand-held photometer for measuring luminance intensity in candelas per meter squared (cd/m2); Contact measurement with the Luminance Probe placed directly on the surface to be measured |
| Measuring Modes || Measures luminance level in candelas per meter squared (cd/m2) or foot-lamberts (fl) |
| Receptor Head || Aperture 19mm; Measuring surface 6.25 x 6.25mm; Head rotates approximately 270° Ultra-stable silicon photodiode, together with computer selected glass filters to match the spectral response of the human eye; Operating Temperature Range: 32°F to 130° (0°C to 55°C) |
| Aperture/Shutter Priority || Not applicable |
| Display Readout || Electroluminescent lamp for backlit display; Resolution: 1 to 999 in 1 cd/m2 increments; 1,000 to 99,990 in 10 increments; Accuracy: Incandescent light source +/- 2.5% of the measured value; Additional error when measuring non-blackbody sources +/-3% |
| ISO Range || Not applicable |
| f/Stop Display Range || Not applicable |
| Shutter Speed - Ambient || Not applicable |
| Shutter Speed - Flash || Not applicable |
| EV Range (ISO-100) || Luminance Range: 1 - 100,000 cd/m2 |
| Cine Speeds || Not applicable |
| Exposure Memory || Up to three readings |
| Shadow/Highlight Calculation || Not applicable |
| Brightness Difference || Not applicable |
| Flash to Ambient Ratio || Not applicable |
| Multiple Flash || Not applicable |
| Exposure Calibration || Calibration is traceable to the National Institute of Standard Technology (NIST), Washington D.C. |
| Power Source || One six (6) volt battery #A544, PX28L, PX28 |
| Dimensions || 5.5 x 2.5 x 2" (140 x 63.5 x 50mm) |
| Weight || 6 oz (168 g) |
| Package Weight || 1.75 lb |
| Box Dimensions (LxWxH) || 12.1 x 9.4 x 3.5" |
The user manual for the Spectra Cine Candela SC-810 PhoRad IIIR Luminance SC-810 can be downloaded in .pdf
format if it did not come with your new light meters, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Spectra Cine users keep a unique electronic library
for Spectra Cine light meterss,
where you can use our link to download the user manual for the Spectra Cine Candela SC-810 PhoRad IIIR Luminance SC-810.
The user manual lists all of the functions of the Spectra Cine Candela SC-810 PhoRad IIIR Luminance SC-810,
all the basic and advanced features and tells you how to use the light meters.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Spectra Cine service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Spectra Cine Candela SC-810 PhoRad IIIR Luminance SC-810. User manuals are also
available on the Spectra Cine website under Photography - Photo Accessories - Light Meters.
