User manual Spectra Cine Professional IV-A Light Meter (Red) 18002-ARD
Operating instructions and pdf manual for use - Spectra Cine Professional IV-A Light Meter (Red) 18002-ARD User manual, User manual Spectra Cine Professional IV-A Light Meter (Red) 18002-ARD, Spectra, Cine, Professional, IV-A, Light, Meter, Red, 18
User manual for Spectra Cine Professional IV-A Light Meter (Red) 18002-ARD
Overall Rating: 5.0
100% of respondents would recommend this to a friend.
We recommend checking out our discussion threads on the Spectra Cine Professional IV-A Light Meter (Red) 18002-ARD,
which address similar problems with connecting and setting up Light Meters Spectra Cine.
User manual for the Spectra Cine Professional IV-A Light Meter (Red) 18002-ARD
The user manual for the Spectra Cine Professional IV-A Light Meter (Red) 18002-ARD provides
necessary instructions for the proper use of the product Photography - Photo Accessories - Light Meters.

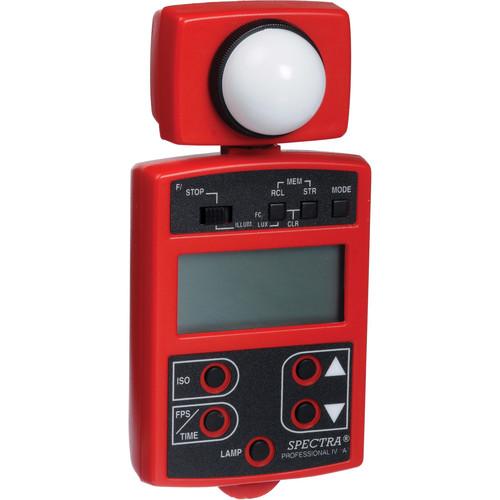

The Spectra Professional IV-A Light Meter is a compact, easy-to-use digital exposure meter with the advanced technology that makes it an essential tool for cinematographers, lighting designers, videographers and professional still photographers.
If you own a Spectra Cine light meters and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Spectra Cine Professional IV-A Light Meter (Red) 18002-ARD in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Spectra Cine Professional IV-A Light Meter (Red) 18002-ARD:
Specifications
Measuring System
Silicon photovoltaic cell; Computer selected glass filters tailored to spectral response of the film
Measuring Modes
Incident and reflected (reflected light acceptance angle is 42° square); Average, Normal, Ratio; footcandles / lux
Receptor Head
Swivel head rotates 270°. Accepts optional one degree spot attachment
Aperture/Shutter Priority
Shutter speed priority
Display Readout
Digital LCD plus analog bar graph Electroluminescent lamp for viewing at low light levels
ISO Range
3 - 8000 in 1/3 increments Frames per second: 2 - 360 (for motion picture cameras)
f/Stop Display Range
Digital f/stop: f/0.35 to f/128 (in 1/10-stop increments) Analog f/stop: f/0.7 to f/45 (in 1/3- stop increments) Photographic illuminance: footcandles 0.1 - 70,000 and lux 1 - 100,000
Shutter Speed - Ambient
1/8000 sec. - 30 minutes
Shutter Speed - Flash
No flash mode
EV Range (ISO-100)
No
Cine Speeds
2 to 360 fps Shutter angle: 45 - 205°
Exposure Memory
"Memory Store" and "Memory Recall" switches: Memory Recall switch is to recall stored reading in memory-1(ml), current reading in memory-2(m2) and/or the Ratio, Average and f/stop of the two readings
Shadow/Highlight Calculation
Calculates ratio of key plus fill to fill light alone from 1:1 to 999:1
The user manual for the Spectra Cine Professional IV-A Light Meter (Red) 18002-ARD can be downloaded in .pdf
format if it did not come with your new light meters, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Spectra Cine users keep a unique electronic library
for Spectra Cine light meterss,
where you can use our link to download the user manual for the Spectra Cine Professional IV-A Light Meter (Red) 18002-ARD.
The user manual lists all of the functions of the Spectra Cine Professional IV-A Light Meter (Red) 18002-ARD,
all the basic and advanced features and tells you how to use the light meters.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Spectra Cine service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Spectra Cine Professional IV-A Light Meter (Red) 18002-ARD. User manuals are also
available on the Spectra Cine website under Photography - Photo Accessories - Light Meters.
