Spektrum AR9020 9-Channel DSMX X-Plus Receiver SPMAR9020
  • Manufacturer: Spektrum
  • Basic description and contents of package
  • Product classification: Camcorders - Aerial Imaging & Drones - Remote Control Components
  • Safety instructions
  • Startup and operation of the remote control components
  • Tips for setting up your Spektrum
  • Settings and expert assistance
  • Contact Spektrum service
  • Troubleshooting
  • Warranty information
  • Price: 150 USD
We recommend checking out our discussion threads on the Spektrum AR9020 9-Channel DSMX X-Plus Receiver SPMAR9020, which address similar problems with connecting and setting up Remote Control Components Spektrum.



User manual for the Spektrum AR9020 9-Channel DSMX X-Plus Receiver SPMAR9020

The user manual for the Spektrum AR9020 9-Channel DSMX X-Plus Receiver SPMAR9020 provides necessary instructions for the proper use of the product Camcorders - Aerial Imaging & Drones - Remote Control Components.

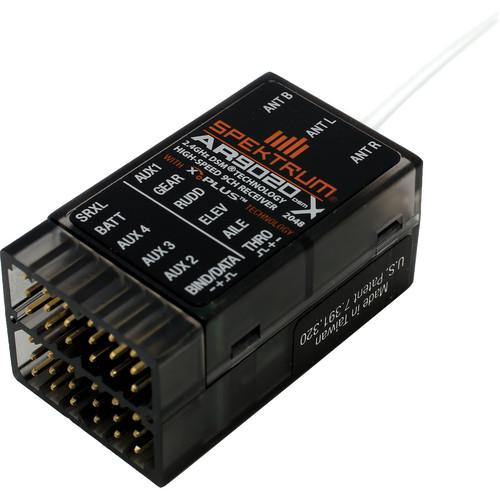

The AR9020 9-Channel DSMX Receiver from Spektrum is a full-range, 9-channel receiver for your RC aircraft. It is compatible with all Spektrum and JR DSM2 and DSMX transmitters, and gives you the option of adding extra channels by plugging the optional X-Plus 8-channel expander into its SRXL port. It features a fast input-to-output response with an 11ms frame rate when used with capable Spektrum transmitters, 2048 resolution, and one internal and two remote receivers for RF redundancy. Additionally, it provides advanced features to help keep your aircraft safe, such as SmartSafe failsafe and QuickConnect. The receiver is also telemetry compatible and supports Spektrum's optional Flight Log module for tracking RF link performance.

Important: The AR9020 is not for use in airplanes that have full carbon fuselages or that have significant carbon or conductive structures.

Note: The AR9020 receiver is not compatible with the DX6 parkflyer transmitter.
If you own a Spektrum remote control components and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Spektrum AR9020 9-Channel DSMX X-Plus Receiver SPMAR9020 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Spektrum AR9020 9-Channel DSMX X-Plus Receiver SPMAR9020Download user manual for Spektrum AR9020 9-Channel DSMX X-Plus Receiver SPMAR9020
(PDF file, 4.51 MB)
Additional parameters of the Spektrum AR9020 9-Channel DSMX X-Plus Receiver SPMAR9020:
Specifications
    Compatibility All Spektrum and JR aircraft radios that support DSM2/DSMX technology

    Note: The AR9020 receiver is not compatible with the DX6 parkflyer transmitter
    Model Type Aircraft
    Range Full
    Number of Channels 9
    Band 2.4 GHz
    Modulation DSM2 / DSMX
    Bind Method Bind plug
    Number of Receivers 1 internal, 2 external
    Telemetry Yes
    Resolution 2048
    Frame Rate 11 ms, when paired with the DX7s, DX7se, DX8, or DX10t transmitters
    Input Voltage Range 3.5 to 9.6 V
    Dimensions Main receiver: 0.91 x 1.61 x 0.79" (23.00 x 41.00 x 20.00 mm)
    Remote receiver: 0.80 x 1.10 x 0.27" (20.30 x 28.00 x 6.90 mm)
    Antenna length: 1.2" (31.0 mm)
    Weight Main receiver only: 0.42 oz (11.90 g)
    Main receiver with remote receivers: 0.74 oz (21.00 g)
    Packaging Info
    Package Weight 0.3 lb
    Box Dimensions (LxWxH) 7.1 x 5.4 x 1.7"
    The user manual for the Spektrum AR9020 9-Channel DSMX X-Plus Receiver SPMAR9020 can be downloaded in .pdf format if it did not come with your new remote control components, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Spektrum users keep a unique electronic library for Spektrum remote control componentss, where you can use our link to download the user manual for the Spektrum AR9020 9-Channel DSMX X-Plus Receiver SPMAR9020.

    The user manual lists all of the functions of the Spektrum AR9020 9-Channel DSMX X-Plus Receiver SPMAR9020, all the basic and advanced features and tells you how to use the remote control components. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Spektrum service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Spektrum AR9020 9-Channel DSMX X-Plus Receiver SPMAR9020. User manuals are also available on the Spektrum website under Camcorders - Aerial Imaging & Drones - Remote Control Components.
