User manual SPL Model 1160 Reducer Passive Power Soak SPLREDU

Operating instructions and pdf manual for use - SPL Model 1160 Reducer Passive Power Soak SPLREDU User manual, User manual SPL Model 1160 Reducer Passive Power Soak SPLREDU, SPL, Model, 1160, Reducer, Passive, Power, Soak, SPLREDU,


User manual for SPL Model 1160 Reducer Passive Power Soak SPLREDU

SPL Model 1160 Reducer Passive Power Soak SPLREDU
  • Manufacturer: SPL
  • Basic description and contents of package
  • Product classification: Pro Audio - Musical Instruments - Guitar Accessories - General Guitar Accessories
  • Safety instructions
  • Startup and operation of the general guitar accessories
  • Tips for setting up your SPL
  • Settings and expert assistance
  • Contact SPL service
  • Troubleshooting
  • Warranty information
  • Price: 429 USD
We recommend checking out our discussion threads on the SPL Model 1160 Reducer Passive Power Soak SPLREDU, which address similar problems with connecting and setting up General Guitar Accessories SPL.



User manual for the SPL Model 1160 Reducer Passive Power Soak SPLREDU

The user manual for the SPL Model 1160 Reducer Passive Power Soak SPLREDU provides necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Guitar Accessories - General Guitar Accessories.

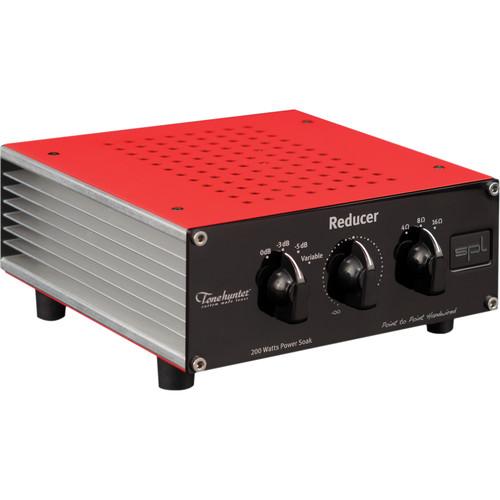

The Model 1160 Reducer Passive Power Soak for guitars and bass amplifiers, from SPL simply does as its name implies, it reduces the power output of a guitar amp. This means that all sorts of amps, especially tube amps, can now be overdriven, to get that sound, without the need of having to be too loud. It is placed between the guitar amp and the speaker.

At this stage, it converts the amp's amplified electric power into heat. Power reduction with resistors requires no additional power supply so this passive principle helps to guarantee an accurate sound reproduction without any influence on the frequency response curve by an outside power source. So the Reducer is neutral, providing just a volume control, and can be utilized without any batteries or the need for it to be plugged in electrically - somewhere. For the amp output, impedance can be set to 4, 8 or 16 Ohm. Reduction is stepwise in the first stages, but it can then be adjusted continuously.
If you own a SPL general guitar accessories and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the SPL Model 1160 Reducer Passive Power Soak SPLREDU in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the SPL Model 1160 Reducer Passive Power Soak SPLREDU:
Specifications
    Input 1/4" TS (Mono Jack)
    Impedance: 4, 8 or 16 ohms, switchable

    Maximum Input Load:
    @ 4 ohms: 90 W RMS/120 W Peak
    @ 8 ohms: 200 W RMS/260 W Peak
    @ 16 ohms: 160 W RMS/180 W Peak
    Output 1/4" TS (Mono Jack)
    Exterior Dimensions (H x D x W) 2.7 x 7.5 x 8.2" (68  x 190  x 208  mm)
    Height with feet: 3.3" (85 mm)
    Depth with controls: 7.0" (179 mm)
    Weight 3.97 lb (1.8 kg)
    Packaging Info
    Package Weight 6.4 lb
    Box Dimensions (LxWxH) 15.0 x 14.3 x 6.9"
    The user manual for the SPL Model 1160 Reducer Passive Power Soak SPLREDU can be downloaded in .pdf format if it did not come with your new general guitar accessories, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other SPL users keep a unique electronic library for SPL general guitar accessoriess, where you can use our link to download the user manual for the SPL Model 1160 Reducer Passive Power Soak SPLREDU.

    The user manual lists all of the functions of the SPL Model 1160 Reducer Passive Power Soak SPLREDU, all the basic and advanced features and tells you how to use the general guitar accessories. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from SPL service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the SPL Model 1160 Reducer Passive Power Soak SPLREDU. User manuals are also available on the SPL website under Pro Audio - Musical Instruments - Guitar Accessories - General Guitar Accessories.
