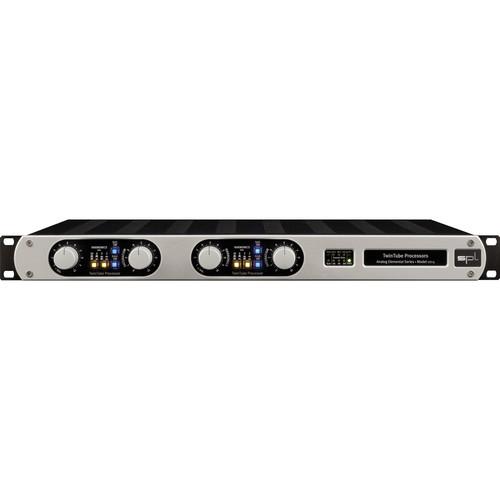

SPL  TwinTube Dual-Channel Processor SPLTWINPRAES
  • Manufacturer: SPL
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Microphone Preamps
  • Safety instructions
  • Startup and operation of the microphone preamps
  • Tips for setting up your SPL
  • Settings and expert assistance
  • Contact SPL service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the SPL TwinTube Dual-Channel Processor SPLTWINPRAES, which address similar problems with connecting and setting up Microphone Preamps SPL.



User manual for the SPL TwinTube Dual-Channel Processor SPLTWINPRAES

The user manual for the SPL TwinTube Dual-Channel Processor SPLTWINPRAES provides necessary instructions for the proper use of the product Pro Audio - Recording - Microphone Preamps.

The SPL TwinTube Dual-Channel Processor provides perhaps the two single most important and beneficial artifacts generated by tubes: Saturation and Harmonics. The warmth, presence and suppleness analog tube and coil filtering provide can enrich any production, almost regardless of the music genre.

The TwinTube's saturation effects are sonically comparable to the effects of tape saturation which adds warmth and loudness and emits subtle-to-clear effects while harmonics create more presence and clarity without adding appreciable sound levels, as is the case with EQs. Harmonics help to move signals to the front of a mix and can add a further richness to the sonic source.

These effectual changes of the sound character by the TwinTube can work for all kinds of signals, such as vocals, acoustic guitars, drums, strings, brass, etc.

Saturation
Saturation effects are generated through the tube being pushed to and beyond its normal operating limits. In contrast to semiconductors, which at that point would cause a harsh sound, a tube thus pushed to such levels does not clip from reasonable over-level. Once approached, this pushed level limits and thereby produces its typical tonal result, which in audio signal processing can have such often profitable aural effects. ­On one hand (and depending on the amount applied), from subtle to extensive harmonic distortion and on the other hand, a compaction of the sonic event, that is, a limiting effect that exhibits a pleasant, rounded or soft sound. Acoustically, and also in its range of applications, this can be compared very well with tape saturation effects.

Harmonic Distortion
Harmonic distortion and limiting are the generally known "classic" tube effects, which are today cornerstones of much sound processing. But other less known and potentially important effects are a tube's ability for improving presence and spatial qualities through its processing of specific regions of the overtone series.

Applications
Here we refer to only two significant examples, of course without suggesting completeness. The effects and results described here can be applied to many other instruments:

1. Vocals
Optimizing vocal tracks is a highlight among the processing applications of the TwinTube. Often further EQing is not necessary anymore in order to lift a voice from a mix and get it up front. A recommendation for female voices: HARMONICS switch to 6, HARMONICS control to about 2 o'clock, SATURATION to about 12 o'clock.
With these settings the described effect should be clearly audible and from here individual tracks can be optimized. With female voices we suggest trying HARMONICS switch settings 6 and 10 while switching between 2, 3, and 6 with male voices.

2. Acoustic Guitars
The success in treating electric guitars depends on previous recording and processing gear and techniques: if tube amps and further effects were already applied, it is hard to foresee how much the TwinTube can contribute when optimizing or designing a sound.
In contrast to electric guitars, there is a huge potential in processing acoustical guitar tracks. Guitar-picking sounds can be intensified, and in general, tube saturation and limiting can improve loudness and condense the sound. Presence is emphasized and the instrument cuts through a mix much better without raising levels too much. A well-chosen amount of harmonic distortion always adds some roughness which may often add a nice touch to several playing styles.

If you own a SPL microphone preamps and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the SPL TwinTube Dual-Channel Processor SPLTWINPRAES in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the SPL TwinTube Dual-Channel Processor SPLTWINPRAES:
Harmonics Harmonics Stage:
Frequency Range: 10 Hz to 80 kHz
THD & N: 0.1 % (@ 1 kHz, 0 dBu input level, unity gain)
S/N ratio, A-weighted: -87  dBu
Dynamic Range: 103 dB
Maximum Input Level: +18 dBu

Harmonic Filter
Filter 1
Center Frequency: 9.8 kHz
Bandwidth: 9.6 kHz
Maximum Gain: +15 dB
Filter 2
Center Frequency: 6.6 kHz
Bandwidth: 5 kHz
Maximum Gain: +15 dB
Filter 3
Center Frequency: 2.8 kHz
Bandwidth: 9 kHz
Maximum Gain: +15 dB
Filter 4
Center Frequency: 1.9 kHz
Bandwidth: 4.7 kHz
Maximum Gain: +15 dB
Saturation Stage:
Frequency Range: 10 Hz-77 kHz
THD & N: 0.02 % (@ 1 kHz, 0 dBu input level, unity gain)
ca. 15 % @ 0 dBu input level and maximum saturation
S/N ratio, A-weighted; -96 dBu
Dynamic Range: 114 dB
Maximum Input Level: +21 dBu
Audio - Cumulative (Harmonics and Saturation Stage)
Frequency Range: 10 Hz to 77 kHz
CMR: -74 dBu (@ 1 kHz, 0 dBu input level, unity gain)
Noise, A-weighted: -87 dBu
Dynamic Range: 105 dB
A/D Converter An optional A to D converter is available
Input XLR connector, electronically balanced, optionally transformer balanced
Max. Input Level: +20 dBu
Impedance: ca. 20 kOhms
Output XLR connector, electronically balanced, optionally transformer balanced
Impedance: ca. 150 Ohms
Maximum Output Level: +21 dBu
LED Display Signal-LED: -20 dBu
Overload-LED: +18 dBu (peak hold 1.5 seconds)
Power Supply Toroidal transformer
Fuses:
230 VAC, 50 Hz: 315 mA
120 VAC, 60 Hz: 630 mA

Voltage selector: 115 V / 230 V

Power consumption
@ 230 V: 9.1 W / 10.8 VA
@ 115 V: 5.6 W / 7.1 VA
Dimensions (W x H x D) 19.0 x 1.7 x 11.8" (482 x 44 x 300  mm) (depth includes knobs and sockets)
Weight ca. 10.6 lb (4.8 kg)
