User manual for the StarTech USB 3.0 SATA III HDD Docking Station SDOCKU33HB
The user manual for the StarTech USB 3.0 SATA III HDD Docking Station SDOCKU33HB provides
necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - Hard Drive Enclosures & Docks.

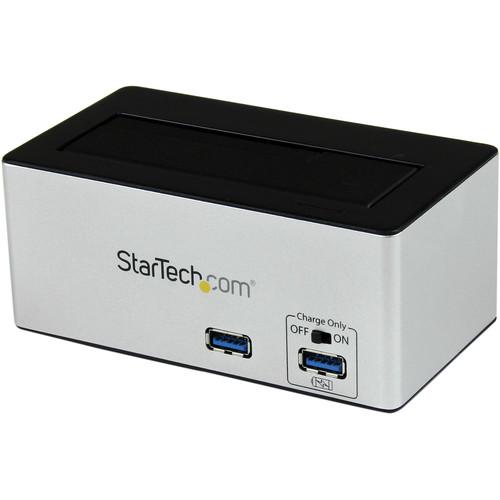

The black USB 3.0 SATA III HDD Docking Station with Fast Charge USB Hub from StarTech lets you easily connect and swap 2.5"/3.5" SATA III Hard Disk Drives (HDD) and Solid State Drives (SSD) through a USB port. The enclosure supports UASP and delivers optimal performance with a USB 3.0 connection, and it is also backwards compatible with USB 2.0/1.1 host connections. The Hard Drive Dock features a built-in 3-port USB 3.0 hub that enables you to connect up to three additional USB 3.0 devices to your computer through the same USB connection. One of the ports on the hub also has Fast Charging capabilities that charges iPads and other mobile devices, as effectively as through a wall plug. This Fast Charge Port has been specially designed for compatibility with a wide range of tablets and smartphones.
|
If you own a StarTech hard drive enclosures & docks and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the StarTech USB 3.0 SATA III HDD Docking Station SDOCKU33HB in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the StarTech USB 3.0 SATA III HDD Docking Station SDOCKU33HB:
| Interface | USB 3.0 | | Number of Drives | 1 | | Drive Size | 2.5"/3.5" | | Drive Type | SATA | | Drive Installation | Removable | | Chipset ID | VIA812+ASM1053E | | Drive Connectors | 1 x SATA data and power combo (7+15-pin) receptacle | | Host Connectors | 1 x USB 3.0 B (9-pin, SuperSpeed) female | | Other Interfaces | 1 x USB 3.0 A (5 V, 2 A, 9-pin, SuperSpeed) female
2 x USB 3.0 A (9-pin, SuperSpeed) female | | Maximum Drive Capacity | Currently tested with up to 4 TB 7200 rpm 3.5" hard drives and 1 TB 7200 rpm 2.5" hard drives | | Type and Rate | SATA III (6 Gb/s)
USB 3.0 (5 Gb/s) | | UASP Support | Yes | | OS Compatibility | Windows 8/8.1 (32/64-bit), 7 (32/64-bit), Server 2008 (32/64-bit), Vista (32/64-bit), Server 2003 (32/64-bit), XP (32/64-bit), 2000
Apple Mavericks (10.9) OS X Mountain Lion (10.8), Lion (10.7), Snow Leopard (10.6)
Linux
Google Chrome OS | | Microsoft WHQL Certified | Yes | | LED Indicators | 1 x Power/Activity | | Input Voltage | 100 to 240 VAC | | Input Current | 1 A | | Output Voltage | 12 VDC | | Output Current | 3 A | | Center Tip Polarity | Positive | | Plug Type | M | | Operating Temperature | 41 to 95°F (5 to 35°C) | | Storage Temperature | -4 to 122°F (-20 to 50°C) | | Relative Humidity | 20 to 80% | | Certifications | CE, FCC | | Compliance | RoHS | | Enclosure Material | Aluminum and plastic | | Dimensions (L x W x H) | 5.1 x 2.8 x 2.2" (13.0 x 7.2 x 5.5 cm) | | Weight | 12.4 oz (350.0 g) | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 6.7 x 6.6 x 3.6" | |
