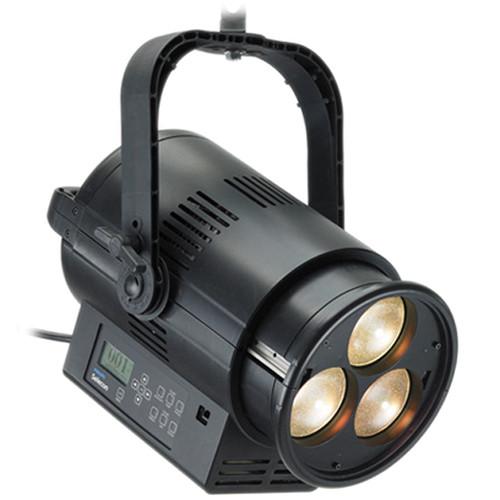

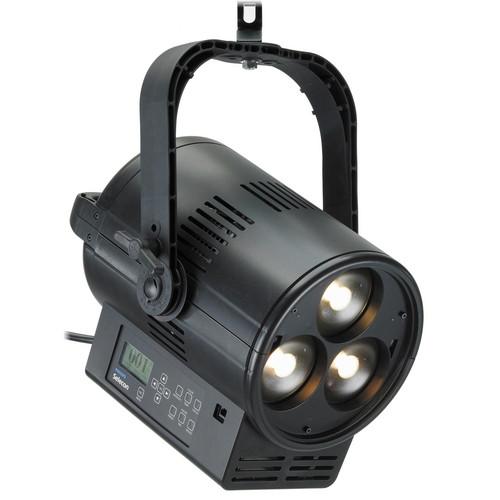

Strand Lighting  PL3 LED Luminaire (Black) PL3 Strand Lighting  PL3 LED Luminaire (Black) PL3
Click to enlarge image

We recommend checking out our discussion threads on the Strand Lighting PL3 LED Luminaire (Black) PL3, which address similar problems with connecting and setting up LED Lights Strand Lighting.



User manual for the Strand Lighting PL3 LED Luminaire (Black) PL3

The user manual for the Strand Lighting PL3 LED Luminaire (Black) PL3 provides necessary instructions for the proper use of the product Lighting & Studio - Continuous Lighting - LED Lights.

The Strand Selecon PL3 LED Luminaire by Philips draws on decades of evolving technology to bring you a high output RGBW LED fixture with the incandescent equivalent of 1,000 - 1,200W. Color control was of paramount importance in the design of the PL3. Red, Blue and Green control offer infinite color choices within the 3,000 - 5,600K range. Fine-tuning is achieved via quickly access presets or custom color presets that record your color compositions.
If you own a Strand Lighting led lights and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Strand Lighting PL3 LED Luminaire (Black) PL3 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Strand Lighting  PL3 LED Luminaire (Black) PL3Download user manual for Strand Lighting PL3 LED Luminaire (Black) PL3
(PDF file, 1.87 MB)
Additional parameters of the Strand Lighting PL3 LED Luminaire (Black) PL3:
Specifications
    Source True RGBW 120W LED chips x3
    Output > 6,000 lumens (white light)
    Photometrics Wide 55° Field Angle
    Warm White (148W) Lux / fc
    2,327 / 223 @ 6.0' (2.0 m) with 6.4' (2.1 m) beam diameter
    582 / 56 @ 12' (4.0 m) with 12.7' (4.2 m) beam diameter
    259 / 25 @ 18' (6.0 m) with 19.1' (6.4 m) beam diameter
    145 / 14 @ 24' (8.0 m) with 25.5' (8.5 m) beam diameter
    Cool White (205W)
    2,962 / 284 @ 6.0' (2.0 m) with 6.4' (2.1 m) beam diameter
    741 / 71 @ 12' (4.0 m) with 12.7' (4.2 m) beam diameter
    329 / 32 @ 18' (6.0 m) with 19.1' (6.4 m) beam diameter
    185 / 18 @ 24' (8.0 m) with 25.5' (8.5 m) beam diameter
    Daylight (246W)
    3,396 / 326 @ 6.0' (2.0 m) with 6.4' (2.1 m) beam diameter
    849 / 81 @ 12' (4.0 m) with 12.7' (4.2 m) beam diameter
    377 / 36 @ 18' (6.0 m) with 19.1' (6.4 m) beam diameter
    212 / 20 @ 24' (8.0 m) with 25.5' (8.5 m) beam diameter
    Blue (78W)
    179 / 17 @ 6.0' (2.0 m) with 6.4' (2.1 m) beam diameter
    45 / 4.0 @ 12' (4.0 m) with 12.7' (4.2 m) beam diameter
    20 / 2.0 @ 18' (6.0 m) with 19.1' (6.4 m) beam diameter
    11 / 1.0 @ 24' (8.0 m) with 25.5' (8.5 m) beam diameter
    Red (70W)
    683 / 65 @ 6.0' (2.0 m) with 6.4' (2.1 m) beam diameter
    171 / 16 @ 12' (4.0 m) with 12.7' (4.2 m) beam diameter
    76 / 7.0 @ 18' (6.0 m) with 19.1' (6.4 m) beam diameter
    43 / 4.0 @ 24' (8.0 m) with 25.5' (8.5 m) beam diameter
    Green (136W)
    1,951 / 187 @ 6.0' (2.0 m) with 6.4' (2.1 m) beam diameter
    488 / 47 @ 12' (4.0 m) with 12.7' (4.2 m) beam diameter
    217 / 21 @ 18' (6.0 m) with 19.1' (6.4 m) beam diameter
    122 / 12 @ 24' (8.0 m) with 25.5' (8.5 m) beam diameter

    Narrow 15° Field Angle
    Warm White (148W) Lux / fc
    8,140 / 781 @ 12' (4.0 m) with 3.1' (1.0 m) beam diameter
    2,035 / 195 @ 24' (8.0 m) with 6.2' (2.1 m) beam diameter
    904 / 87 @ 36' (12 m) with 9.3' (3.1 m) beam diameter
    509 / 45 @ 50' (16 m) with 13.0' (4.1 m) beam diameter
    Cool White (205W)
    10,501 / 1,007 @ 12' (4.0 m) with 3.1' (1.0 m) beam diameter
    2,625 / 252 @ 24' (8.0 m) with 6.2' (2.1 m) beam diameter
    1,167 / 112 @ 36' (12 m) with 9.3' (3.1 m) beam diameter
    656 / 58 @ 50' (16 m) with 13.0' (4.1 m) beam diameter
    Daylight (246W)
    12,068 / 1,157 @ 12' (4.0 m) with 3.1' (1.0 m) beam diameter
    3,017 / 289 @ 24' (8.0 m) with 6.2' (2.1 m) beam diameter
    1,341 / 129 @ 36' (12 m) with 9.3' (3.1 m) beam diameter
    754 / 67 @ 50' (16 m) with 13.0' (4.1 m) beam diameter
    Blue (78W)
    659 / 63 @ 12' (4.0 m) with 3.1' (1.0 m) beam diameter
    165 / 16 @ 24' (8.0 m) with 6.2' (2.1 m) beam diameter
    73 / 7.0 @ 36' (12 m) with 9.3' (3.1 m) beam diameter
    41 / 4.0 @ 50' (16 m) with 13.0' (4.1 m) beam diameter
    Red (70W)
    2,326 / 223 @ 12' (4.0 m) with 3.1' (1.0 m) beam diameter
    582 / 56 @ 24' (8.0 m) with 6.2' (2.1 m) beam diameter
    258 / 25 @ 36' (12 m) with 9.3' (3.1 m) beam diameter
    145 / 13 @ 50' (16 m) with 13.0' (4.1 m) beam diameter
    Green (136W)
    6,923 / 664 @ 12' (4.0 m) with 3.1' (1.0 m) beam diameter
    1,731 / 166 @ 24' (8.0 m) with 6.2' (2.1 m) beam diameter
    769 / 74 @ 36' (12 m) with 9.3' (3.1 m) beam diameter
    433 / 38 @ 50' (16 m) with 13.0' (4.1 m) beam diameter
    Operating Voltage 120 - 240VAC (auto-ranging)
    Frequency 50/60 Hz
    Power Consumption 4.60 Amps (120V) / 2.35 Amps (240V)
    Maximum load with all LEDs at full RGBW
    Operating Temperature 32 - 122°F (0 to 50°C)
    Control On-board menu, DMX512, Infrared remote control
    Compliance ETL/cETL Listed and CE Marked
    Construction Machined aluminum, sheet metal, and molded engineering grade plastic components
    Lenses Precision coated aspheric lenses
    Dimensions 18.7 x 16.4 x 13.5" (47.5 x 41.6 x 34.3 cm)
    Lens diameter: 9.75" (24.7 cm)
    Weight 22.1 lbs (10.1 kg) (luminaire only)
