User manual Synology DiskStation DS415play 12TB (4 x 3TB) 4-Bay NAS Server

Operating instructions and pdf manual for use - Synology DiskStation DS415play 12TB (4 x 3TB) 4-Bay NAS Server User manual, User manual Synology DiskStation DS415play 12TB (4 x 3TB) 4-Bay NAS Server, Synology, DiskStation, DS415play, 12TB, 4, x, 3T


User manual for Synology DiskStation DS415play 12TB (4 x 3TB) 4-Bay NAS Server

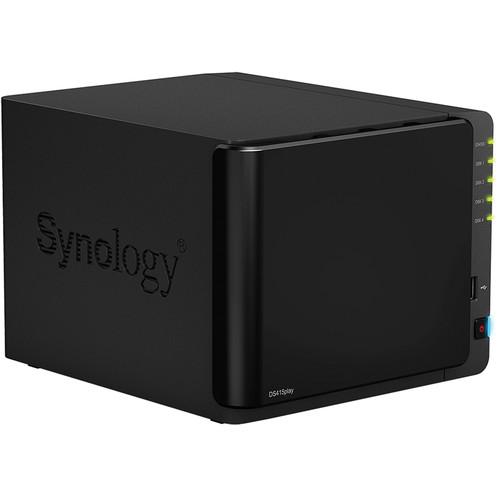

Synology DiskStation DS415play 12TB (4 x 3TB) 4-Bay NAS Server
  • Manufacturer: Synology
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Networking - Network Attached Storage Drives
  • Safety instructions
  • Startup and operation of the network attached storage drives
  • Tips for setting up your Synology
  • Settings and expert assistance
  • Contact Synology service
  • Troubleshooting
  • Warranty information
  • Price: 999 USD
Synology DiskStation DS415play 12TB (4 x 3TB) 4-Bay NAS Server Synology DiskStation DS415play 12TB (4 x 3TB) 4-Bay NAS Server Synology DiskStation DS415play 12TB (4 x 3TB) 4-Bay NAS Server Synology DiskStation DS415play 12TB (4 x 3TB) 4-Bay NAS Server
Click to enlarge image

We recommend checking out our discussion threads on the Synology DiskStation DS415play 12TB (4 x 3TB) 4-Bay NAS Server, which address similar problems with connecting and setting up Network Attached Storage Drives Synology.



User manual for the Synology DiskStation DS415play 12TB (4 x 3TB) 4-Bay NAS Server

The user manual for the Synology DiskStation DS415play 12TB (4 x 3TB) 4-Bay NAS Server provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Network Attached Storage Drives.

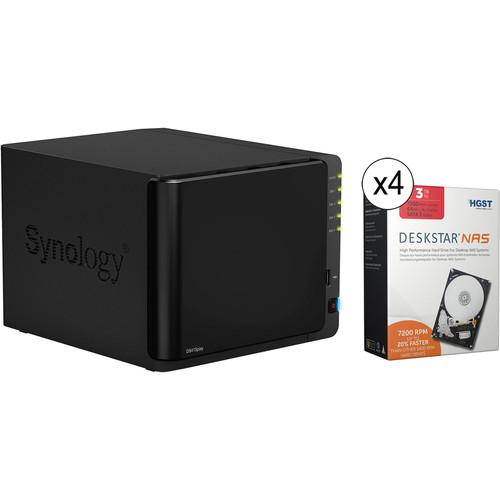

This B&H Kit combines the Synology Diskstation DS415play 4-Bay NAS Server with 4 x 3TB internal hard drives for a total capacity of 12TB.

With support for 2,048 users and a total of four drive bays that can accommodate the included 4 x 3TB 3.5" 7200 rpm SATA III 6 Gb/s hard drives, the DiskStation DS415play has been optimized for multimedia processing, as well as photo, music, and video streaming with Full HD 1080p video transcoding. Running the Synology DiskStation Manager OS, you will be able to manage your NAS and install specific add-on packages. The DS415play is powered by a 1.6 GHz Intel Atom CE5335 Dual-Core processor and 1GB of DDR3 RAM. When configured as a RAID 5 and used within a Windows environment, it supports read speeds up to 112.35 MB/s and write speeds up to 98.58 MB/s, while also offering a variety of RAID modes, each of which offers data performance, redundancy, or a combination of both. These included modes are RAID 0, 1, 6, 10, Basic, Synology Hybrid, and JBOD.

The DS415play is also a DLNA Certified DMS (Digital Media Server) and is able to serve as a primary media server, with the ability to host digital multimedia content for local or remote playback. Once connected to a router, the DS415play streams music, photos, and videos to DLNA-compliant devices, such as DLNA TVs or gaming consoles without any pre-configuration. You can even browse and select content on the DS415play using DS audio and designate a DLNA player within the same local network to play it.

The DS415play also provides seamless file sharing across Windows, Mac, and Linux platforms and also offers comprehensive network protocol support including FTP, SMB2, AFP, NFS, and WebDAV. With Windows AD and LDAP integration, the D415play can fit into virtually all existing network environments. In most instances, missing files may also be recovered with the Recycle Bin feature which is supported on AFP, CIFS, File Station, and WebDAV. All files deleted in a shared folder will be automatically moved into the Recycle Bin.

The Synology DS415play can also serve as a centralized backup target. Whether you are a Windows or Mac user, you can back up everything on your computer directly to the DS415play using Cloud Station. Whenever you modify a file, the changes are backed up to DS415play automatically, while Mac users enjoy native Apple Time Machine support. You can also back up data from your DS415play to another DiskStation, rsync servers, external drives, Amazon S3, Glacier cloud service, Microsoft Azure, SFR, and hicloud.

The DS415play enclosure comes equipped with one 92 x 92mm fan to help keep everything cool. One the back, you will find 1 x Gigabit Ethernet port, 2 x USB 3.0 ports, and 2 x USB 2.0 ports, as well as 1 x USB 2.0 port on the front of the enclosure. This helps make it easy to connect peripherals such as external hard drives, thumb drives, and more. The DiskStation DS415play is powered by 100 - 240 VAC at 50/60 Hz (single phase). Included with this NAS kit is an accessory pack, an AC adapter, an AC power cord, and an RJ-45 LAN cable.
If you own a Synology network attached storage drives and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Synology DiskStation DS415play 12TB (4 x 3TB) 4-Bay NAS Server in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Synology DiskStation DS415play 12TB (4 x 3TB) 4-Bay NAS Server:
Specifications
  • Synology Diskstation DS415play 4-Bay NAS Server
    CPU
    CPU Model Intel Atom
    CPU Frequency Dual Core 1.6 GHz
    Floating Point Yes
    Hardware Transcoding Engine H.264 (AVC), MPEG-4 Part 2, MPEG-2, VC-1
    Memory
    System Memory 1 GB DDR3
    Storage
    Drive Bays 4
    Compatible Drive Types 3.5" SATA(III) / SATA(II) HDD
    2.5" SATA(III) / SATA(II) HDD
    2.5" SATA(III) / SATA(II) SSD
    Max Internal Capacity 24 TB (6 TB HDD X 4) (Capacity may vary by RAID types)
    Hot Swappable Drives Yes
    External Ports
    LAN Ports 1 x Gigabit LAN port
    USB 2.0 Port 3
    USB 3.0 Port 2
    File System
    Internal Drives EXT4
    External Drives EXT4, EXT3, FAT, NTFS, HFS+
    Other Specifications
    Wake on LAN/WAN Yes
    System Fan 2 - 92 x 92 mm pieces
    Wireless Support (Dongle) Yes
    Noise Level 20.0 dB(A)
    Power Recovery Yes
    Scheduled Power On/Off Yes
    Power Supply 90 W
    AC Input Voltage 100 to 240 VAC
    Power Frequency 50/60 HZ, single phase
    Power Consumption 41.95 W (access)
    17.30 W (HDD hibernation)
    Temperature & Humidity
    Operating Temperature 40 to 95°F / 5 to 35°C
    Non-Operating Temperature -5 to 140°F / -20 to 60°C
    Relative Humidity 5 to 95% RH
    Maximum Operating Altitude 6,500 ft / 1,981 m
    Certification and Compliance
    Certifications FCC Class B
    CE Class B
    BSMI Class B
    DSM Specifications
    Max File System Size 16 TB
    Max Internal Volume Number 256
    Max iSCSI Target Number 10
    Max iSCSI LUN Number 10
    Supported RAID Type Synology Hybrid RAID, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
    RAID Migration Basic to RAID 1
    Basic to RAID 5
    RAID 1 to RAID 5
    RAID 5 to RAID 6
    Volume Expansion with Larger HDDs Synology Hybrid RAID
    RAID 1
    RAID 5
    RAID 6
    Volume Expansion by Adding a HDD Synology Hybrid RAID
    RAID 5
    JBOD
    Global Hot Spare Supported RAID Type Synology Hybrid RAID
    RAID 1
    RAID 5
    SSD TRIM Yes
    Max User Account 2,048
    Max Groups 256
    Max Shared Folder 256
    Max Shared Folder Sync Tasks 4
    Max Concurrent CIFS/AFP/FTP Connections 256
    Windows Access Control List (ACL) Yes
    Syslog Events per Second 400
    Dimensions & Weight
    Dimensions 6.5 x 8.0 x 9.2" / 165.0 x 203.0 x 233.2 mm
    Weight 4.48 lb / 2.03 kg
    Packaging Info
    Box Dimensions (LxWxH) 11.4 x 10.4 x 9.6"
  • 4 x HGST 3TB Deskstar 3.5" SATA Internal Hard Drive
    Configuration
    Capacity 3 TB
    Interface SATA 6 Gb/s
    Max areal density (Gbits/sq. in.) 446 / 425
    Performance
    Data Buffer 64MB
    Rotational Speed 7200 rpm
    Media Transfer Rate (Max.) 1638 / 1536 Mbits/s, max
    Interface Transfer Rate (Max) 600 MB/s
    Reliability
    Error Rate 1 in 1014 (non-recoverable, bits read)
    Load/Unload Cycles 600,000 (at 104°F / 40°C)
    Availability (hrs/day x days/wk) 24 x 7
    Power
    Power Requirement +5 V DC (+/-5%), (+12 V DC is +10%/-8%)
    Startup Current (A, max) (12 A, max +5 V, 2 A @ +12 V)
    Idle 6.9 W (average)
    Environmental Requirements
    Operating Temperature 43 to 140°F / 6 to 60°C
    Non-Operating Temperature -40 to 158°F / -40 to 70°C
    Operating Humidity 8 to 90% non-condensing
    Non-Operating Temperature 5 to 95% non-condensing
    Operating Shock 70 G (half-sine wave)
    Non-Operating Shock 300 G (half-sine wave, 2 ms)
    Operating Vibration 0.67 G (RMS 5 to 500 Hz, XYZ)
    Non-Operating Vibration 1.04 G (RMS 2 to 200 Hz, XYZ)
    Physical Specifications
    Dimensions (WxHxD) 4.0 (±0.00984) x 1.0 x 5.8" / 101.6 (±0.25) x 26.1 x 147.0 mm
    Weight 1.5 lb / 690 g
    Packaging Info
    Box Dimensions (LxWxH) 7.7 x 6.0 x 2.9"
The user manual for the Synology DiskStation DS415play 12TB (4 x 3TB) 4-Bay NAS Server can be downloaded in .pdf format if it did not come with your new network attached storage drives, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Synology users keep a unique electronic library for Synology network attached storage drivess, where you can use our link to download the user manual for the Synology DiskStation DS415play 12TB (4 x 3TB) 4-Bay NAS Server.

The user manual lists all of the functions of the Synology DiskStation DS415play 12TB (4 x 3TB) 4-Bay NAS Server, all the basic and advanced features and tells you how to use the network attached storage drives. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Synology service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Synology DiskStation DS415play 12TB (4 x 3TB) 4-Bay NAS Server. User manuals are also available on the Synology website under Computers & Solutions - Networking - Network Attached Storage Drives.
