User manual for the Tascam DP-32SD 32-Track Digital Portastudio DP-32SD
The user manual for the Tascam DP-32SD 32-Track Digital Portastudio DP-32SD provides
necessary instructions for the proper use of the product Pro Audio - Recording - Digital Recorders & Players.

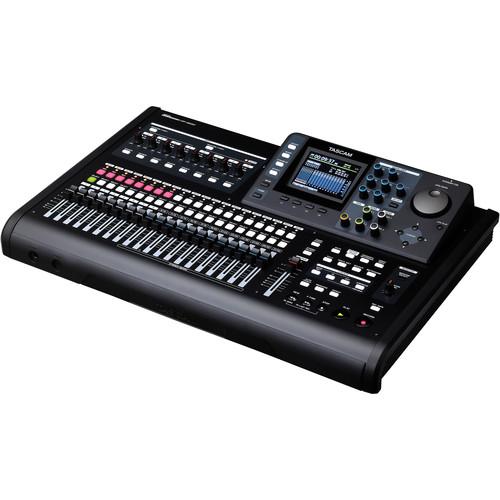

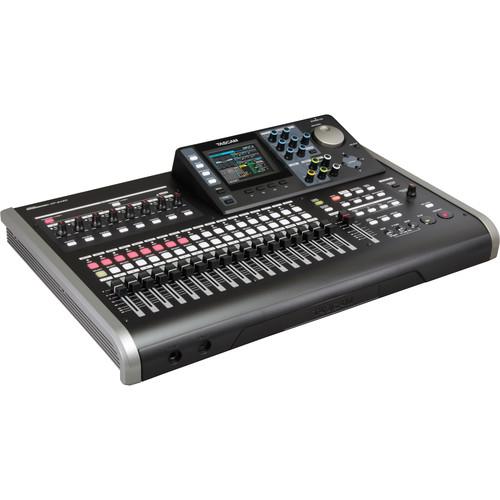

Allowing you to record hands-on without the need for a computer, the DP-32SD 32-Track Digital Portastudio from Tascam can track up to 8 sources simultaneously with support for up to 32 tracks on playback. It features 8 combo XLR/TRS mic preamplifier inputs, with the eighth input also supporting Hi-Z sources such as guitar and bass. For hands-on control of your mix, the unit has 21 total faders (including the master), as well as a variety of EQ, compression, and guitar-based effects for tweaking your mix.
The unit records directly to SD and SDHC cards. Additionally, you can export your tracks to an external computer via the unit's USB port. A power supply, 2 GB SD card, and a USB cable are included.
|
If you own a Tascam digital recorders & players and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Tascam DP-32SD 32-Track Digital Portastudio DP-32SD in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Tascam DP-32SD 32-Track Digital Portastudio DP-32SD:
| Playback Channels | 32 | | Recording Media | SD Card (512 MB to 2 GB)
SDHC Card (4 to 32 GB) | | File System | SD Card: FAT16
SDHC Card: FAT32 | | Inputs | Inputs A to H:
Connectors: Combo XLR/TRS connectors, (1: GND, 2: Hot, 3: Cold), balanced
Input Impedance: XLR: 2.4 kΩ TRS: 22 kΩ or more; Input H Set to Guitar: 1 MΩ
Nominal Input Level: XLR: -14 dBu; TRS: +4 dBu
Maximum Input Level: XLR: +2 dBu, TRS: +20 dBu | | Stereo Output | Connector: RCA pin jack, unbalanced
Output Impedance: 200 Ω
Nominal Output Level: -10 dBV
Maximum Output Level: +6 dBV | | Effect Sends | Connector: 1/4" (6.3 mm) TS phone jack, unbalanced
Output Impedance: 200 Ω
Nominal Output Level: -10 dBV
Maximum Output Level: +6 dBV | | Monitor Output | Connector: 1/4" (6.3 mm) TRS phone jack, balanced
Output Impedance: 200 Ω
Nominal Output Level: -2 dBV
Maximum Output Level: +14 dBV | | Headphones | Connector: 1/4" (6.3 mm) TRS phone jack
Maximum Output Level: 70 mW + 70 mW (THD+N 0.1% or less, 32 Ω loaded) | | USB | Connector: USB Mini-B type 4-pin
Format: USB 2.0 High-Speed mass-storage class | | Remote | Connector: 2.5mm TRS jack | | Power | Dedicated AC Adapter | | Power Consumption | 12 W (when supplying phantom power) | | Operating Temperature | 41 to 95° F (5 to 35° C) | | System Requirements | Windows: XP, Vista, 7, 8
CPU: Pentium 300 MHz or more
Memory: 128 MB or more
USB: USB 2.0
Mac: OS X 10.6 to 10.10
CPU: Power PC, iMac, G3, G4 266MHz or more
Memory: 64 MB or more
USB: USB 2.0 | | Frequency Response | 20 Hz to 20 kHz (+/-1 dB, input to stereo out/effect sends/monitor out) | | Signal to Noise Ratio | 90 dB or greater (input to stereo out/effect sends/monitor out) | | THD | 0.01% or less (input to stereo out/effect sends/monitor out) | | Dimensions (W x H x D) | 20.2 x 4.1 x 13.4" (514 x 104 x 340 mm) | | Weight | 13.67 lb (6.20 kg) | | Package Weight | 16.2 lb | | Box Dimensions (LxWxH) | 24.0 x 17.0 x 7.0" | |
