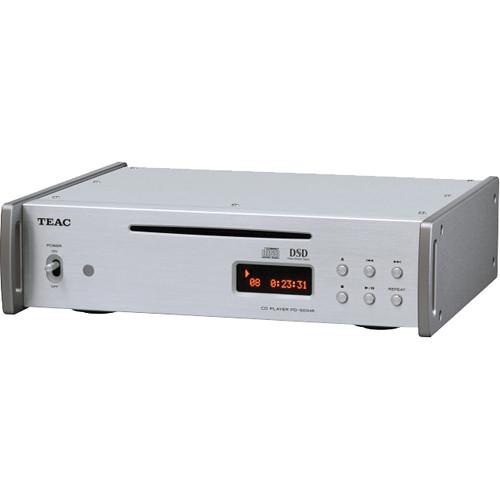

Teac CD Player with 5.6MHz DSD Playback (Silver) PD-501HR-S Teac CD Player with 5.6MHz DSD Playback (Silver) PD-501HR-S
Click to enlarge image

We recommend checking out our discussion threads on the Teac CD Player with 5.6MHz DSD Playback (Silver) PD-501HR-S, which address similar problems with connecting and setting up CD Players & Changers Teac.



User manual for the Teac CD Player with 5.6MHz DSD Playback (Silver) PD-501HR-S

The user manual for the Teac CD Player with 5.6MHz DSD Playback (Silver) PD-501HR-S provides necessary instructions for the proper use of the product TVs & Entertainment - Home Audio Components - CD Players & Changers.

Teac's CD Player with 5.6MHz DSD Playback in silver is a high-quality disc player with 5.6MHz DSD file native playback and up to 24 bit/192kHz PCM on recordable DVD discs. It features unique VACS (Vibration Acoustic Control Structure) to control vibrations, and separate power supplies for analog and digital sections.

The PD-501HR plays back DSD files recorded to DVD discs, eliminating the need for any PC. Conventional DVD writing software is capable of burning DSD discs, by writing dsf files to recordable DVD discs (DVD-R/-RW/+R/+RW). (SACD disc is not supported on the PD-501HR.)

Conventional DSD processors convert PCM files prior to converting to an analog signal. The PD-501HR employs a "Pure Mode", processing DSD into an analog signal directly. This lets you enjoy pure DSD sound that normal PCM-conversion can't.

The PD-501HR also supports PCM file (wav format) and up to 24bit/192kHz of high-resolution audio without the need for a PC connection.

While reading signals from a rating disc, vibrations may cause a read error and negatively affect the sound quality by missing some of the original data on the disc. To eliminate vibrations and reach perfect data reading, the PD-501HR employs a unique vibration control mechanism, VACS, for a smooth rotation. After dozens of evaluation tests the VACS instrument was chosen and fixed to the drive of the unit in order to achieve the best possible performance.

A celebrated CS4398 by Cirrus Logic is utilized to achieve 120dB of dynamic range. The CS4398 also employs un-damped volume control and a Mismatch Shaping Technology to eliminate distortion caused by capacitor mismatching. The field-proven and well-reputed JRC's NJM5532 operational amplifier has been applied to the analog circuits.

In order to reduce the signal paths throughout the circuits, each part has been carefully laid out on 6-layer glass-epoxy motherboards. This design reduces and simplifies the signal paths and helps improve the sound quality.

Separate power supply units for the digital and analog sections help prevent digital noise that can leak across the sections over the current. Schottky Barrier Diodes are also employed on the rectifier circuit to supply cleaner current by eliminating rectification noise.

The PD-501HR is a high performing CD player with 20-80kHz of frequency response, 116dB of S/N ratio, 118dB dynamic range, and 0.004% of THD on PCM playback. In keeping with the rest of the Reference 501 series, the PD-501HR also maintains low power consumption without sacrificing sound quality. It has a maximum 11W of power consumption and a selectable power saving mode and 0.1W of power consumption during standby.

Not only the front panel, but both side and top panels are made of aluminum and attached to a steel chassis. These heavy parts eliminate vibrations and allow all internal circuits to always perform under stable conditions. An A4-sized body allows users to place the unit in small spaces.

Spun metal finished transport buttons with short stroke and an easy-to-recognize toggle switch gives the user assured operation. Even the remote control is designed with an aluminum fascia on top.
If you own a Teac cd players & changers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Teac CD Player with 5.6MHz DSD Playback (Silver) PD-501HR-S in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Teac CD Player with 5.6MHz DSD Playback (Silver) PD-501HR-S:
Specifications
    Supported Media CD-DA, CD-ROM, CD-R, CD-RW (ISO9660 Level 1/2/Joilet), DVD-ROM, DVD-R, DVD-RW, DVD+R, DVD+RW (UDF, DVD-ROM Compatible)
    Supported Audio Formats CD-DA (Audio CD): 44.1kHz, 16bit
    PCM (WAV): 44.1kHz, 88.2kHz, 176.4kHz, 48kHz, 96kHz, 192kHz, 16/24-bit
    DSD: 2.8MHz, 5.6MHz
    Audio Performance CD-DA:
    Frequency Range 20Hz - 20kHz
    S/N ratio 116dB
    Distortion 0.0013%
    Dynamic Range 103dB

    PCM (192kHz/24-bit):
    Frequency Range 20Hz-80kHz
    S/N Ratio 116dB
    Distortion 0.0004%
    Dynamic Range 118dB

    DSD:
    Frequency Range 20Hz-80kHz
    S/N Ratio 116dB
    Distortion 0.0005%
    Dynamic Range 112dB
    Analog Output RCA:
    Connector RCA Pin Jack
    Output Impedance 100 ohms
    Nominal Output Voltage Level 0.32Vrms
    Digital Outputs The sampling frequency and bit rate used by the digital outputs (COAXIAL and OPTICAL) are the same as for the playback source. During DSD playback or CD/PCM playback in pure mode, however, nothing is output from the digital outputs.

    Coaxial:
    Connector RCA Pin Jack
    Output Impedance 75 ohms
    Output Level 0.5Vp-p

    Optical:
    Connector TOS-link
    Output Impedance -24.0 to -14.5 dBm peak
    Output Level 0.5Vp-p
    Operation Power: 120V AC, 60Hz
    Power Consumption 11W (Auto Power Save Standby Mode: 0.1W)
    Temperature Operating: +5˚C to +35˚C
    Storing: -20˚C to +55˚C
    Humidity 5% to 85% (No Condensation)
    Dimensions 11.4 x 3.2 x 9.6" (290 x 81.2 x 244 mm)
    Weight (9.37 lb) (4.2 kg)
    The user manual for the Teac CD Player with 5.6MHz DSD Playback (Silver) PD-501HR-S can be downloaded in .pdf format if it did not come with your new cd players & changers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Teac users keep a unique electronic library for Teac cd players & changerss, where you can use our link to download the user manual for the Teac CD Player with 5.6MHz DSD Playback (Silver) PD-501HR-S.

    The user manual lists all of the functions of the Teac CD Player with 5.6MHz DSD Playback (Silver) PD-501HR-S, all the basic and advanced features and tells you how to use the cd players & changers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Teac service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Teac CD Player with 5.6MHz DSD Playback (Silver) PD-501HR-S. User manuals are also available on the Teac website under TVs & Entertainment - Home Audio Components - CD Players & Changers.
