User manual Teac UD-301-B Dual Monaural Digital-To-Analog Converter UD-301-B

Operating instructions and pdf manual for use - Teac UD-301-B Dual Monaural Digital-To-Analog Converter UD-301-B User manual, User manual Teac UD-301-B Dual Monaural Digital-To-Analog Converter UD-301-B, Teac, UD-301-B, Dual, Monaural, Digital-To-A


User manual for Teac UD-301-B Dual Monaural Digital-To-Analog Converter UD-301-B

Teac UD-301-B Dual Monaural Digital-To-Analog Converter UD-301-B
  • Manufacturer: Teac
  • Basic description and contents of package
  • Product classification: Pro Audio - Computer Audio - AD/DA Converters
  • Safety instructions
  • Startup and operation of the ad/da converters
  • Tips for setting up your Teac
  • Settings and expert assistance
  • Contact Teac service
  • Troubleshooting
  • Warranty information
  • Price: 400 USD
We recommend checking out our discussion threads on the Teac UD-301-B Dual Monaural Digital-To-Analog Converter UD-301-B, which address similar problems with connecting and setting up AD/DA Converters Teac.



User manual for the Teac UD-301-B Dual Monaural Digital-To-Analog Converter UD-301-B

The user manual for the Teac UD-301-B Dual Monaural Digital-To-Analog Converter UD-301-B provides necessary instructions for the proper use of the product Pro Audio - Computer Audio - AD/DA Converters.

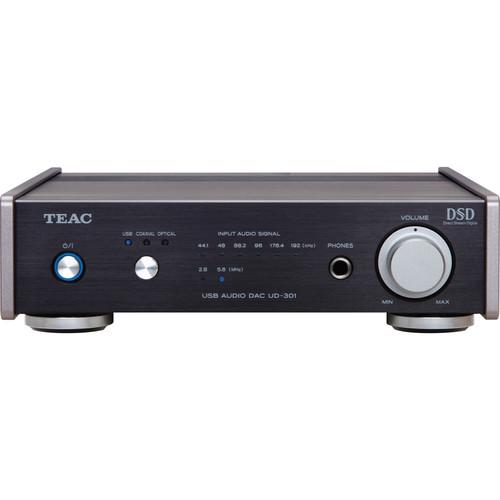

The black UD-301-B Dual Monaural USB Audio Digital-to-Analog Converter from Teac features USB input, which allows DSD native playback. Thanks to support for asynchronous transmission over USB, this digital-to-converter eliminates jitter and transmits clean digital audio signal.
If you own a Teac ad/da converters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Teac UD-301-B Dual Monaural Digital-To-Analog Converter UD-301-B in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Teac UD-301-B Dual Monaural Digital-To-Analog Converter UD-301-B:
D/A Converter
Model 2 x BurrBrown PCM1795
Conversion Up: 192 kHz (on/off selection)
Digital Audio Inputs
Connectors 1 x RCA jack (0.5 Vpp, 75 ohms), 1 x optical digital (-24 to -14.5 dBm peak), 1 x USB type B (USB 2.0, supports asynchronous mode)
Sampling Frequency DSD: 2.8 / 5.6 MHz (for USB)

PCM: USB and Coaxial: 32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
Optical: 32 / 44.1 / 48 / 88.2 / 96 kHz
Bit Rate 16 / 24 / 32-bit (32-bit only with USB input)
Analog Audio Outputs
Jacks 1 x XLR jack (2 channels), 1 x RCA jack (2 channels)
Output Impedance XLR: 200 ohms
RCA: 100 ohms
Maximum Output Level 1 kHz, full scale, 10 kOhms, XLR (0 dB Gain): +14 dB
RCA: 20 Vrms
Frequency Response 5 Hz to 55 KHz (-3dB) at 192 kHz sampling frequency
SNR 105 dB
THD 0.0015% (1 kHz) at 192 kHz sampling frequency
Headphone Output
Connector 6.3 mm (1/4") stereo phone jack
Maximum Output 100 mW + 100 mW (32 ohms with load with 0.1% distortion)
Nominal Impedance 8 to 600 ohms
Audio Performance
Frequency Response 5 Hz to 55 kHz (-3dB, in the case of 192 kHz sampling frequency)
SNR 105 dB
Distortion 0.0015% (1 kHz, in the case of 192 kHz sampling frequency)
Power
Power Supply USA/Canada: 120 VAC, 60 Hz
Power Consumption 10 W
General
Computer Requirements Compatible OS:
Windows Vista / 7 / 8 / 8.1 (32/64-bit), XP (32-bit)
Mac OS X Snow Leopard (10.6), OS X Lion (10.7), OS X Mountain Lion (10.8), OS X Mavericks (10.9)
Temperature Operating: 41 to 95°F (5 to 35°C)
Storage: -4 to 131°F (-20 to 55°C)
Operating Humidity 5 to 85% (non-condensing)
Dimensions (W x H x D) Approximately 8.5 x 2.4 x 9.4" (21.5 x 6.1 x 23.8 cm) including protrusions
Weight Approximately 4.4 lb (2.0 kg)
Packaging Info
Package Weight 6.5 lb
Box Dimensions (LxWxH) 15.0 x 13.4 x 6.3"
The user manual for the Teac UD-301-B Dual Monaural Digital-To-Analog Converter UD-301-B can be downloaded in .pdf format if it did not come with your new ad/da converters, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Teac users keep a unique electronic library for Teac ad/da converterss, where you can use our link to download the user manual for the Teac UD-301-B Dual Monaural Digital-To-Analog Converter UD-301-B.

The user manual lists all of the functions of the Teac UD-301-B Dual Monaural Digital-To-Analog Converter UD-301-B, all the basic and advanced features and tells you how to use the ad/da converters. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Teac service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Teac UD-301-B Dual Monaural Digital-To-Analog Converter UD-301-B. User manuals are also available on the Teac website under Pro Audio - Computer Audio - AD/DA Converters.
