User manual Telefunken AK-47 MKII Tube Microphone AK-47MKII

Operating instructions and pdf manual for use - Telefunken AK-47 MKII Tube Microphone AK-47MKII User manual, User manual Telefunken AK-47 MKII Tube Microphone AK-47MKII, Telefunken, AK-47, MKII, Tube, Microphone, AK-47MKII, Video


User manual for Telefunken AK-47 MKII Tube Microphone AK-47MKII

Telefunken  AK-47 MKII Tube Microphone AK-47MKII
  • Manufacturer: Telefunken
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Tube
  • Safety instructions
  • Startup and operation of the tube
  • Tips for setting up your Telefunken
  • Settings and expert assistance
  • Contact Telefunken service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Telefunken AK-47 MKII Tube Microphone AK-47MKII, which address similar problems with connecting and setting up Tube Telefunken.



User manual for the Telefunken AK-47 MKII Tube Microphone AK-47MKII

The user manual for the Telefunken AK-47 MKII Tube Microphone AK-47MKII provides necessary instructions for the proper use of the product Pro Audio - Recording - Tube.

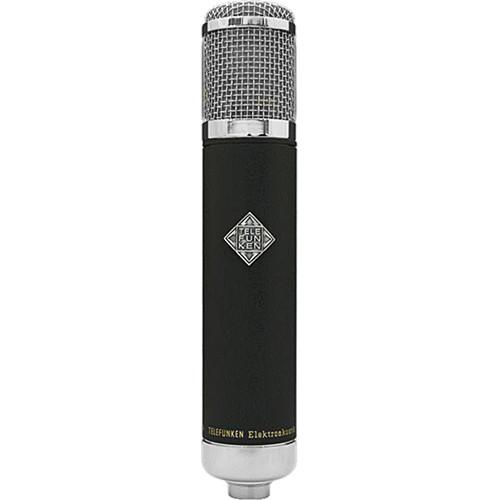

The AK-47 MKII Tube Microphone from Telefunken is a part of their acclaimed R-F-T series. The microphone features a large diaphragm condenser element and a custom output transformer that borrows from the historic BV8 transformer found in the vintage U-47 and U-48 microphones. The AK-47 MKII's tube stage features an NOS Telefunken EF-732 vacuum tube, delivering pristine audio fidelity, low noise and vintage analog warmth. The AK-47 MKII features omnidirectional, cardioid, and figure 8 polar patterns with 6 intermediate stages for each pattern.
If you own a Telefunken tube and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Telefunken AK-47 MKII Tube Microphone AK-47MKII in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Telefunken AK-47 MKII Tube Microphone AK-47MKII:
Specifications
    Operating Principle Pressure Gradient
    Transducer Condenser
    Tube Yes
    Polar Pattern Cardioid, Figure 8, Omnidirectional
    Frequency Range 20 Hz to 20 kHz
    Equivalent Noise Level 10.5 dB A-Weighted
    Maximum SPL 125 dB SPL
    Impedance 200 ohms
    Sensitivity 16.5 mV/PA
    Output Connectors 3-Pin XLR, 7-Pin XLR
    Operating Current Consumption 135 mA
    THD < 0.3%
    General
    Length 9.49" (241 mm)
    Diameter 1.75" (44.45 mm)
    Weight 26.98 oz (765 g)
    Packaging Info
    Package Weight 10.4 lb
    Box Dimensions (LxWxH) 19.4 x 11.9 x 5.7"
    Telefunken - AK-47 MKII Tube Microphone Demo
    The user manual for the Telefunken AK-47 MKII Tube Microphone AK-47MKII can be downloaded in .pdf format if it did not come with your new tube, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Telefunken users keep a unique electronic library for Telefunken tubes, where you can use our link to download the user manual for the Telefunken AK-47 MKII Tube Microphone AK-47MKII.

    The user manual lists all of the functions of the Telefunken AK-47 MKII Tube Microphone AK-47MKII, all the basic and advanced features and tells you how to use the tube. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Telefunken service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Telefunken AK-47 MKII Tube Microphone AK-47MKII. User manuals are also available on the Telefunken website under Pro Audio - Recording - Tube.



    Discussion Question and answer discussion forum concerning user instructions and resolving problems with the Telefunken AK-47 MKII Tube Microphone AK-47MKII

    Post new comment to Telefunken AK-47 MKII Tube Microphone AK-47MKII

    Subject: Telefunken Ak47 electic box
    Date: 24.10.2017 02:04:40Author: Fatih Sari
    I want only ask which one is „niere“ on the electric box
    Because i dont want superniere
    Reply
