User manual for the Teradek Cube 105 Encoder & 305 Decoder HD-SDI 10-0623

The user manual for the Teradek Cube 105 Encoder & 305 Decoder HD-SDI 10-0623 provides necessary instructions for the proper use of the product Professional Video - Camcorder & Camera Peripherals - Wireless Transmission Systems.

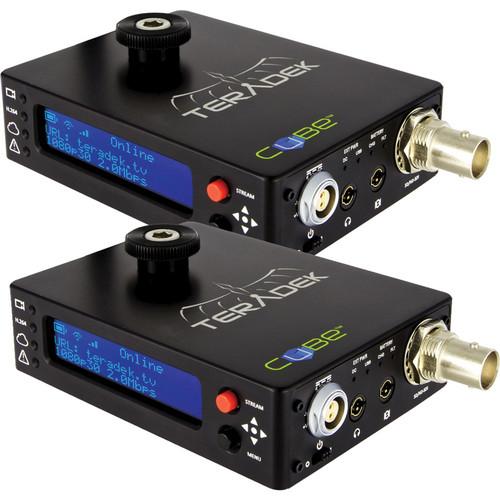

The Teradek Cube 105 Encoder & 305 Decoder HD-SDI with Ethernet is an HD video transmission solution that streams and receives by wired Ethernet. The encoder captures video with embedded audio from an SDI camera via an SDI input and streams the data to the decoder by a wired Ethernet connection between the two. The decoder outputs the data in the widely-used edit-ready H.264 codec to switchers, professional monitors and other equipment via an SDI output. H.264 is also a popular codec for uploading files to the internet in. Alternative to communicating by Ethernet, the Cubes can stream and receive by optional 3G/4G USB modems, for which both Cubes have a USB 2.0 port positioned right beside their Ethernet port.

The Cubes support resolutions up to 1080p/30, which is the top resolution that many common camcorders and DSLRs shoot in. The decoder moreover features a built-in scaler and can upscale any lower resolution to 1080p/30. At the same time as streaming HD, the encoder can also save proxy files for editing, or it can stream the proxy files and save the HD data to a microSD card. Both Cubes have a MicroSD card slot for saving captured/received data. An OLED display on the side of each Cube communicates transmission, storage and other information.

The Cubes power by AC power or optional Teradek/Swit 945, D54, or VGB6 2-pin Lemo batteries. One AC adapter is included. The encoder can be used camera-top by means of a 1/4" thread, and the decoder also features a 1/4" thread but can conveniently be used table-top.
If you own a Teradek wireless transmission systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Teradek Cube 105 Encoder & 305 Decoder HD-SDI 10-0623 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Teradek Cube 105 Encoder & 305 Decoder HD-SDI 10-0623:
Encoder
Video Input 1x HD/SD-SDI
Supported Resolutions 1080i 50/59.94/60
1080p 23.98/24/25/30
1080PsF 23.98/24/25
720p 50/59.94/60
576i
480i
Video Codec Compression algorithm: Baseline, Main and High Profile H.264
Main and Baseline profiles
Bit rate: 250 Kbps to 10 Mbps
Built-in video scaler and deinterlacer
Video Streaming Support Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
RTMP (Adobe Flash streaming)
HTTP live steaming

Optional:
Transport protocols: RTP, RTSP, RTP over HTTP, MPEG-TS
Point to Point (TCP or UDP), Multiple Unicast (UDP), or Multicast (UDP+IGMP)
Audio Audio compression: AAC-LC, MPEG layer 2
Embedded audio input
Analog line or mic in, adjustable gain
Headphone output, adjustable volume
Interfaces Feature-rich WebUI for configuration and control
OLED LCD screen with joystick navigation buttons
On/Off and Reset Switch
microSD
Powered USB 2.0 host port
Network Ethernet 10/100BASE-T
USB 3G/4G modem support (optional)
Power 2-pin Lemo input
USB charging
Nominal power consumption: 3 W
Nominal power consumption while charging: up to 10 W
Auxiliary power input: 6-28 V DC
Dimensions 2.5 x 3.5 x .9" (6.35 x 8.9 x 2.2 cm)
Weight .5 lb (.22 kg)
Decoder
Video Output 1x HD/SD-SDI
Supported Resolutions 1080i 50/59.94/60
1080p 23.98/24/25/30
1080PsF 23.98/24/25
720p 50/59.94/60
576i
480i
Video Codec Compression algorithm: Baseline, Main and High Profile H.264
Main and Baseline profiles
Bit rate: 250 Kbps to 10 Mbps
Built-in video scaler and deinterlacer
Video Streaming Support Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
RTMP (Adobe Flash streaming)
Audio Audio compression: AAC-LC, MPEG layer 2
Embedded audio output
Headphone jack
Interfaces Feature-rich WebUI for configuration and control
OLED LCD screen with joystick navigation buttons
On/Off and Reset Switch
MicroSD
Powered USB 2.0 host port
Network Ethernet 10/100BASE-T
USB 3G/4G modem support (optional)
Power 2-pin Lemo input
USB charging
Nominal power consumption: 3 W
Nominal power consumption while charging: up to 10 W
Auxiliary power input: 6-28 V DC
Dimensions 2.5 x 3.5 x .9" (6.35 x 8.9 x 2.2 cm)
Weight .5 lb (.22 kg)
Packaging Info
Package Weight 4.9 lb
Box Dimensions (LxWxH) 8.2 x 6.7 x 6.5"
The user manual for the Teradek Cube 105 Encoder & 305 Decoder HD-SDI 10-0623 can be downloaded in .pdf format if it did not come with your new wireless transmission systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Teradek users keep a unique electronic library for Teradek wireless transmission systemss, where you can use our link to download the user manual for the Teradek Cube 105 Encoder & 305 Decoder HD-SDI 10-0623.

The user manual lists all of the functions of the Teradek Cube 105 Encoder & 305 Decoder HD-SDI 10-0623, all the basic and advanced features and tells you how to use the wireless transmission systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Teradek service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Teradek Cube 105 Encoder & 305 Decoder HD-SDI 10-0623. User manuals are also available on the Teradek website under Professional Video - Camcorder & Camera Peripherals - Wireless Transmission Systems.
