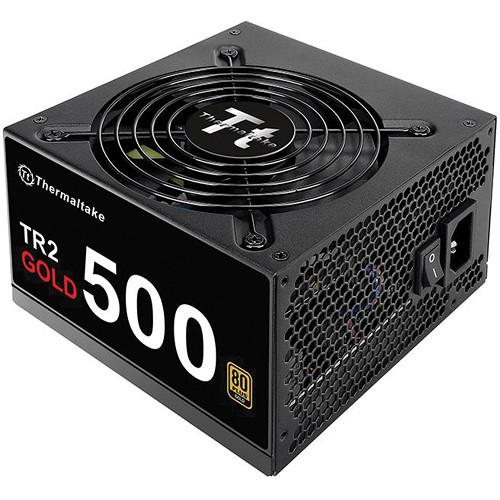

Thermaltake TR2 500 Watt 80 Plus Gold Power PS-TR2-0500NPCGUS-G
  • Manufacturer: Thermaltake
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Computer Components - Power Supplies
  • Safety instructions
  • Startup and operation of the power supplies
  • Tips for setting up your Thermaltake
  • Settings and expert assistance
  • Contact Thermaltake service
  • Troubleshooting
  • Warranty information
  • Price: 67 USD
We recommend checking out our discussion threads on the Thermaltake TR2 500 Watt 80 Plus Gold Power PS-TR2-0500NPCGUS-G, which address similar problems with connecting and setting up Power Supplies Thermaltake.



User manual for the Thermaltake TR2 500 Watt 80 Plus Gold Power PS-TR2-0500NPCGUS-G

The user manual for the Thermaltake TR2 500 Watt 80 Plus Gold Power PS-TR2-0500NPCGUS-G provides necessary instructions for the proper use of the product Computers & Solutions - Computer Components - Power Supplies.

Incorporating various choice components, the TR2 Gold 500 Power Supply from Thermaltake is rated at 500 watts and is designed to save energy through its high efficiency of up to 90%. The 500 is engineered to accommodate any mainstream build with the most demanding requirements, while an embedded intelligent cooling fan delivers suitable airflow at a low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.

The TR2 Gold 500 has many unique features, such as its 12cm cooling fan with intelligent RPM control for cool performance and quiet operation. Additionally, the cables utilized by the TR2 Gold 500 are all sleeved. Furthermore, the Haswell-ready power supply saves energy through its high energy efficiency of up to 90% and is 80 PLUS Gold certified. Premium-grade capacitors enable non-stop usage with stable and reliable performance designed to eliminate capacitor explosion and leakage. Finally, the power supply is equipped with powerful +12V rails, for providing consistent and reliable power under all types of system loading.
If you own a Thermaltake power supplies and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Thermaltake TR2 500 Watt 80 Plus Gold Power PS-TR2-0500NPCGUS-G in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Thermaltake TR2 500 Watt 80 Plus Gold Power PS-TR2-0500NPCGUS-G:
Specifications
    Connectors 1 x 20+4-Pin Main Power Connectors
    1 x 4+4-Pin ATX 12 V Connector
    4 4-Pin Peripheral Connector
    6 x 5-Pin SATA Connector
    2 x 6+2-Pin PCI-E Connector
    1 x 4-Pin Floppy Connector
    Type Intel ATX 12 V 2.3
    Maximum Output Capacity 500 W
    Power Factor Correction Active PFC
    Power Good Signal 100 to 500 ms
    Hold Up Time 16 ms (minimum) at full load at 230 VAC at 50 Hz input
    Input Current 8 A
    Input Frequency Range 50 to 60 Hz
    Input Voltage Range 100 to 240 VAC
    Maximum Output Current +3.3 V: 20 A
    +5 V: 20 A
    +12 V:41.7 A
    -12 V: 0.3 A
    +5 VSB: 3.0 A
    Maximum Output Power +3.3 V: 105 W
    +5 V: 105 W
    +12 V: 500 W
    -12 V: 3.6 W
    5 VSB: 15 W
    Over Voltage Protection Voltage Source: Protection point (maximum)
    3.3 V: 5.2 V
    5 V: 7.0 V
    12 V: 16.0 V
    Cooling System 4.7" (120 mm) Fan: 1500 rpm ± 10%
    Efficiency 87 to 92% efficiency at 20 to 100% load
    MTBF >100,000 hours minimum
    Operating Temperature 32 to 104°F (0 to 40°C)
    Storage Temperature -40 to 158°F (-40 to 70°C)
    Operating Humidity 20 to 90% (non-condensing)
    Storage Humidity 20 to 95% relative humidity (non-condensing)
    Safety Approvals UL/CUL, CE, FCC, TUV, and GOST
    Dimensions (H x W x D) 3.4 x 5.9 x 5.5" (86 x 150 x 140 mm)
    Weight Not supplied by manufacturer
    The user manual for the Thermaltake TR2 500 Watt 80 Plus Gold Power PS-TR2-0500NPCGUS-G can be downloaded in .pdf format if it did not come with your new power supplies, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Thermaltake users keep a unique electronic library for Thermaltake power suppliess, where you can use our link to download the user manual for the Thermaltake TR2 500 Watt 80 Plus Gold Power PS-TR2-0500NPCGUS-G.
