User manual Toshiba EHV8-240 Surveillix 8-Channel Embedded EHV8-240-4T

Operating instructions and pdf manual for use - Toshiba EHV8-240 Surveillix 8-Channel Embedded EHV8-240-4T User manual, User manual Toshiba EHV8-240 Surveillix 8-Channel Embedded EHV8-240-4T, Toshiba, EHV8-240, Surveillix, 8-Channel, Embedded, EHV8


User manual for Toshiba EHV8-240 Surveillix 8-Channel Embedded EHV8-240-4T

Toshiba EHV8-240 Surveillix 8-Channel Embedded EHV8-240-4T
  • Manufacturer: Toshiba
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Digital Video Recorders (DVRs)
  • Safety instructions
  • Startup and operation of the digital video recorders (dvrs)
  • Tips for setting up your Toshiba
  • Settings and expert assistance
  • Contact Toshiba service
  • Troubleshooting
  • Warranty information
  • Price: 670 USD
We recommend checking out our discussion threads on the Toshiba EHV8-240 Surveillix 8-Channel Embedded EHV8-240-4T, which address similar problems with connecting and setting up Digital Video Recorders (DVRs) Toshiba.



User manual for the Toshiba EHV8-240 Surveillix 8-Channel Embedded EHV8-240-4T

The user manual for the Toshiba EHV8-240 Surveillix 8-Channel Embedded EHV8-240-4T provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Digital Video Recorders (DVRs).

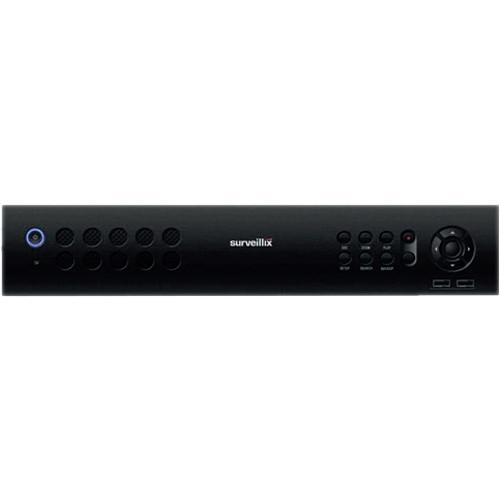

The Toshiba EHV8-240 Surveillix 8-Channel Embedded Hybrid Video Recorder (4 TB) enables analog and IP video recording for maximum flexibility in a cost effective solution. With up to 8 analog channels, 4 IP channels, and 120 fps at full CIF resolution, the HVR offers efficient and reliable video recording. This recorder is compatible with Surveillix SCS video management software and MySurveillix for remote access and multi-site deployments.
If you own a Toshiba digital video recorders (dvrs) and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Toshiba EHV8-240 Surveillix 8-Channel Embedded EHV8-240-4T in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Toshiba EHV8-240 Surveillix 8-Channel Embedded EHV8-240-4T:
Overview
Number of Channels 8x maximum
Video Channels Analog: 8x
IP: 4x
Local Display 1x VGA, 1x BNC
1x BNC (call monitor)

Local display shows analog video only. IP video accessed via browser or VMS software.

Frame Rate Analog: 120 fps @ CIF (8 channels)
90 fps @ CIF (with IP cameras)
Compression Format Analog & IP: H.264
Maximum Recording Throughput IP: 32 Mbps
Analog Recording Rate/Resolution 720 x 480: 60 fps (analog only)
720 x 480: 45 fps (with IP)
720 x 240: 120 fps (analog only)
720 x 240: 90 fps (with IP)
352 x 240: 240 fps (analog only)
352 x 240: 180 fps (with IP)
Live Viewing Rate (PPS) Analog: 240 fps
Storage
Storage Capacity 4 TB (included), Supports a maximum of up to 6 TB via 2 internal SATA HDD's (not included)
External Storage 1x eSATA (3 TB maximum, 10 Mbps speed)

eSATA port supports 1 drive only

Export Formats AVI, MPEG
Inputs/Outputs
Audio Inputs 4x analog
Audio Outputs 1x RCA Line Out
USB 2x USB 2.0
Alarm I/O 8x inputs
4x outputs
RS-232 9-pin D-Sub male
RS-485 Terminal block
Ethernet 1x Gigabit Ethernet
Remote
Browser Support Internet Explorer
Application Software Smartphone: iPhone/Android/Blackberry
Tablet: iPad/Android
Software VMS: Surveillix SCS
Other Features
Operating System Embedded Linux
ONVIF Version 1.02
Approvals FCC Class B, EN55022, EN61000, EN50130, ANSI C63, IEC 0950
Screen Live: 8x (analog channel, local display), 8x (client software)
Playback: 8x (client software)
User Interface Mouse & wireless IR remote
Power
Power Input 12 VDC, 5 A
Power Consumption 60 W
Environmental
Humidity 10 to 80% R.H
Operating Temperature 41 to 104°F (5 to 40°C)
Dimensions
Dimensions (H x W x D) 3.46 x 16.53 x 16.85" (87.88 x 419.86 x 427.99 mm)
The user manual for the Toshiba EHV8-240 Surveillix 8-Channel Embedded EHV8-240-4T can be downloaded in .pdf format if it did not come with your new digital video recorders (dvrs), although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Toshiba users keep a unique electronic library for Toshiba digital video recorders (dvrs)s, where you can use our link to download the user manual for the Toshiba EHV8-240 Surveillix 8-Channel Embedded EHV8-240-4T.

The user manual lists all of the functions of the Toshiba EHV8-240 Surveillix 8-Channel Embedded EHV8-240-4T, all the basic and advanced features and tells you how to use the digital video recorders (dvrs). The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Toshiba service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Toshiba EHV8-240 Surveillix 8-Channel Embedded EHV8-240-4T. User manuals are also available on the Toshiba website under Surveillance - Surveillance Video - Digital Video Recorders (DVRs).
