User manual for the Toshiba EHV8-240 Surveillix 8-Channel Embedded EHV8-240-500

The user manual for the Toshiba EHV8-240 Surveillix 8-Channel Embedded EHV8-240-500 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Digital Video Recorders (DVRs).

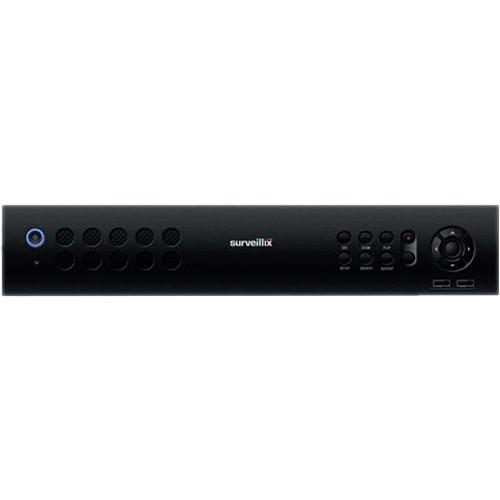

The Toshiba EHV8-240 Surveillix 8-Channel Embedded Hybrid Video Recorder (500 GB) enables analog and IP video recording for maximum flexibility in a cost effective solution. With up to 8 analog channels, 4 IP channels, and 120 fps at full CIF resolution, the HVR offers efficient and reliable video recording. This recorder is compatible with Surveillix SCS video management software and MySurveillix for remote access and multi-site deployments.
If you own a Toshiba digital video recorders (dvrs) and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Toshiba EHV8-240 Surveillix 8-Channel Embedded EHV8-240-500 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Toshiba EHV8-240 Surveillix 8-Channel Embedded EHV8-240-500:
Specifications
    Overview
    Number of Channels 8x maximum
    Video Channels Analog: 8x
    IP: 4x
    Local Display 1x VGA, 1x BNC
    1x BNC (call monitor)

    Local display shows analog video only. IP video accessed via browser or VMS software.

    Frame Rate Analog: 120 fps @ CIF (8 channels)
    90 fps @ CIF (with IP cameras)
    Compression Format Analog & IP: H.264
    Maximum Recording Throughput IP: 32 Mbps
    Analog Recording Rate/Resolution 720 x 480: 60 fps (analog only)
    720 x 480: 45 fps (with IP)
    720 x 240: 120 fps (analog only)
    720 x 240: 90 fps (with IP)
    352 x 240: 240 fps (analog only)
    352 x 240: 180 fps (with IP)
    Live Viewing Rate (PPS) Analog: 240 fps
    Storage
    Storage Capacity 500 GB (included), Supports a maximum of up to 6 TB via 2 internal SATA HDD's (not included)
    External Storage 1x eSATA (3 TB maximum, 10 Mbps speed)

    eSATA port supports 1 drive only

    Export Formats AVI, MPEG
    Inputs/Outputs
    Audio Inputs 4x analog
    Audio Outputs 1x RCA Line Out
    USB 2x USB 2.0
    Alarm I/O 8x inputs
    4x outputs
    RS-232 9-pin D-Sub male
    RS-485 Terminal block
    Ethernet 1x Gigabit Ethernet
    Remote
    Browser Support Internet Explorer
    Application Software Smartphone: iPhone/Android/Blackberry
    Tablet: iPad/Android
    Software VMS: Surveillix SCS
    Other Features
    Operating System Embedded Linux
    ONVIF Version 1.02
    Approvals FCC Class B, EN55022, EN61000, EN50130, ANSI C63, IEC 0950
    Screen Live: 8x (analog channel, local display), 8x (client software)
    Playback: 8x (client software)
    User Interface Mouse & wireless IR remote
    Power
    Power Input 12 VDC, 5 A
    Power Consumption 60 W
    Environmental
    Humidity 10 to 80% R.H
    Operating Temperature 41 to 104°F (5 to 40°C)
    Dimensions
    Dimensions (H x W x D) 3.46 x 16.53 x 16.85" (87.88 x 419.86 x 427.99 mm)
