User manual Toshiba IK-WR14A IP Vandal Dome Camera with 1080p HD IK-WR14A

Operating instructions and pdf manual for use - Toshiba IK-WR14A IP Vandal Dome Camera with 1080p HD IK-WR14A User manual, User manual Toshiba IK-WR14A IP Vandal Dome Camera with 1080p HD IK-WR14A, Toshiba, IK-WR14A, IP, Vandal, Dome, Camera, with,


User manual for Toshiba IK-WR14A IP Vandal Dome Camera with 1080p HD IK-WR14A

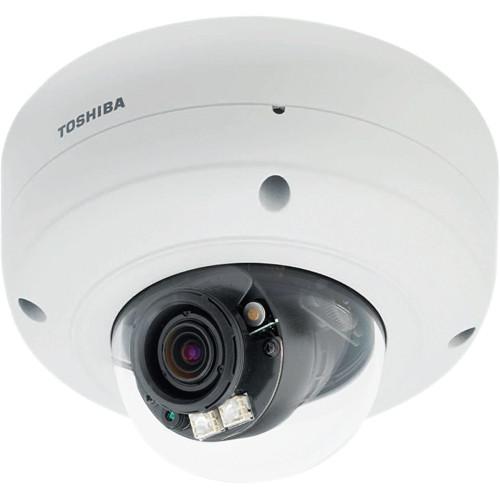

Toshiba IK-WR14A IP Vandal Dome Camera with 1080p HD IK-WR14A
  • Manufacturer: Toshiba
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wired IP Cameras
  • Safety instructions
  • Startup and operation of the wired ip cameras
  • Tips for setting up your Toshiba
  • Settings and expert assistance
  • Contact Toshiba service
  • Troubleshooting
  • Warranty information
  • Price: 597 USD
We recommend checking out our discussion threads on the Toshiba IK-WR14A IP Vandal Dome Camera with 1080p HD IK-WR14A, which address similar problems with connecting and setting up Wired IP Cameras Toshiba.



User manual for the Toshiba IK-WR14A IP Vandal Dome Camera with 1080p HD IK-WR14A

The user manual for the Toshiba IK-WR14A IP Vandal Dome Camera with 1080p HD IK-WR14A provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

The Toshiba IK-WR14A IP Vandal Dome Camera with 1080p HD Resolution provides a cost-effective monitoring solution with minimum upfront installation time. The Remote Zoom and One-Touch remote focus operation eliminate the need to physically adjust camera focus, thereby providing a close-up view for easy identification of remote objects.

With a 1/2.7" progressive scan CMOS sensor, the dome camera delivers clear and sharp images in Full HD resolution (1920 x 1080) at 30 fps. Its 3 to 9mm varifocal lens lets you adjust the camera's view, so that you can get what you desire – either more detailed images or a wider coverage.

To enhance its vision at night, the camera is equipped with 3 SRLEDs for capturing clear images even in complete darkness. With mechanical IR cut filter, the camera delivers images with good color rendition in areas with a minimum illumination of up to 0.04 lux at f/1.2.

Advanced features enable the camera to deliver detailed imagery in varying light. With Digital Wide Dynamic Range, the camera properly exposes scenes containing a mix of bright and dark regions, thus enabling you to identify details of objects in a high-contrast environment. Together with the camera's Backlight Compensation, Auto Gain Control, and White Balance features, the camera ensures a high degree of image visibility both day and night and in varying ambient lighting.

With its IP66- and IK10-rated housing, the vandal dome camera is strong enough to be installed indoor or outdoor, thereby ensuring uninterrupted surveillance in exposed and high-risk locations.
If you own a Toshiba wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Toshiba IK-WR14A IP Vandal Dome Camera with 1080p HD IK-WR14A in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Toshiba IK-WR14A IP Vandal Dome Camera with 1080p HD IK-WR14ADownload user manual for Toshiba IK-WR14A IP Vandal Dome Camera with 1080p HD IK-WR14A
(PDF file, 39.23 MB)
Additional parameters of the Toshiba IK-WR14A IP Vandal Dome Camera with 1080p HD IK-WR14A:
Image Sensor 1/2.7" progressive scan CMOS
Effective Pixels 1920 x 1080 (2 MP)
Lens Varifocal f=3 to 9mm
F=1.2 (wide), F=2.1 (tele)
Lens Type Remote zoom, remote focus
Zoom 3x optical, 4x digital
Angle of View Horizontal: 32 to 93°
Vertical: 24 to 68°
Min. Illumination 0.04 lux/F1.2 (Night mode, LED-off gain 100%, 1/30 sec)
0 lux with IR on
IR Illuminators 3 SRLEDs
IR Range 65' (20 m)
Features Day/night: Yes, IR cut filter
Wide dynamic range: Yes
White balance: AWB
Gain (AGC): Auto
BLC: Yes
Flickerless: Yes, 50/60 Hz selectable
Privacy mask: Yes
Tamper detection: Yes
Motion detection: Yes
Electric Shutter 1/5 to 1/40,000
Compression H.264, MPEG4, MJPEG
Resolutions 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768, 640 x 480, 320 x 240
Frame Rate Up to 30 fps at 1920 x 1080 (H.264)
Up to 30 fps at1920 x 1080 (MPEG4)
Up to 30 fps at 1920 x 1080 (MJPEG)
Video Streams 4 simultaneous
Composite Video Output NTSC and PAL
Audio Compression AAC, GSM, G.711
Audio In/Out MIC In (plug-in power 3.3V, 200k½) / line out (1 Vrms)
Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, and 802.1X
ONVIF Yes, ver. 1.02
Maximum User Access 10 clients
Security Multi level ID/Password, IP address filtering, HTTPS, 802.1x
Basic authentication Yes (Windows standard)
Bandwidth control QoS, CoS
Camera Set-up Program Installation Wizard
Plug-In Support Active X
Alarm Recording FTP, email, SD card
Ethernet Connector 10 Base-T/100 Base-TX, RJ45
Digital In/Out 1 in / 1 out
SD Card Slot Micro SD
Power Requirements 12 VDC ±10%, 24 VAC ±10% 60 Hz, 802.3af class 3 PoE
Power Consumption 12 VDC / 0.5 A, 24 VAC / 0.5A
Operation Temperature PoE: -22 to 122°F (-30 to 50°C)
12V DC and 24V AC: -13 to 122°F (-25 to 50°C)
Operating Humidity ~ 90%
OS Linux
Approvals FCC Class A, IC Class A, UL 60950-1, CSA C22.2 No. 60950-1
Vandal Resistant IK10
Environmental IP66
System Requirements Web browser support: Internet Explorer Ver. 8.0 or later
Supported OS: Windows XP, Vista Business, Windows 7 professional
Dimensions (HxD) 6.8 x 4.5" (173 x 115 mm)
Weight 2.98 lb (1.35 kg)
Packaging Info
Package Weight 5.05 lb
Box Dimensions (LxWxH) 11.6 x 8.4 x 7.2"
The user manual for the Toshiba IK-WR14A IP Vandal Dome Camera with 1080p HD IK-WR14A can be downloaded in .pdf format if it did not come with your new wired ip cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Toshiba users keep a unique electronic library for Toshiba wired ip camerass, where you can use our link to download the user manual for the Toshiba IK-WR14A IP Vandal Dome Camera with 1080p HD IK-WR14A.

The user manual lists all of the functions of the Toshiba IK-WR14A IP Vandal Dome Camera with 1080p HD IK-WR14A, all the basic and advanced features and tells you how to use the wired ip cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Toshiba service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Toshiba IK-WR14A IP Vandal Dome Camera with 1080p HD IK-WR14A. User manuals are also available on the Toshiba website under Surveillance - Surveillance Video - Wired IP Cameras.
