User manual Toyo-View 810GII 8x10 View Camera 180-226

Operating instructions and pdf manual for use - Toyo-View 810GII 8x10 View Camera 180-226 User manual, User manual Toyo-View 810GII 8x10 View Camera 180-226, Toyo-View, 810GII, 8x10, View, Camera, 180-226, Video


User manual for Toyo-View 810GII 8x10 View Camera 180-226

Toyo-View  810GII 8x10 View Camera 180-226
  • Manufacturer: Toyo-View
  • Basic description and contents of package
  • Product classification: Photography - Film Cameras - Large Format Cameras
  • Safety instructions
  • Startup and operation of the large format cameras
  • Tips for setting up your Toyo-View
  • Settings and expert assistance
  • Contact Toyo-View service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Toyo-View 810GII 8x10 View Camera 180-226, which address similar problems with connecting and setting up Large Format Cameras Toyo-View.



User manual for the Toyo-View 810GII 8x10 View Camera 180-226

The user manual for the Toyo-View 810GII 8x10 View Camera 180-226 provides necessary instructions for the proper use of the product Photography - Film Cameras - Large Format Cameras.

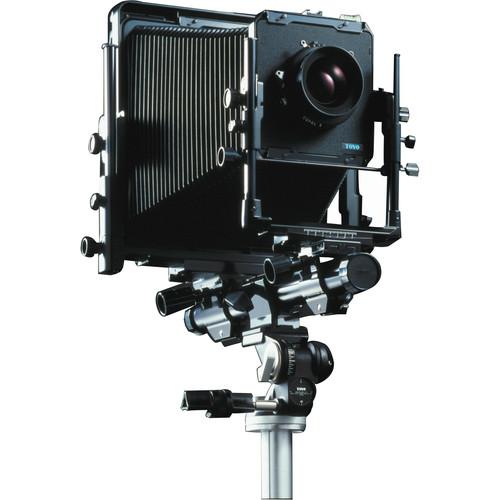

The big brother of the 45GII, the Toyo-View 810GII is known as one of the most functional and rigid 8x10's on the market. With a wide range of movements, the 810GII is an integral part of the Toyo G Series modular camera system. It's heavy-duty all-metal construction, easy to operate center tilt design, and precise all geared movements with dual locking system make it the industry standard for quality, function and value. The 810GII features Toyo's 8x10 reversible back with dual bail arm lifters, geared fine focus, geared rise, and geared shift in front and rear, and interchangeable bellows. The modular frame and rail design allows conversion to 5x7 or 4x5 with full compatibility of accessories. 4x5 and 5x7 reducing adapters are also available. A universal and comprehensive system which grows with your professional needs.
If you own a Toyo-View large format cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Toyo-View 810GII 8x10 View Camera 180-226 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Toyo-View 810GII 8x10 View Camera 180-226:
Tilts Front Axis: 45° Forward, 35° Backward
Rear Axis: 50° Forward, 50° Backward
Swings Front and Rear: 30° Left and Right
Rise & Fall Front (geared): 3.2" (85mm) rise, 2.2" (60mm) fall,
Rear (geared): 6.7" (170mm) rise
Shifts Front: 1.4" (35mm), Left, 1.4" (35mm) Right, geared
Rear: 2.35" (60mm) Left, 2.35" (60mm) Right, geared
Camera Back 8x10" Vertical/Horizontal quick-change type International Standard Back
Groundglass with acid etched grid-lines
Interchangeable Bellows Yes
Minimum Extension With Standard Board: 3.3" (85mm)
With Recessed Board: 1.8" (45mm)
Maximum Extension 9.8" (250mm) basic monorail + 9.8" (250mm) extension rail - included
Lensboard Toyo 158 x 158mm
Dimensions 11.5 x 18.5 x 16.8" (29.1 x 47.1 x 42.7 cm)
Weight 19.6 lbs (8.9 kg)
Packaging Info
Package Weight 26.27 lb
Box Dimensions (LxWxH) 20.5 x 19.5 x 13.5"
The user manual for the Toyo-View 810GII 8x10 View Camera 180-226 can be downloaded in .pdf format if it did not come with your new large format cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Toyo-View users keep a unique electronic library for Toyo-View large format camerass, where you can use our link to download the user manual for the Toyo-View 810GII 8x10 View Camera 180-226.

The user manual lists all of the functions of the Toyo-View 810GII 8x10 View Camera 180-226, all the basic and advanced features and tells you how to use the large format cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Toyo-View service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Toyo-View 810GII 8x10 View Camera 180-226. User manuals are also available on the Toyo-View website under Photography - Film Cameras - Large Format Cameras.
