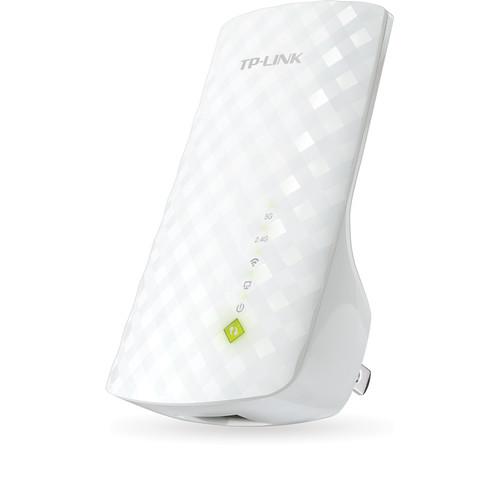

User manual for TP-Link AC750 Wi-Fi Range Extender RE200
Overall Rating: 4.0
80% of respondents would recommend this to a friend.
- Manufacturer: TP-Link
- Basic description and contents of package
- Product classification: Computers & Solutions - Networking - Wireless Range Extenders
- Safety instructions
- Startup and operation of the wireless range extenders
- Tips for setting up your TP-Link
- Settings and expert assistance
- Contact TP-Link service
- Troubleshooting
- Warranty information
- Price: 40 USD
|
We recommend checking out our discussion threads on the TP-Link AC750 Wi-Fi Range Extender RE200,
which address similar problems with connecting and setting up Wireless Range Extenders TP-Link.
|
User manual for the TP-Link AC750 Wi-Fi Range Extender RE200
The user manual for the TP-Link AC750 Wi-Fi Range Extender RE200 provides
necessary instructions for the proper use of the product Computers & Solutions - Networking - Wireless Range Extenders.
The AC750 Wi-Fi Range Extender from TP-link extends the Wi-Fi signals from an 802.11b/g/n or an 802.11ac router so you can connect your Wi-Fi enabled devices to the network in previously unreachable places. This extender operates in the 2.4- and 5-GHz bands at 300 Mbps and 433 Mbps, respectively. It also features a high speed mode that limits device-to-extender connections and extender-to-router connections to different bands to help offer maximum performance.
You can quickly and easily set up the AC750 Wi-Fi Range extender by plugging it into a wall socket and pressing the Range Extender button. For wireless security, this extender can support your router's encryption standards of 64/128-bit WEP or WPA-PSK/WPA2-PSK so your network stays safe. Furthermore, it is equipped with an RJ-45 10/100 Ethernet port to let you use this extender as a wireless adapter to turn a wired device into a wireless one.
|
If you own a TP-Link wireless range extenders and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the TP-Link AC750 Wi-Fi Range Extender RE200 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the TP-Link AC750 Wi-Fi Range Extender RE200:
| Wireless Standards | IEEE 802.11ac
IEEE 802.11n
IEEE 802.11g
IEEE 802.11b | | Interface | 1 x RJ-45 10/100 Mbps Ethernet port | | Button | Range Extender
Reset | | Antenna | Internal | | Power Consumption | Approximately 6.5 W | | Frequency | 2.4 GHz
5 GHz | | Signal Rate | 5 GHz: Up to 433 Mbps
2.4 GHz: Up to 300 Mbps | | EIRP | < 20 dBm | | Receive Sensitivity | 2.4G
270 M: -70 dBm @10% PER
130 M: -70 dBm @10% PER
108 M: -73 dBm @10% PER
54 M: -75 dBm @10% PER
11 M: -86 dBm @8% PER
6 M: -92 dBm @10% PER
1 M: -94 dBm @8% PER
5G
390 M: -60 dBm @10% PER
29.3 M: -83 dBm @10% PER
180 M: -64 dBm @10% PER
13.5 M: -87 dBm @10% PER
78 M: -68 dBm @10% PER
6.5 M: -90 dBm @10% PER
54 M: -75 dBm @10% PER
6 M：-90 dBm @10% PER | | Wireless Modes | Range Extender | | Wireless Functions | WMM (Wi-Fi Multimedia)
Wireless Statistic
Domain Login Function | | Wireless Security | 64/128-bit WEP
WPA-PSK / WPA2-PSK | | Certification | CE
FCC
RoHS | | System Requirements | Microsoft Windows 8, 7, Vista, XP, 2000, NT, and 98 SE
Mac OS
NetWare
UNIX or Linux. | | Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -40 to 158°F / -40 to 70°C
Operating Humidity: 10 to 90% non-condensing
Storage Humidity: 5 to 90% non-condensing | | Dimensions (WxDxH) | 4.3 x 2.6 x 3.0" / 109.2 x 66.0 x 76.2 mm | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 6.2 x 4.0 x 3.2" | |
The user manual for the TP-Link AC750 Wi-Fi Range Extender RE200 can be downloaded in .pdf
format if it did not come with your new wireless range extenders, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other TP-Link users keep a unique electronic library
for TP-Link wireless range extenderss,
where you can use our link to download the user manual for the TP-Link AC750 Wi-Fi Range Extender RE200.
The user manual lists all of the functions of the TP-Link AC750 Wi-Fi Range Extender RE200,
all the basic and advanced features and tells you how to use the wireless range extenders.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from TP-Link service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the TP-Link AC750 Wi-Fi Range Extender RE200. User manuals are also
available on the TP-Link website under Computers & Solutions - Networking - Wireless Range Extenders.
