User manual TP-Link Archer C2 AC750 Dual Band Wireless Gigabit ARCHER C2

Operating instructions and pdf manual for use - TP-Link Archer C2 AC750 Dual Band Wireless Gigabit ARCHER C2 User manual, User manual TP-Link Archer C2 AC750 Dual Band Wireless Gigabit ARCHER C2, TP-Link, Archer, C2, AC750, Dual, Band, Wireless, Gi

User manual for TP-Link Archer C2 AC750 Dual Band Wireless Gigabit ARCHER C2

Overall rating 3.0
Overall Rating: 3.0

60% of respondents would recommend this to a friend.

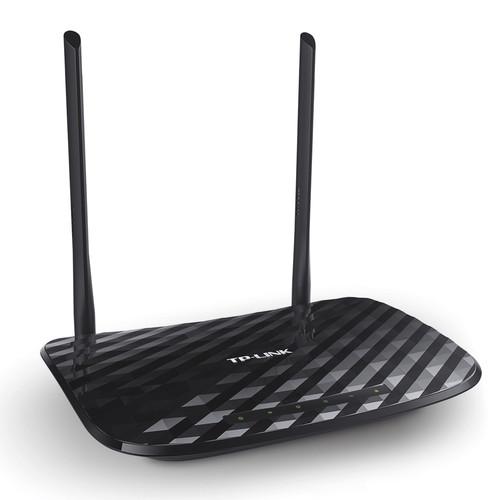

TP-Link Archer C2 AC750 Dual Band Wireless Gigabit ARCHER C2
  • Manufacturer: TP-Link
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Networking - Wireless Routers
  • Safety instructions
  • Startup and operation of the wireless routers
  • Tips for setting up your TP-Link
  • Settings and expert assistance
  • Contact TP-Link service
  • Troubleshooting
  • Warranty information
  • Price: 54 USD
We recommend checking out our discussion threads on the TP-Link Archer C2 AC750 Dual Band Wireless Gigabit ARCHER C2, which address similar problems with connecting and setting up Wireless Routers TP-Link.


User manual for the TP-Link Archer C2 AC750 Dual Band Wireless Gigabit ARCHER C2

The user manual for the TP-Link Archer C2 AC750 Dual Band Wireless Gigabit ARCHER C2 provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Wireless Routers.

Connect devices to either the 2.4 GHz or 5 GHz frequency with the Archer C2 AC750 Dual Band Wireless Gigabit Router from TP-Link. Dual band functionality allows you to prioritize which devices connect to which frequencies based upon how much bandwidth they require.

Along with dual band connectivity, this router is compatible with IEEE 802.11a/b/g/n/ac network standards. The 802.11ac 5 GHz band offers a maximum data transfer rate of 433 Mbps while the 802.11n 2.4 GHz band offers a maximum data transfer rate of 300 Mbps. Whichever wireless connection is used, all transmissions are kept secure through the use of 64/128-bit WEP, WPA/WPA2, and WPA-PSK/WPA2-PSK encryption standards.

For a fast, reliable wired connection the Archer C2 comes equipped with four Gigabit Ethernet LAN ports and one Gigabit Ethernet WAN port. You can also connect USB compatible peripherals to the USB 2.0 port located on the back of the router. Once connected, the USB device becomes accessible to users throughout the network.
If you own a TP-Link wireless routers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the TP-Link Archer C2 AC750 Dual Band Wireless Gigabit ARCHER C2 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for TP-Link Archer C2 AC750 Dual Band Wireless Gigabit ARCHER C2Download user manual for TP-Link Archer C2 AC750 Dual Band Wireless Gigabit ARCHER C2
(PDF file, 2.99 MB)
Additional parameters of the TP-Link Archer C2 AC750 Dual Band Wireless Gigabit ARCHER C2:
Specifications
    Hardware Specification
    Interface 4 x 10/100/1000 Mbps LAN ports
    1 x 10/100/1000 Mbps WAN port
    1 x USB 2.0 port
    Buttons WPS/Reset Button
    Wireless On/Off Switch
    Power On/Off Button
    External Power Supply 12 V DC / 1.5 A
    Antenna Type 2 x dual band detachable antennas (RP-SMA)
    Wireless Specifications
    Wireless Standards IEEE 802.11ac/n/a @ 5 GHz
    IEEE 802.11b/g/n @ 2.4 GHz
    Frequency 2.4 GHz and 5 GHz
    Signal Rate 5 GHz: Up to 433 Mbps
    2.4 GHz: Up to 300 Mbps
    EIRP <20 dBm (EIRP)
    Reception Sensitivity 5 GHz
    11a 6 Mbps: -91 dBm
    11a 54 Mbps: -74 dBm
    11ac HT20: -66 dBm
    11ac HT40: -64 dBm
    11ac HT80: -61 dBm
    11n HT20: -71 dBm
    11n HT40: -69 dBm

    2.4 GHz
    11g 54M: -74 dBm
    11n HT20: -72 dBm
    11n HT40: -69 dBm
    Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
    Wireless Security 64/128-bit WEP, WPA/WPA2, and WPA-PSK/WPA2-PSK encryption
    Software Features
    WAN Type Dynamic IP/Static IP/PPPoE/PPTP (Dual Access)/L2TP (Dual Access)/BigPond
    DHCP Server, Client, DHCP Client List, Address Reservation
    Quality of Service (QoS) WMM, Bandwidth Control
    Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ
    Dynamic DNS DynDns, Comexe, NO-IP
    VPN Pass-Through PPTP, L2TP, IPSec
    Access Control Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
    Firewall Security DoS, SPI Firewall
    IP Address Filtering/MAC Address Filtering/Domain Filtering
    IP and MAC Address Binding
    Protocols Supports IPv4 and IPv6
    USB Sharing Support Samba(Storage)/ FTP Server/Media Server/Printer Server
    Management Access Control
    Local Management
    Remote Management
    Guest Network 1 x 2.4 GHz guest network
    1 x 5 GHz guest network
    Other Specifications
    Certification CE, FCC, RoHS
    System Requirements Windows 8/7/Vista/XP, Mac OS or Linux-based operating system
    Operating Temperature 32 to 104°F / 0 to 40°C
    Storage Temperature -40 to 158°F / -40 to 70°C
    Operating Humidity 10 to 90% non-condensing
    Storage Humidity 5 to 90% non-condensing
    Dimensions & Weight
    Dimensions 9.1 x 5.7 x 1.4" / 230 x 144 x 35 mm
    Weight Not specified by manufacturer
    Packaging Info
    Package Weight 1.55 lb
    Box Dimensions (LxWxH) 11.3 x 8.8 x 2.7"
    The user manual for the TP-Link Archer C2 AC750 Dual Band Wireless Gigabit ARCHER C2 can be downloaded in .pdf format if it did not come with your new wireless routers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other TP-Link users keep a unique electronic library for TP-Link wireless routerss, where you can use our link to download the user manual for the TP-Link Archer C2 AC750 Dual Band Wireless Gigabit ARCHER C2.

    The user manual lists all of the functions of the TP-Link Archer C2 AC750 Dual Band Wireless Gigabit ARCHER C2, all the basic and advanced features and tells you how to use the wireless routers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from TP-Link service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the TP-Link Archer C2 AC750 Dual Band Wireless Gigabit ARCHER C2. User manuals are also available on the TP-Link website under Computers & Solutions - Networking - Wireless Routers.
