User manual TP-Link EAP110 300Mbps Wireless N Ceiling Mount Access EAP110

Operating instructions and pdf manual for use - TP-Link EAP110 300Mbps Wireless N Ceiling Mount Access EAP110 User manual, User manual TP-Link EAP110 300Mbps Wireless N Ceiling Mount Access EAP110, TP-Link, EAP110, 300Mbps, Wireless, N, Ceiling, Mo


User manual for TP-Link EAP110 300Mbps Wireless N Ceiling Mount Access EAP110

TP-Link EAP110 300Mbps Wireless N Ceiling Mount Access EAP110
  • Manufacturer: TP-Link
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Networking - Wireless Access Points
  • Safety instructions
  • Startup and operation of the wireless access points
  • Tips for setting up your TP-Link
  • Settings and expert assistance
  • Contact TP-Link service
  • Troubleshooting
  • Warranty information
  • Price: 50 USD
We recommend checking out our discussion threads on the TP-Link EAP110 300Mbps Wireless N Ceiling Mount Access EAP110, which address similar problems with connecting and setting up Wireless Access Points TP-Link.



User manual for the TP-Link EAP110 300Mbps Wireless N Ceiling Mount Access EAP110

The user manual for the TP-Link EAP110 300Mbps Wireless N Ceiling Mount Access EAP110 provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Wireless Access Points.

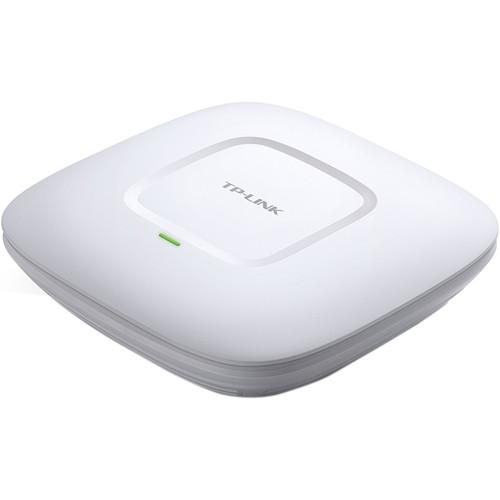

Extend the reach of your network without placing unsightly access points all over the office with the EAP110 300Mbps Wireless N Ceiling Mount Access Point from TP-Link. This access point features a ceiling mount design making it aesthetically pleasing whether mounted to the wall or the ceiling. Installation has also been simplified as the EAP series are PoE compatible eliminating the need to run additional power to this device. Once installed you can take advantage of features like EAP controller software to manage hundreds of EAP's and the Captive portal to implement an authentication method for Wi-Fi guests.
If you own a TP-Link wireless access points and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the TP-Link EAP110 300Mbps Wireless N Ceiling Mount Access EAP110 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the TP-Link EAP110 300Mbps Wireless N Ceiling Mount Access EAP110:
Specifications
Hardware Specifications
Interfaces 1 x Fast Ethernet (Support Passive PoE)
Button Reset, Power On/Off
Power Supply 24 VDC / 1 A Passive PoE supply
Power Consumption 7.7 W
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Antenna Type 2 x Omni directional internal antennas
Mounting Ceiling / wall mounting (kits included)
Security Lock Slot Kensington
Watch Dog Timer Yes
Wireless Specifications
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency 2.4 GHz
Signal Rate 11n: Up to 300 Mbps (dynamic)
11g: Up to 54 Mbps (dynamic)
11b: Up to 11 Mbps (dynamic)
Reception Sensitivity 2.4 GHz
300M: -71 dBm @ 10% PER
150M: -75 dBm @ 10% PER
54M: -78 dBm @ 10% PER
11M: -93 dBm @ 8% PER
6M: -92 dBm @ 10% PER
1M: -96 dBm @ 8% PER
Wireless Functions Multiple SSIDs (Up to 8 SSIDs)
Enable / disable wireless radio
Automatic channel assignment
Transmit power control ï¼Â¿adjust transmit power on dBmï¼Â¿
QoS (WMM)
Rate limit
Reboot schedule
Wireless schedule
Wireless statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
Transmit Power CE: <20 dbm
FCC: <26 dBm
Management
Controller EAP controller software
Email Alert Yes
LEDs On/off control
MAC Address MAC access control
SNMP v1, v2c
Logging System Logging
Local/Remote Syslog
Local/Remote Syslog
TELNET Yes
Web-based User Interface HTTP/HTTPS
Other Specifications
Certifications CE, FCC, RoHS
System Requirements Microsoft Windows 8/7/Vista/XP
Temperature & Humidity Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -40 to 158°F / -40 to 70°C
Operating Humidity: 10 to 90% non-condensing
Storage Humidity: 5 to 90% non-condensing
Dimensions & Weight
Dimensions 7.1 x 7.1 x 1.9" / 180.0 x 180.0 x 47.5 mm
Weight Not specified by manufacturer
Packaging Info
Package Weight 2.0 lb
Box Dimensions (LxWxH) 12.047 x 9.213 x 2.835"
The user manual for the TP-Link EAP110 300Mbps Wireless N Ceiling Mount Access EAP110 can be downloaded in .pdf format if it did not come with your new wireless access points, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other TP-Link users keep a unique electronic library for TP-Link wireless access pointss, where you can use our link to download the user manual for the TP-Link EAP110 300Mbps Wireless N Ceiling Mount Access EAP110.

The user manual lists all of the functions of the TP-Link EAP110 300Mbps Wireless N Ceiling Mount Access EAP110, all the basic and advanced features and tells you how to use the wireless access points. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from TP-Link service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the TP-Link EAP110 300Mbps Wireless N Ceiling Mount Access EAP110. User manuals are also available on the TP-Link website under Computers & Solutions - Networking - Wireless Access Points.
