User manual Transvideo 7" RainbowHD7 On-Board Monitor 917TS0098

Operating instructions and pdf manual for use - Transvideo 7" RainbowHD7 On-Board Monitor 917TS0098 User manual, User manual Transvideo 7" RainbowHD7 On-Board Monitor 917TS0098, Transvideo, 7, RainbowHD7, On-Board, Monitor, 917TS0098,


User manual for Transvideo 7" RainbowHD7 On-Board Monitor 917TS0098

Transvideo 7
  • Manufacturer: Transvideo
  • Basic description and contents of package
  • Product classification: Professional Video - Monitors - On Camera Monitors
  • Safety instructions
  • Startup and operation of the on camera monitors
  • Tips for setting up your Transvideo
  • Settings and expert assistance
  • Contact Transvideo service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Transvideo 7" RainbowHD7 On-Board Monitor 917TS0098, which address similar problems with connecting and setting up On Camera Monitors Transvideo.



User manual for the Transvideo 7" RainbowHD7 On-Board Monitor 917TS0098

The user manual for the Transvideo 7" RainbowHD7 On-Board Monitor 917TS0098 provides necessary instructions for the proper use of the product Professional Video - Monitors - On Camera Monitors.

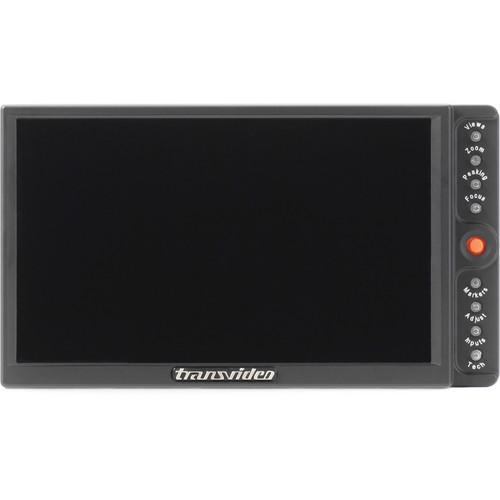

The Transvideo 7” RainbowHD7 On-Board Monitor is slim and rugged, with precision machined aluminum housing fully sealed (no holes, no noisy fans). It also features an anti reflective glass protecting the screen and high quality connectors.

A new concept has been introduced of working in the RainbowHD. Each job has its specific view, showing the image with a specific set of tools: no need to navigate in deep menus to find the right tools.

The screen measures 7” diagonal. The regular model features 450Nits, suggested for studios and interiors as well as low budget applications.

The RainbowHD7 includes Screen Protective Cover, Microfiber Cloth and Bag, 4.5GHz HDTV BNC Cable (1m), and Printed Documentation.

The 4.5GHz HDTV BNC Cable (1m) is a high performance 4.5GHz HDTV cable with certified HD BNC male connectors. Each cable is individually tested at 3GHz.
If you own a Transvideo on camera monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Transvideo 7" RainbowHD7 On-Board Monitor 917TS0098 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Transvideo 7" RainbowHD7 On-Board Monitor 917TS0098:
Video Input 1 x HD/SD SDI
1 x HDMI
1 x CVBS
Video Output 1 x HD/SD SDI (processed)
1 x CVBS (loop)
Supported Standards 1080p / 1080i / 1080psf
480p / 576p / 720p
SD SDI 525 / 625
NTSC (M, J, 443) / PAL (M, BG, N) / SECAM
Display Type Size: AMLCD, 7.0" (177.8 mm)
Pixels Picture zone 1024 x 560
White Point Calibration D65 ITU-R BT.709-5 & D56
Color Space Rec. ITU-R BT.709-5
Contrast Ratio 1000:1 (760:1 ANSI)
Brightness Maximum: 450 Nits
Viewing Angle Horizontal & Vertical: ±80°
Power 10 to 36 VDC through XLR4 or battery adapter (Anton-Bauer & V-mount)
Dimensions (W x H x D) 7.5 x 4.1 x 14.0" (187.0 x 105.0 x 35.0 mm)
Weight 23.2 oz (660.0 g)
Packaging Info
Package Weight 4.8 lb
Box Dimensions (LxWxH) 10.4 x 9.4 x 4.7"
The user manual for the Transvideo 7" RainbowHD7 On-Board Monitor 917TS0098 can be downloaded in .pdf format if it did not come with your new on camera monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Transvideo users keep a unique electronic library for Transvideo on camera monitorss, where you can use our link to download the user manual for the Transvideo 7" RainbowHD7 On-Board Monitor 917TS0098.

The user manual lists all of the functions of the Transvideo 7" RainbowHD7 On-Board Monitor 917TS0098, all the basic and advanced features and tells you how to use the on camera monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Transvideo service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Transvideo 7" RainbowHD7 On-Board Monitor 917TS0098. User manuals are also available on the Transvideo website under Professional Video - Monitors - On Camera Monitors.
