User manual for the TRENDnet 5-Port Hardened Industrial Gigabit PoE TI-PG541
The user manual for the TRENDnet 5-Port Hardened Industrial Gigabit PoE TI-PG541 provides
necessary instructions for the proper use of the product Computers & Solutions - Networking - Network Switches, Bridges & Hubs.

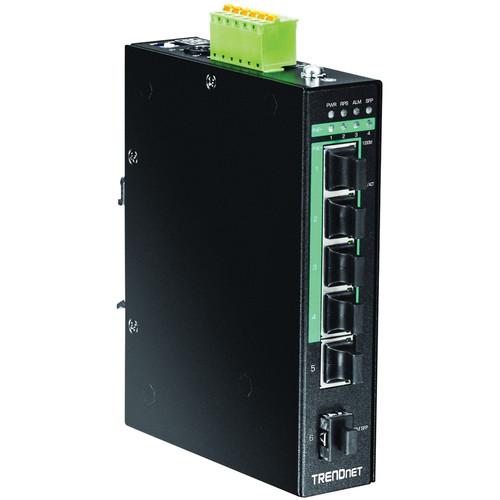

With an IP30 rated metal housing, the 5-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch from TRENDnet is capable of withstanding harsh industrial environments. This DIN-Rail Switch comes equipped with four Gigabit PoE+ Ethernet ports, one Gigabit Ethernet port, and one Gigabit SFP slot. The 120 Watt PoE+ power budget ensures each of the four Gigabit Ethernet ports receives up to 30 Watts of power allowing you to attach PoE-compatible devices directly to the switch. Additionally, you can take advantage of dual redundant power inputs featuring alarm output to alert you in the case of a power failure.
|
If you own a TRENDnet network switches, bridges & hubs and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the TRENDnet 5-Port Hardened Industrial Gigabit PoE TI-PG541 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the TRENDnet 5-Port Hardened Industrial Gigabit PoE TI-PG541:
| Standards | IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3z
IEEE 802.3at
IEEE 802.3af
IEEE 802.3x | | Device Interface | 4 x Gigabit PoE+ ports
1 x Gigabit port
1 x Gigabit SFP slot
6-pin terminal block (removable)
DIP switch
DC power connector
LED indicators
Integrated DIN-Rail mount | | Data Transfer Rate | Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Gigabit: 2000 Mbps (full duplex)
SX/LX: 2000 Mbps (full duplex) | | Performance | Data RAM Buffer: 512 KB
Switching Fabric: 12 Gbps
MAC Address Table: 8 K entries
Jumbo Frame: 10 KB
Forwarding rate: 8.9 Mpps (64-byte packet size) | | Special Features | Full PoE+ power to each PoE+ port
Hardened components rated for extreme temperatures
Dual redundant power inputs
Alarm output triggered by power failure
Auto-Negotiation
Auto store and forward architecture
Automatic address learning and address aging
ESD 8 KV and Surge 6 KV protection | | Power Adapter (Sold Separately) | Input: 100 - 240 VAC, 50/60 Hz, 2 A
Output: 48 V DC, 3.34 A 160 watts max. | | Terminal Block | Input: PWR (Primary): 48 - 57 V DC
RPS (Redundant): 48 - 57 V | | Power Consumption | Min.: 10 Watts (standby)
Max.: 130 Watts
PoE budget: 120 Watts (max.) | | PoE | Up to 15.4 watts/port for PoE
Up to 30 watts/port for PoE+
PoE: pin 1, 2 for power + and pin 3, 6 for power - (mode A) | | Housing | IP30 metal case
Integrated DIN-rail mount
Grounding point
8 KV ESD protection
6 KV Surge protection | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | Max. 95% non-condensing | | Certifications | CE
FCC Shock (IEC 60068-2-27)
Freefall (IEC 60068-2-32)
Vibration (IEC 60068-2-6) | | Dimensions | 5.3 x 3.9 x 1.2" / 135 x 100 x 30 mm | | Weight | 1.2 lb / 500 g | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 9.2 x 7.3 x 2.5" | |
