User manual for TRENDnet TPL-308E Powerline 200 AV Nano Adapter TPL-308E
- Manufacturer: TRENDnet
- Basic description and contents of package
- Product classification: Computers & Solutions - Networking - Powerline Networking
- Safety instructions
- Startup and operation of the powerline networking
- Tips for setting up your TRENDnet
- Settings and expert assistance
- Contact TRENDnet service
- Troubleshooting
- Warranty information
- Price: 25 USD
|
We recommend checking out our discussion threads on the TRENDnet TPL-308E Powerline 200 AV Nano Adapter TPL-308E,
which address similar problems with connecting and setting up Powerline Networking TRENDnet.
|
User manual for the TRENDnet TPL-308E Powerline 200 AV Nano Adapter TPL-308E
The user manual for the TRENDnet TPL-308E Powerline 200 AV Nano Adapter TPL-308E provides
necessary instructions for the proper use of the product Computers & Solutions - Networking - Powerline Networking.

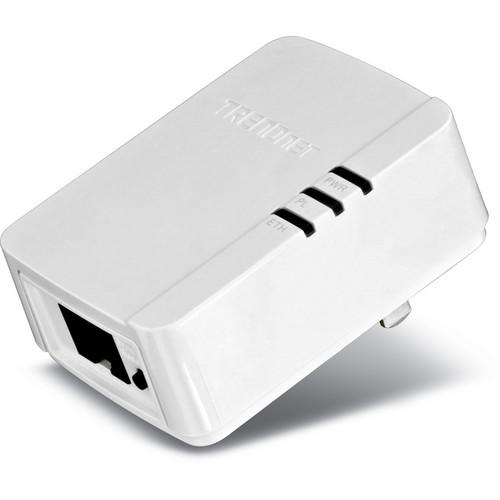

The TPL-308E Powerline 200 AV Nano Adapter from TRENDnet is a network adapter enabling you to connect directly to an Ethernet network via electrical outlets. This adapter comes equipped with one Auto-MDIX Ethernet port. With fast Ethernet speeds of up to 200 Mbps you can transfer large files quickly as well as stream movies, videos and music for a range of up to 984 ft. This compact adapter also allows you to see the status of your connection with integrated LED indicators.
Once configured, you can then secure your network with advanced 128-bit AES encryption helping to keep unwanted users out of your network. Along with advanced encryption standards, you also benefit from QoS (Quality of Service) support helping to streamline the transfer of packets and avoid dropped packets. As networking advances this adapter will meet the requirements of IPv6 (Internet Protocol Version 6) the latest revision of the Internet Protocol.
The TPL-308E is compatible with various versions of the Windows OS including Windows 8, Windows 7 (32/64-bit), Windows Vista (32/64-bit), and Windows XP (32/64-bit).
|
If you own a TRENDnet powerline networking and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the TRENDnet TPL-308E Powerline 200 AV Nano Adapter TPL-308E in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the TRENDnet TPL-308E Powerline 200 AV Nano Adapter TPL-308E:
| Standards | HomePlug AV
IEEE 1901
IEEE 802.3
IEEE 802.3x
IEEE 802.3u | | Interface | 1 x 10/100 Mbps Auto-MDIX port
1 x Sync / Reset button
Power Prong
North America Type B (NEMA 5-15) | | Frequency Band | 2~30 MHz | | Modulation | OFDM Symbol Modulation on link synchronization
1024/256/64/8 - QAM
QPSK
BPSK
ROBO Carrier | | Protocol | TDMA and CSMA/CA | | Speed | Powerline: Up to 200 Mbps
Ethernet: Up to 200 Mbps (Full Duplex mode) | | OS Compatibility | Windows 8, Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit) | | Nodes | Up to 4 (max) | | Overlapping Powerline Networks | Up to 4 (per electrical system) | | Coverage | Up to 984 ft (300 m) | | Security | 128-Bit AES (Advanced Encryption Standard) | | LED | Power (PWR)
Powerline (PL) Connection
• Best (Green)
• Better (Amber)
• Good (Red)
• No Connection (Off)
Ethernet (ETH) Connection
• Solid
• Blinking
• Off | | Buttons | Sync (3 sec.) / Reset (20 sec.) | | Power Source | 100~240 V AC, 50~60 Hz | | Consumption | Active mode: 1.75 watts (max.)
Standby mode: 0.56 watts (max.) | | Temperature | Operating: 32 to 104°F (0 to 40°C)
Storage: 14 to 131°F (-10 to 55°C) | | Humidity | Max 95% (non-condensing) | | Certifications | CE, FCC | | Dimensions (L x W x H) | 2.76 x 1.97 x 1.69" (70 x 50 x 43 mm) | | Weight | 2.2 oz (62.4 g) | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 5.5 x 5.1 x 2.8" | |
The user manual for the TRENDnet TPL-308E Powerline 200 AV Nano Adapter TPL-308E can be downloaded in .pdf
format if it did not come with your new powerline networking, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other TRENDnet users keep a unique electronic library
for TRENDnet powerline networkings,
where you can use our link to download the user manual for the TRENDnet TPL-308E Powerline 200 AV Nano Adapter TPL-308E.
The user manual lists all of the functions of the TRENDnet TPL-308E Powerline 200 AV Nano Adapter TPL-308E,
all the basic and advanced features and tells you how to use the powerline networking.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from TRENDnet service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the TRENDnet TPL-308E Powerline 200 AV Nano Adapter TPL-308E. User manuals are also
available on the TRENDnet website under Computers & Solutions - Networking - Powerline Networking.
