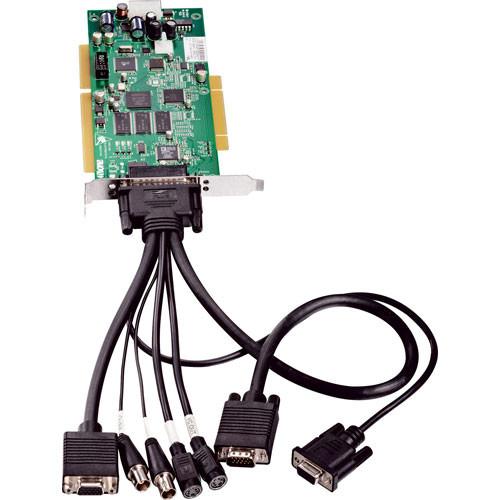

The C2-260 PCI/ISA Card Video Scaler from TV One is a PC card designed to perform up conversion from standard video formats to computer or HDTV signals. It can also manage cross conversion between PC and HD signals. It supports NTSC, PAL, and SECAM standards. Inputs include (2) composite, (2) YC/S-Video, or (1) RGBHV, YUV, or YPbPr component. Output is selectable as any computer resolution up to 2048x2048 at any vertical refresh rate and all HDTV resolutions up to 1080p. Moreover, this unit will work with both PC and Mac computers.

This unit's exclusive AutoSet feature automatically sizes and positions the computer image to fit exactly on the video screen. All settings can be stored in non-volatile memory and are retained even when power is turned off. This unit can be controlled via an infrared remote control or an RS-232 connection. Additionally, an on-screen display is available to assist in setup and a Windows control panel is provided and will work with most third-party control systems.

A variable zoom feature allows you to enlarge any part of the computer screen up to 10X. A variable shrink feature allows you to shrink the image to as little as 10% of its original size, ensuring that you can fit it on most displays. Advanced digital flicker elimination circuitry and a high sampling rate help to ensure a crisp picture. Moreover, full bandwidth chroma sampling ensures faithfully reproduced colors.

Other advanced features included genlock, chromakey, and lumakey. A key mode allows computer graphics to be keyed over an external composite of S-video signal and this image may be faded in or out. Because of its 4:4:4 sampling format, precise keying at the pixel level is also possible. A mix mode permits glitch-free mixing between computer image and external video and a PIP mode allows the computer input to be inset in a window over either of the video inputs.

This product features TV One's CORIO2 technology, a proprietary chipset that provides functionality for future upgrades. This video processing engine is entirely firmware based, meaning that when upgrades or updates become available, you only need to upgrade the firmware on your unit to benefit from this new technology.
If you own a TV One signal converters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the TV One C2-260 PCI/ISA Card Video Scaler C2-260 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the TV One C2-260 PCI/ISA Card Video Scaler C2-260:
Computer Input RGB, YPbPr, YUV: x1 via HD15
Format: Analog RGBHV, RGBS, RGsB, YPbPr
Sync TTL Level: 10K Ω, Pos or Neg
Termination Into: 75 Ω
R-G-B Level Range: 0.5-2.0 Vp-p
Scan Rate Detection: Automatic
PC Resolutions: Any up to 2048x2048
HDTV Resolutions: Any up to 1080p
Max Horiz Scan Rate: 150KHz
Computer Compatibility: PC, Macintosh
Video Input Television Standards: NTSC, PAL and SECAM
Composite Video: x2 via BNC on Breakout Cable
S-Video (YC): x2 via 4-Pin Mini-DIN on Breakout
Computer Outputs Format: Analog RGBHV, RGBS, RGsB, YPbPr
Connectors: x1 HD-15 Female
R-G-B Level: 0.7 Vp-p
PC Resolutions: Any up to 2048x2048
HDTV Resolutions: Any up to 1080p
Vertical Refresh Rate: Any to 250Hz
Operational Modes Key: Chromakey or Lumakey
Mix: PC to/from Video
PIP: Variable Window Size & Position
Advanced Features Size and Position: Automatic via AutoSet or Manual
Image Size: User-Definable Presets
Image Freeze: One Video Frame
Settings Memory: Non-Volatile
Zoom Range: Variable to 10X Zoom
Shrink Range: Variable to 10%
Image Mirroring: Horizontal and/or Vertical
Horizontal Filtering: Full Digital
Conversion Technology: Proprietary - CORIO2
Color Resolution: 24-bit (16.8 Million Colors)
Digital Sampling: 24-bit, 4:4:4 format
Firmware: Memory Flash, Upgradeable via RS-232
Video Decoder: 9-bit Digital
De-Interlacing: (NTSC-PAL) Pixel-level Motion Adaptive
Comb Filter: Decoding Adaptive
Film Mode: (NTSC) 3:2 Pulldown
Video Adjustments: Contrast, Brightness, Saturation, Hue (NTSC), R-G-B Levels
Controls Front panel, IR remote control, RS-232
Standards FCC, CE, CSA, RoHS
Operating Requirements Empty PC slot with disk drive connector for power
Power 12VDC @ 800ma via hard drive connector
Dimensions (WxD) 4 x 8" (100 x 204mm)
Weight 0.3 lbs (135g)
Packaging Info
Package Weight 2.1 lb
Box Dimensions (LxWxH) 10.1 x 7.5 x 5.0"
The user manual for the TV One C2-260 PCI/ISA Card Video Scaler C2-260 can be downloaded in .pdf format if it did not come with your new signal converters, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other TV One users keep a unique electronic library for TV One signal converterss, where you can use our link to download the user manual for the TV One C2-260 PCI/ISA Card Video Scaler C2-260.

The user manual lists all of the functions of the TV One C2-260 PCI/ISA Card Video Scaler C2-260, all the basic and advanced features and tells you how to use the signal converters. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from TV One service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the TV One C2-260 PCI/ISA Card Video Scaler C2-260. User manuals are also available on the TV One website under Professional Video - Signal Processing & Distribution - Signal Converters.
