User manual Ubiquiti Networks ER-X-SFP EdgeRouter X ER-X-SFP

Operating instructions and pdf manual for use - Ubiquiti Networks ER-X-SFP EdgeRouter X ER-X-SFP User manual, User manual Ubiquiti Networks ER-X-SFP EdgeRouter X ER-X-SFP, Ubiquiti, Networks, ER-X-SFP, EdgeRouter, X, ER-X-SFP, Video


User manual for Ubiquiti Networks ER-X-SFP EdgeRouter X ER-X-SFP

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
Ubiquiti Networks  ER-X-SFP EdgeRouter X ER-X-SFP
  • Manufacturer: Ubiquiti Networks
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Networking - Network Routers
  • Safety instructions
  • Startup and operation of the network routers
  • Tips for setting up your Ubiquiti Networks
  • Settings and expert assistance
  • Contact Ubiquiti Networks service
  • Troubleshooting
  • Warranty information
  • Price: 79 USD

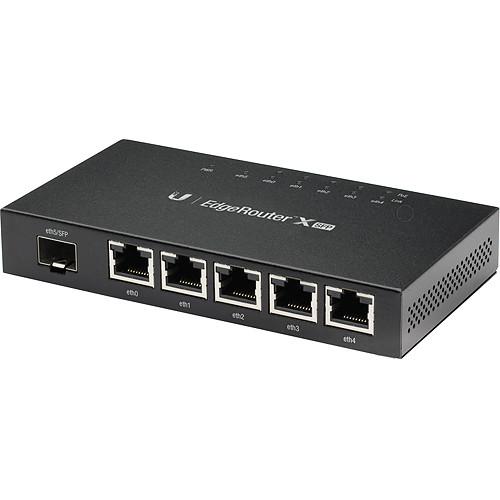

Ubiquiti Networks  ER-X-SFP EdgeRouter X ER-X-SFP Ubiquiti Networks  ER-X-SFP EdgeRouter X ER-X-SFP
Click to enlarge image

We recommend checking out our discussion threads on the Ubiquiti Networks ER-X-SFP EdgeRouter X ER-X-SFP, which address similar problems with connecting and setting up Network Routers Ubiquiti Networks.



User manual for the Ubiquiti Networks ER-X-SFP EdgeRouter X ER-X-SFP

The user manual for the Ubiquiti Networks ER-X-SFP EdgeRouter X ER-X-SFP provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Network Routers.

Take advantage of fast Gigabit Ethernet data speeds with the ER-X-SFP EdgeRouter X from Ubiquiti Networks. This router comes equipped with a total of five Gigabit Ethernet ports with passive PoE support and one Gigabit SFP port for backhaul applications. Each of these ports is configurable for line-rate, Layer-2 switching. Inside the router you will find a 880 MHz dual-core processor along with 256 MB of DDR3 RAM and 256 MB of NAND code storage.

The advanced hardware found inside this Ubiquiti Networks router allows you to leverage the power of PoE. Eliminate the need for power adapters and power the EdgeRouter X with 24 V passive PoE input. You can also utilize the passive PoE output feature to power a single airMAX device.
If you own a Ubiquiti Networks network routers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Ubiquiti Networks ER-X-SFP EdgeRouter X ER-X-SFP in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Ubiquiti Networks ER-X-SFP EdgeRouter X ER-X-SFP:
Hardware Specifications
Ethernet Networking Interfaces Data/PoE Output Port
5 x 10/100/1000 RJ45 ports
Data Port
1 x 100/1000 SFP port
PoE Switch PoE Out Voltage Range
22-24 VDC
Max. PoE Wattage Per Data/PoE Output Port
12 W (24 V)
Max. PoE Wattage Combined (All 5 Data Ports)
50 W
PoE Method
Passive
PoE Out-Voltage Range Max. Total PoE Output
50 W @ 24 V
PoE Output Passive
24 V (Pins 4, 5+; 7, 8-)
Power Consumption 5 W
Power Input 24 VDC, 2.5 A power adapter (included)
Power Supply External AC/DC adapter
Supported Voltage 9 to 26 VDC
Button Reset
LED 6 x Power, Link/Activity
5 x PoE
Processor Dual-core 880 MHz, MIPS1004Kc
System Memory 256 MB DDR3 RAM
Code Storage 256 MB NAND
Certifications CE, FCC, IC
Wall-Mount Yes
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature 14 to 113°F / -10 to 45°C
Operating Humidity 10 to 90% non-condensing
Software Specifications
Interface/Encapsulation Ethernet
802.1q VLAN
PPPoE
GRE
IP in IP
Bridging
Bonding (802.3ad)
Addressing Static IPv4/IPv6 addressing
DHCP/DHCPv6
Routing Static Routes
OSPF/OSPFv3
RIP/RIPng
BGP (with IPv6 Support)
IGMP Proxy
Security ACL-Based Firewall
Zone-Based Firewall
NAT
VPN IPSec Site-to-Site and Remote Access
OpenVPN Site-to-Site and Remote Access
PPTP Remote Access
L2TP Remote Access
PPTP Client
Services DHCP/DHCPv6 Server
DHCP/DHCPv6 Relay
Dynamic DNS
DNS Forwarding
VRRP
RADIUS Client
Web Caching
PPPoE Server
QoS FIFO
Stochastic Fairness Queueing
Random Early Detection
Token Bucket Filter
Deficit Round Robin
Hierarchical Token Bucket
Ingress Policing
Management Web UI
CLI (Console, SSH, Telnet)
SNMP
NetFlow
LLDP
NTP
UBNT Discovery Protocol
Logging
Dimensions & Weight
Dimensions 5.59 x 2.95 x 0.91" / 142 x 75 x 23 mm
Weight 7.58 oz / 215 g
Packaging Info
Package Weight 1.65 lb
Box Dimensions (LxWxH) 7.1 x 4.5 x 4.0"
The user manual for the Ubiquiti Networks ER-X-SFP EdgeRouter X ER-X-SFP can be downloaded in .pdf format if it did not come with your new network routers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Ubiquiti Networks users keep a unique electronic library for Ubiquiti Networks network routerss, where you can use our link to download the user manual for the Ubiquiti Networks ER-X-SFP EdgeRouter X ER-X-SFP.

The user manual lists all of the functions of the Ubiquiti Networks ER-X-SFP EdgeRouter X ER-X-SFP, all the basic and advanced features and tells you how to use the network routers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Ubiquiti Networks service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Ubiquiti Networks ER-X-SFP EdgeRouter X ER-X-SFP. User manuals are also available on the Ubiquiti Networks website under Computers & Solutions - Networking - Network Routers.
