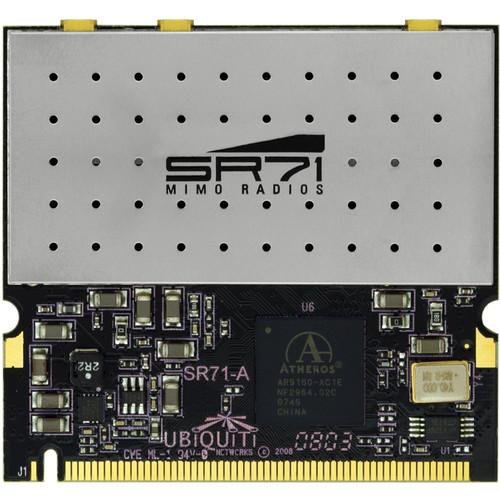

The SR71-A Outdoor 3x3 802.11n MIMO mini-PCI Module from Ubiquiti Networks contains an Atheros AR9160 chipset with DFS support, and features 802.11a/b/g/n network compatibility while remaining backwards compatible with legacy 802.11a/b/g (1-54 Mbps) and 802.11n (up to 300 Mbps) network standards. Installation is simple with a 32-bit mini-PCI type IIIA interface while three MMCX antenna ports support 3x3 MIMO operation. Once configured, you can initiate security protocols with 802.1i with AES-CCM and TKIP encryption, 802.1x, and 64/128/152-bit WEP encryption standards compatibility.
If you own a Ubiquiti Networks wireless adapters & cards and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Ubiquiti Networks SR71-A Outdoor 3x3 802.11n MIMO SR71-A in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Ubiquiti Networks SR71-A Outdoor 3x3 802.11n MIMO SR71-A:
Specifications
    Card Information
    Chipset Atheros AR9160 with DFS SUPPORT
    Network Standards Compatibility IEEE 802.11a/b/g/n
    Interface 32-bit mini-PCI Type IIIA
    Operating Voltage 3.3 VDC
    Antenna Connector 3 x MMCX for 3x3 MIMO Operation
    Temperature Range -40 to 176°F / -40 to 80°C
    Security 802.11i with AES-CCM & TKIP Encryption, 802.1x, 64/128/152-bit WEP
    Data Rates Legacy 802.11a/b/g (1-54 Mbps)
    802.11n (up to 300 Mbps)
    RoHS Compliance Yes
    Regulatory Approvals
    Wireless Approvals FCC , Industry Canada, CE
    Operating Frequency 2412-2462 MHz
    TX Power Specifications 11b/g
    DataRate Avg. TX Tolerance
    1-24 Mbps 24 dBm +/-2 dB
    36 Mbps 22 dBm +/-2 dB
    48 Mbps 20 dBm +/-2 dB
    54 Mbps 19 dBm +/-2 dB
    2.4 GHz 11n HT20
    DataRate Avg. TX Tolerance
    MCS0 24 dBm +/-2 dB
    MCS1 24 dBm +/-2 dB
    MCS2 24 dBm +/-2 dB
    MCS3 22 dBm +/-2 dB
    MCS4 22 dBm +/-2 dB
    MCS5 22 dBm +/-2 dB
    MCS6 18 dBm +/-2 dB
    MCS7 15 dBm +/-2 dB
    MCS8 24 dBm +/-2 dB
    MCS9 24 dBm +/-2 dB
    MCS10 22 dBm +/-2 dB
    MCS11 20 dBm +/-2 dB
    MCS12 20 dBm +/-2 dB
    MCS13 17 dBm +/-2 dB
    MCS14 17 dBm +/-2 dB
    MCS15 15 dBm +/-2 dB
    RX Specification 11b/g
    DataRate Sensitivity Tolerance
    1-24 Mbps -97 dBm +/-3 dB
    36 Mbps -90 dBm +/-3 dB
    48 Mbps -86 dBm +/-3 dB
    54 Mbps -84 dBm +/-3 dB
    2.4 GHz 11n HT20
    DataRate Sensitivity Tolerance
    MCS0 -97 dBm +/-3 dB
    MCS1 -96 dBm +/-3 dB
    MCS2 -93 dBm +/-3 dB
    MCS3 -91 dBm +/-3 dB
    MCS4 -87 dBm +/-3 dB
    MCS5 -84 dBm +/-3 dB
    MCS6 -78 dBm +/-3 dB
    MCS7 -75 dBm +/-3 dB
    MCS8 -96 dBm +/-3 dB
    MCS9 -94 dBm +/-3 dB
    MCS10 -91 dBm +/-3 dB
    MCS11 -88 dBm +/-3 dB
    MCS12 -85 dBm +/-3 dB
    MCS13 -80 dBm +/-3 dB
    MCS14 -79 dBm +/-3 dB
    MCS15 -76 dBm +/-3 dB
    Operating Frequency 5475-5825 MHz
    TX Power Specifications 11/a
    DataRate Avg. TX Tolerance
    1-24Mbps 24 dBm +/-2dB
    36Mbps 22 dBm +/-2 dB
    48Mbps 20 dBm +/-2 dB
    54Mbps 19 dBm +/-2 dB
    5 GHz 11n
    DataRate Avg. TX Tolerance
    MCS0 24 dBm +/-2 dB
    MCS1 24 dBm +/-2 dB
    MCS2 24 dBm +/-2 dB
    MCS3 22 dBm +/-2 dB
    MCS4 22 dBm +/-2 dB
    MCS5 22 dBm +/-2 dB
    MCS6 18 dBm +/-2 dB
    MCS7 15 dBm +/-2 dB
    MCS8 24 dBm +/-2 dB
    MCS9 24 dBm +/-2 dB
    MCS10 22 dBm +/-2 dB
    MCS11 20 dBm +/-2 dB
    MCS12 20 dBm +/-2 dB
    MCS13 17 dBm +/-2 dB
    MCS14 17 dBm +/-2 dB
    MCS15 15 dBm +/-2 dB
    RX Specification 11a
    DataRate Sensitivity Tolerance
    1-24Mbps -96 dBm +/-3 dB
    36Mbps -95 dBm +/-3 dB
    48Mbps -94 dBm +/-3 dB
    54Mbps -91 dBm +/-3 dB
    5 GHz 11n
    DataRate Sensitivity Tolerance
    MCS0 -96 dBm +/-3 dB
    MCS1 -95 dBm +/-3 dB
    MCS2 -92 dBm +/-3 dB
    MCS3 -90 dBm +/-3 dB
    MCS4 -86 dBm +/-3 dB
    MCS5 -83 dBm +/-3 dB
    MCS6 -77 dBm +/-3 dB
    MCS7 -74 dBm +/-3 dB
    MCS8 -95 dBm +/-3 dB
    MCS9 -93 dBm +/-3 dB
    MCS10 -90 dBm +/-3 dB
    MCS11 -87 dBm +/-3 dB
    MCS12 -84 dBm +/-3 dB
    MCS13 -79 dBm +/-3 dB
    MCS14 -78 dBm +/-3 dB
    MCS15 -75 dBm +/-3 dB
    Other Specifications
    Average Current Consumption 6 Mbps
    100% TX: 1.30 A
    Real-World (using large file FTP transfer): 0.75 A
    Idle: 0.30 A
    TCP/IP: 0.75 A

    MCSO
    100% TX: 1.25 A
    Real-World (using large file FTP transfer): 0.80 A
    Idle: 0.30 A
    TCP/IP: 0.80 A

    MCS15
    100% TX: 0.80 A
    Real-World (using large file FTP transfer): 0.35 A
    Idle: 0.30 A
    TCP/IP: 0.35 A
    Range Performance Indoor (antenna dependent): Greater than 984 ft / 300 m
    Outdoor (antenna dependent): Greater than 37 mi / 60 km
    Operating System Support UBIQUITI LiteStationX + AirOS
    Dimensions & Weight
    Dimensions Not specified by manufacturer
    Weight Not specified by manufacturer
    Packaging Info
    Package Weight 0.4 lb
    Box Dimensions (LxWxH) 2.5 x 2.3 x 0.3"
