User manual ULTRAMAX ULTRAPOWER UXDS-1 Digital Underwater Strobe UXDS-1-HED
Operating instructions and pdf manual for use - ULTRAMAX ULTRAPOWER UXDS-1 Digital Underwater Strobe UXDS-1-HED User manual, User manual ULTRAMAX ULTRAPOWER UXDS-1 Digital Underwater Strobe UXDS-1-HED, ULTRAMAX, ULTRAPOWER, UXDS-1, Digital, Underwa
User manual for ULTRAMAX ULTRAPOWER UXDS-1 Digital Underwater Strobe UXDS-1-HED
We recommend checking out our discussion threads on the ULTRAMAX ULTRAPOWER UXDS-1 Digital Underwater Strobe UXDS-1-HED,
which address similar problems with connecting and setting up Strobe Lights ULTRAMAX.
User manual for the ULTRAMAX ULTRAPOWER UXDS-1 Digital Underwater Strobe UXDS-1-HED
The user manual for the ULTRAMAX ULTRAPOWER UXDS-1 Digital Underwater Strobe UXDS-1-HED provides
necessary instructions for the proper use of the product Photography - Underwater Photography - Strobe Lights.

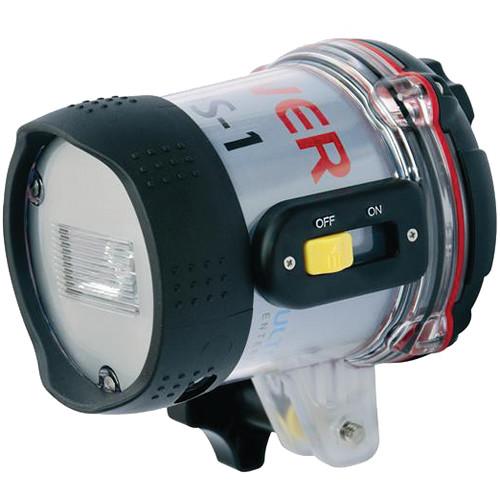

The ULTRAPOWER UXDS-1 Digital Underwater Strobe Head from ULTRAMAX is a flash with a depth rating of 180'. It offers a guide number of 65.6' at ISO 100 (on land), a power rating of approximately 25 Watt-sec, a coverage angle of 60°, and a daylight-balanced color temperature of 5700K. There are 5 pre-flash settings to synchronize with the built-in flash of most digital compact cameras. Choose from power/brightness output levels of 10%, 25%, 50%, and 100%. The strobe also has slave functionality, allowing it to be triggered by the firing of another flash. Color-coded LED indicators tell you the selected pre-flash and flash output modes. The UXDS-1 runs on 4 AA batteries, which are available separately and are housed in a compartment that's completely isolated from the electronics in order to prevent water damage to the strobe if the compartment is accidentally opened or batteries are changed when the unit is still wet from a dive. Additionally, the strobe has a durable housing made of corrosion-resistant polycarbonate.
If you own a ULTRAMAX strobe lights and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the ULTRAMAX ULTRAPOWER UXDS-1 Digital Underwater Strobe UXDS-1-HED in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ULTRAMAX ULTRAPOWER UXDS-1 Digital Underwater Strobe UXDS-1-HED:
Specifications
Configuration
Strobe head only
Guide No.
65.6' / 20 m at ISO 100 (on land)
Power Rating
Approx. 25 Watt-sec
Coverage Angle
60°
Depth Rating
180' / 55 m
Flash Modes
5 pre-flash settings Flash test Output levels: 10%, 25%, 50% and 100%
Exposure Control
Manual
Slave
Yes, twin sensors for wireless slave functionality
Color Temperature
5700 K
Recycle Time
7.0 sec between full-power flashes
Flashes
Approx. 120 per set of non-rechargeable batteries or per charge with rechargeables
Indicators
Color-coded LEDs indicate selected pre-flash and flash output modes Low power indicated by blinking LED
Connector
Wireless slave connection to camera's flash by default Optional fiber-optic connector and cable set available separately
Buoyancy
Positive
Power
4 AA rechargeable/non-rechargeable batteries (1.5 V or 1.2 V, not included) Magnetic on/off switch
The user manual for the ULTRAMAX ULTRAPOWER UXDS-1 Digital Underwater Strobe UXDS-1-HED can be downloaded in .pdf
format if it did not come with your new strobe lights, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other ULTRAMAX users keep a unique electronic library
for ULTRAMAX strobe lightss,
where you can use our link to download the user manual for the ULTRAMAX ULTRAPOWER UXDS-1 Digital Underwater Strobe UXDS-1-HED.
The user manual lists all of the functions of the ULTRAMAX ULTRAPOWER UXDS-1 Digital Underwater Strobe UXDS-1-HED,
all the basic and advanced features and tells you how to use the strobe lights.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from ULTRAMAX service.
